• Giant Trance X E+ 3
  • Giant Trance X E+ 3
1 2

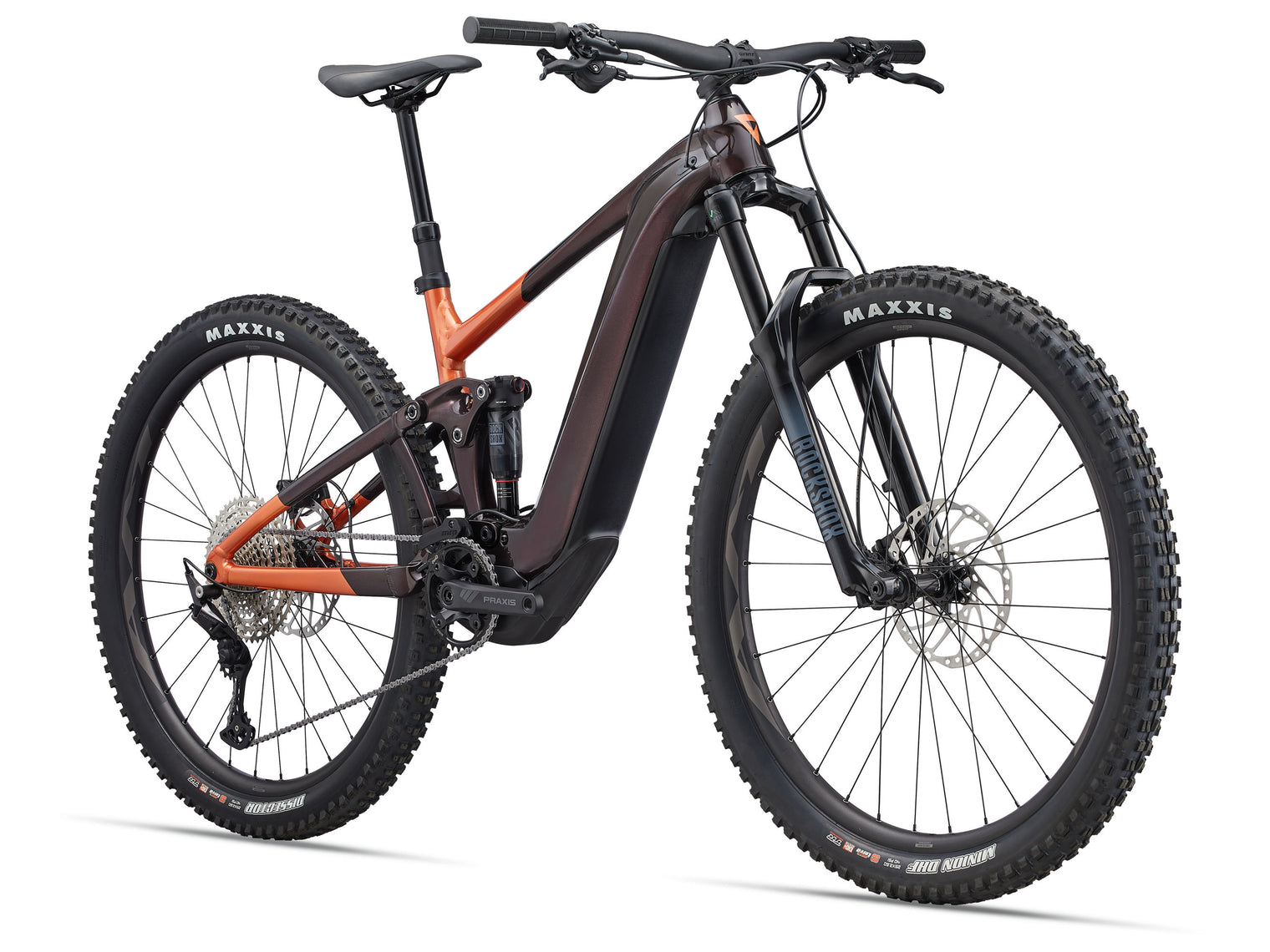

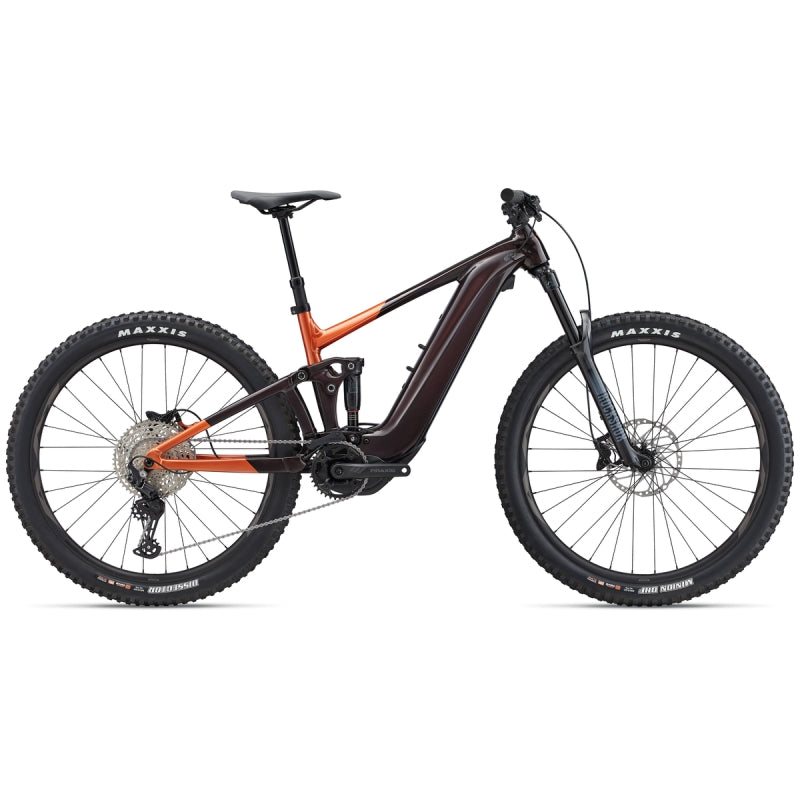

Giant Trance X E+ 3

$5,199.00 $7,999.00
Colour
Size
Loading locations...

Faster up the climbs, longer loops, and more singletrack fun on any given day. This powerful, smooth-riding e-bike lets you push your trail riding to the next level.

Key Performance Factors

Smooth, powerful support

The SyncDrive Pro motor delivers 85Nm of torque with tuneable assistance up to 400%. Smart Assist technology provides smooth, instant pedal assistance on steep climbs and at low speeds.

Trail-riding control

Optimised Maestro suspension with 29-inch wheels and 140mm rear / 150mm front travel offers stability and momentum for technical climbs and fast descents.

Adaptable handling

The flip chip lets you adjust head tube and seat tube angles and bottom bracket height for tailored handling — low for aggressive terrain or high for a more XC-oriented ride.

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

HYBRID CYCLING TECHNOLOGY

Hybrid Cycling Technology is a system that combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control unit, EnergyPak battery systems and SyncDrive motor.

For more information, check out the link below.

READ MORE

×

MAESTRO SUSPENSION TECHNOLOGY

Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.

READ MORE

×

SYNCDRIVE PRO

SyncDrive Pro powered by Yamaha is designed for high-performance E-bike riding. Giant tuned the motor to make it more powerful, producing a performance-oriented riding style. The lightweight, compact SyncDrive Pro motor is used primarily on Giant’s high-performance models.

Read more

×

SMART ASSIST

All SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider’s needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine the optimal amount of pedaling assistance. SyncDrive is the only e-bike system that utilizes both rider input and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while also conserving power when you don’t need as much.

READ MORE

×

ENERGYPAK

Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimise the E-bike experience for a specific style of riding.

READ MORE

×

Available on premium Giant E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Coloured LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.

READ MORE

×

This updated control system features clean buttons that are integrated with the handlebar grips. You can install the three-button control on the left or right side, making it easy to switch power modes. You also have the option of adding a second control on the other side. Using the RideControl App, you can configure it to your own personal preferences.

READ MORE

×

FLIP CHIP - MAESTRO

The flip chip allows riders to quickly adjust the geometry of their Maestro-equipped mountain bike to better suit how and where they ride. It lets riders change the headtube/seattube angles and bottom bracket height via eccentric (offset, two-position) hardware located on the upper rocker arm.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
L
XL
S
M
L
XL
A SEAT TUBE LENGTH (mm)
400
425
450
475
A1 SEAT TUBE ANGLE
76.0°
76.0°
76.0°
76.0°
C TOP TUBE LENGTH (mm)
577
610
637
667
D HEAD TUBE LENGTH (mm)
100
110
120
115
E HEAD TUBE ANGLE
65.7°
65.8°
65.8°
65.8°
F FORK RAKE (mm)
44
44
44
44
G TRAIL (mm)
117
117
117
117
H WHEELBASE (mm)
1205
1239
1268
1300
I CHAIN STAY LENGTH (mm)
473
473
473
473
J BOTTOM BRACKET DROP (mm)
30
30
30
30
K STACK (mm)
606
611
621
630
L REACH (mm)
439
457
482
510
M STAND OVER HEIGHT (mm)
738
775
763
775
O STEM LENGTH (mm)
40
50
50
60
P CRANK LENGTH (mm)
160
165
165
170
Q WHEEL SIZE
29"
29"
29"
29"
GRIPS
Giant Tactal Pro-E, single lock-on
HANDLEBAR
Giant Contact SL 35 Trail
SADDLE
Giant Romero, Neutral
SEATPOST
Giant Contact Switch, dropper
STEM
Giant Contact SL 35
BRAKE LEVERS
Shimano Deore, I-spec EV
BRAKES
Shimano BR-M420, 4-piston, hydraulic disc, 203mm
CASSETTE
Shimano CS-M6100-12, 10-51T, 12-speed
CHAIN
KMC e.12 Turbo, EcoProteq, e-bike optimised
CRANKSET
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set
FRONT DERAILLEUR
MRP HD2 co-moulded chain guide
REAR DERAILLEUR
Shimano Deore 12-speed
SHIFTERS
Shimano Deore
BATTERY
EnergyPak Smart 400Wh EnergyPak Plus
CONNECTIVITY
Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
DISPLAY
RideControl GO, frame integrated LED display ANT+ Wireless display compatible
DISPLAY/CONTROLLER
RideControl Ergo 3, grip integrated
E MOTOR
SyncDrive Pro2 85Nm, powered by Yamaha
E MOTOR CHARGER
Giant EnergyPak 4A smart charger, 60% in 1:45
LIGHTS
Optional: - Giant Recon series e-bike lights available and direct connectable
RANGE EXTENDER
Range extender compatible
FORK
RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimized
FRAME
Advanced-Grade Composite front triangle, ALUXX SL-Grade rear triangle, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle
SHOCK
Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
EXTRAS
Tubeless kit (liquid, valves, levers)
FRONT TYRE
Maxxis Minion DHF 29X2.50 Foldable, TLR, EXO
HUBS
Shimano MT410, Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
REAR TYRE
Maxxis Dissector 27.5x2.4 Foldable, TLR, EXO
RIMS
Giant AM 29" [F]/ 27.5" [R]
SPOKES
Sapim E-Lite [R] Race [F], e-bike optimized
