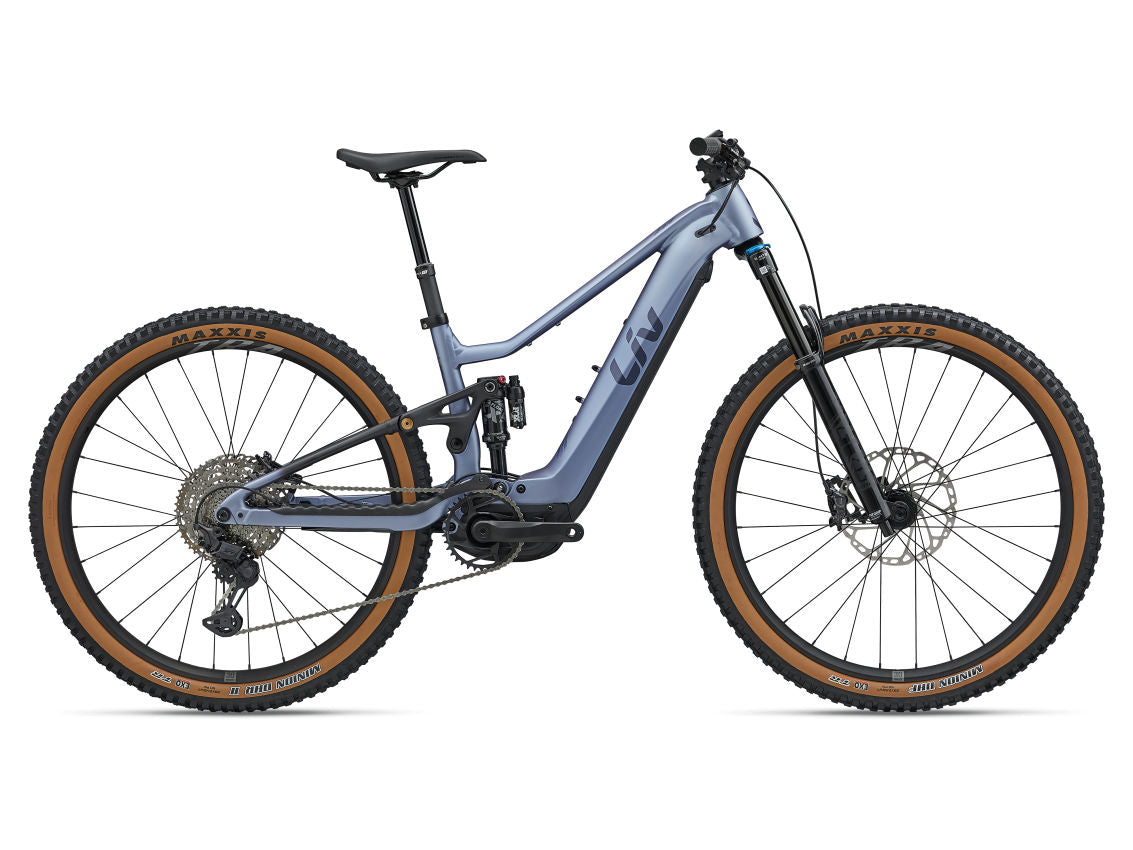

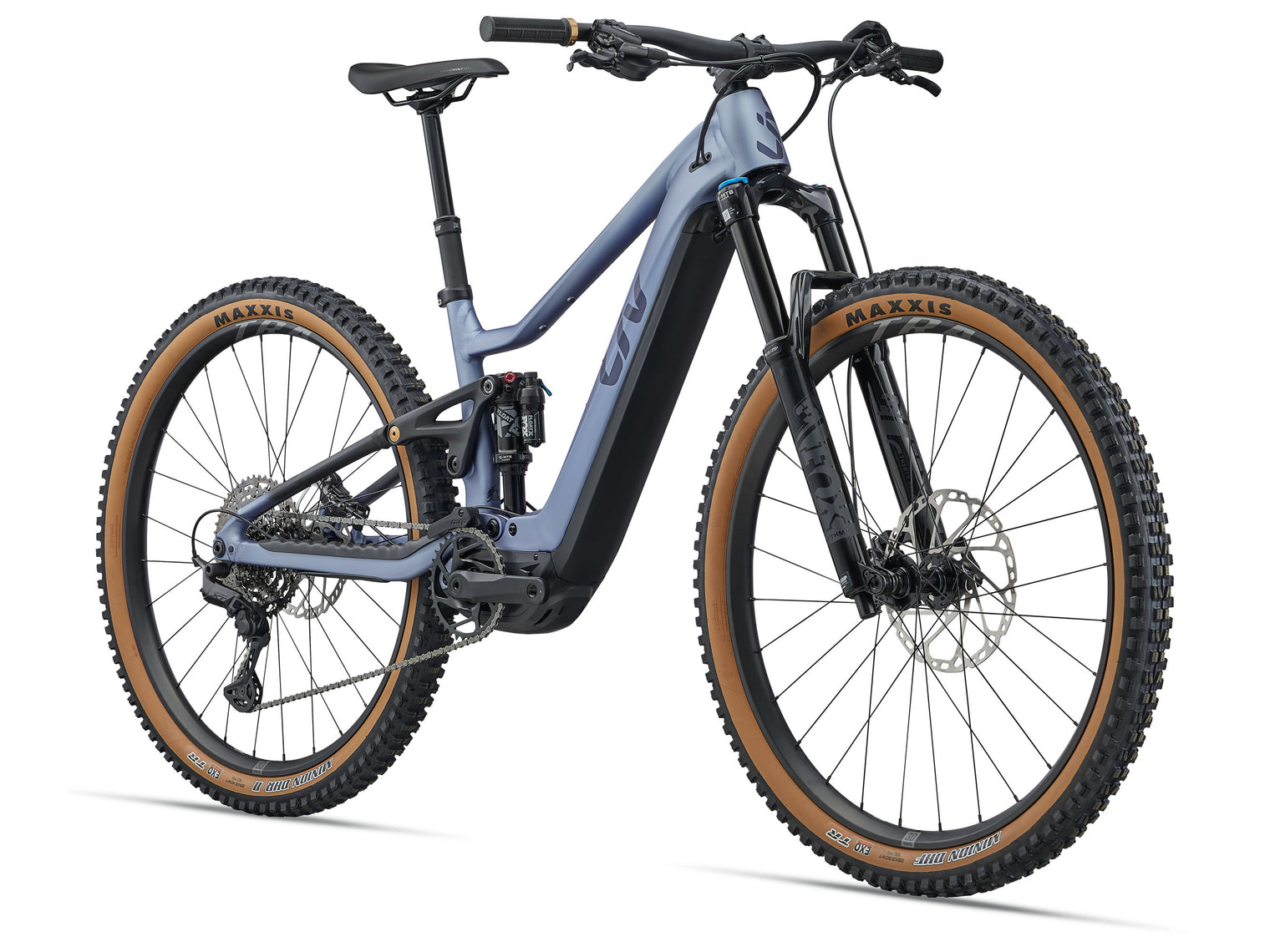

Liv 2027 Embolden E+ 0

$8,999.00

Colour

Atmosphere / Black

Size

X-SMALL SMALL MEDIUM LARGE

Product variants

Loading locations...

geometry

specs

Confident Trail Capability

With 150mm of front travel and 140mm at the rear, the suspension system is designed and tuned specifically for the Embolden E+ to deliver stability, traction, and predictable handling when trails get rough. The lightweight ALUXX SL-grade aluminium frame helps keep the bike manageable on climbs and more intuitive on singletrack, while the new FlexPoint Suspension design keeps the rear wheel active and controlled over uneven surfaces—helping the bike stay composed and easier to manage as trails get more technical.

Power You Can Rely On

The SyncDrive Pro 3X motor delivers up to 100Nm with a smooth, natural response that closely follows rider input—making steep climbs and long days feel more manageable. Paired with Smart Assist and high-capacity EnergyPak Smart batteries, the system supports a trail range of approximately 50–120 km depending on terrain, elevation, and support mode, with the option to add an EnergyPak Plus range extender for longer adventures. This gives riders the practical freedom to explore new areas, ride longer loops, and confidently plan full trail days without range anxiety.

Smart Integration, Built to Last

Every part of the E+ System is developed to work together—from motor to battery to software—supporting durability, serviceability, and long-term value. Through the RideControl Dash 2 and RideControl app, riders can personalise how the bike responds and which ride data they see, making it easy to fine-tune support modes and power delivery to match terrain, fitness, and riding style. The system is fully supported through Liv retailers with diagnostics and firmware updates, while the in-house developed battery chemistry delivers up to 2300 charge cycles. Integrated technologies, including e-locking and Apple Find My, add everyday security on and off the trail.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

ENERGYPak 800 / SyncDrive Pro 3X 100Nm

Range

Extreme: 119 km

Good: 145 km

Ideal: 245 km

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

BSEAT TUBE ANGLE

77.5°

76.5°

CTOP TUBE LENGTH (mm)

555

575

595

615

DHEAD TUBE LENGTH (mm)

105

115

125

EHEAD TUBE ANGLE

64.5°

HWHEELBASE (mm)

1217

1226

1248

1270

ICHAIN STAY LENGTH (mm)

468

KSTACK (mm)

619

628

637

LREACH (mm)

417

426

444

462

MSTAND OVER HEIGHT (mm)

689

710

726

736

PCRANK LENGTH (mm)

165

Motor

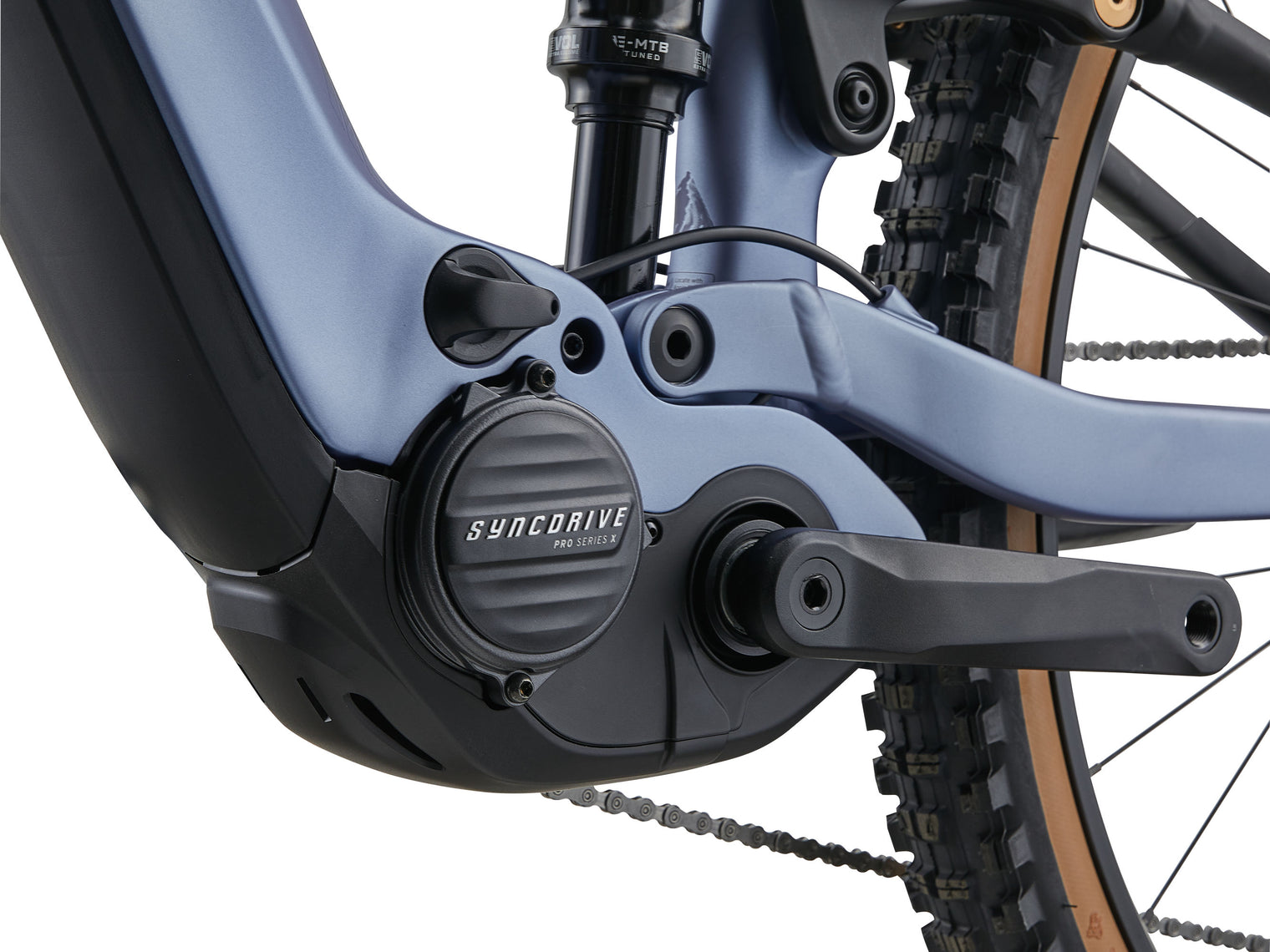

Giant SyncDrive ProX3, 36v, 100Nm, 800W peak power, PedalPlus 6-Sensor technology

Controller

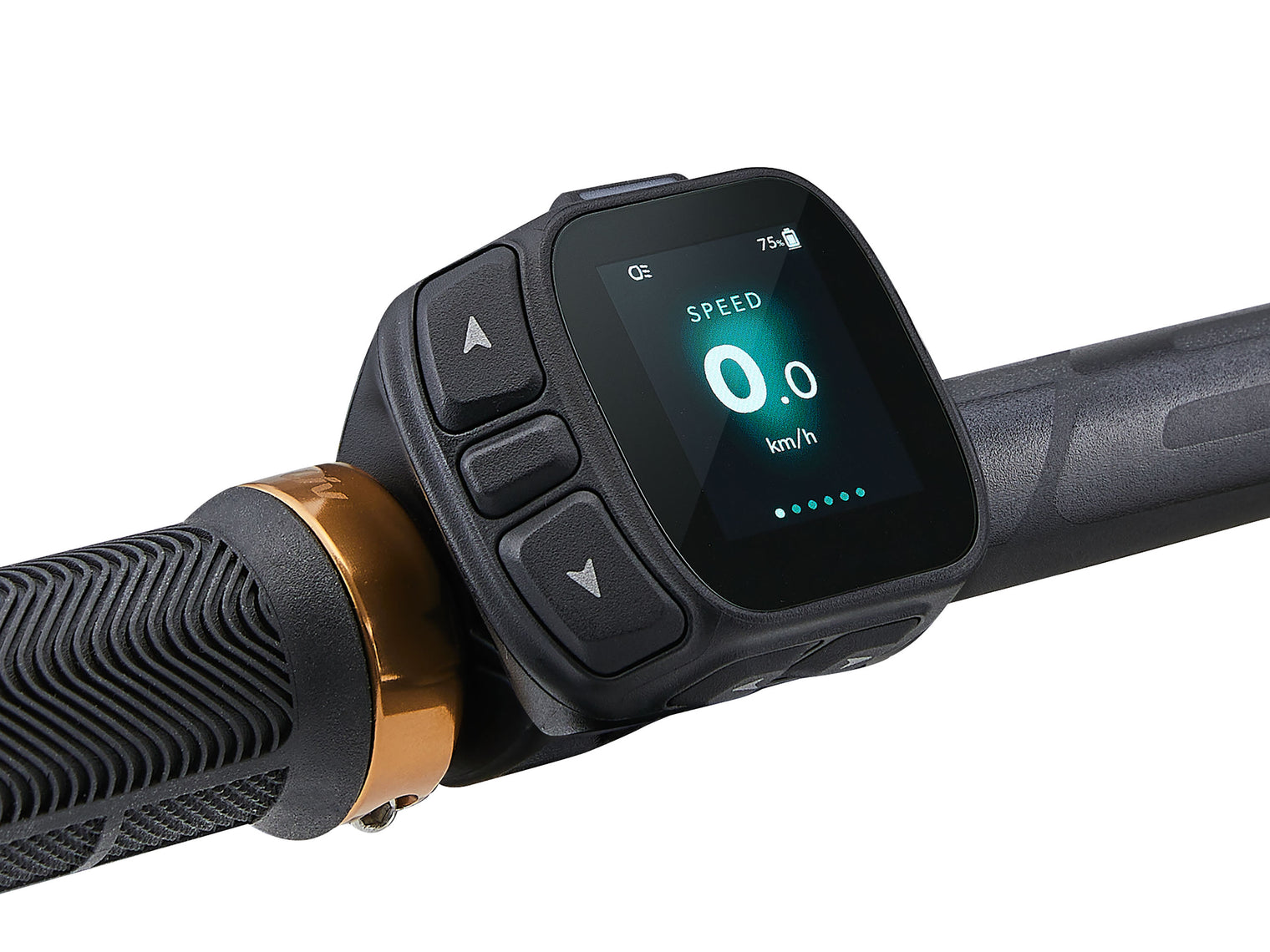

Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels

Display

Giant RideControl Dash 2, full colour LCD display

Battery

EnergyPak Smart 800Wh, EnergyPak Plus 200/240Wh range extender compatible

Charger

Giant EnergyPak 4A smart charger

Maximum Assisted Speed

Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed

Sizes

XS (27.5), S, M, L (29)

Colours

Atmosphere/Black

Frame

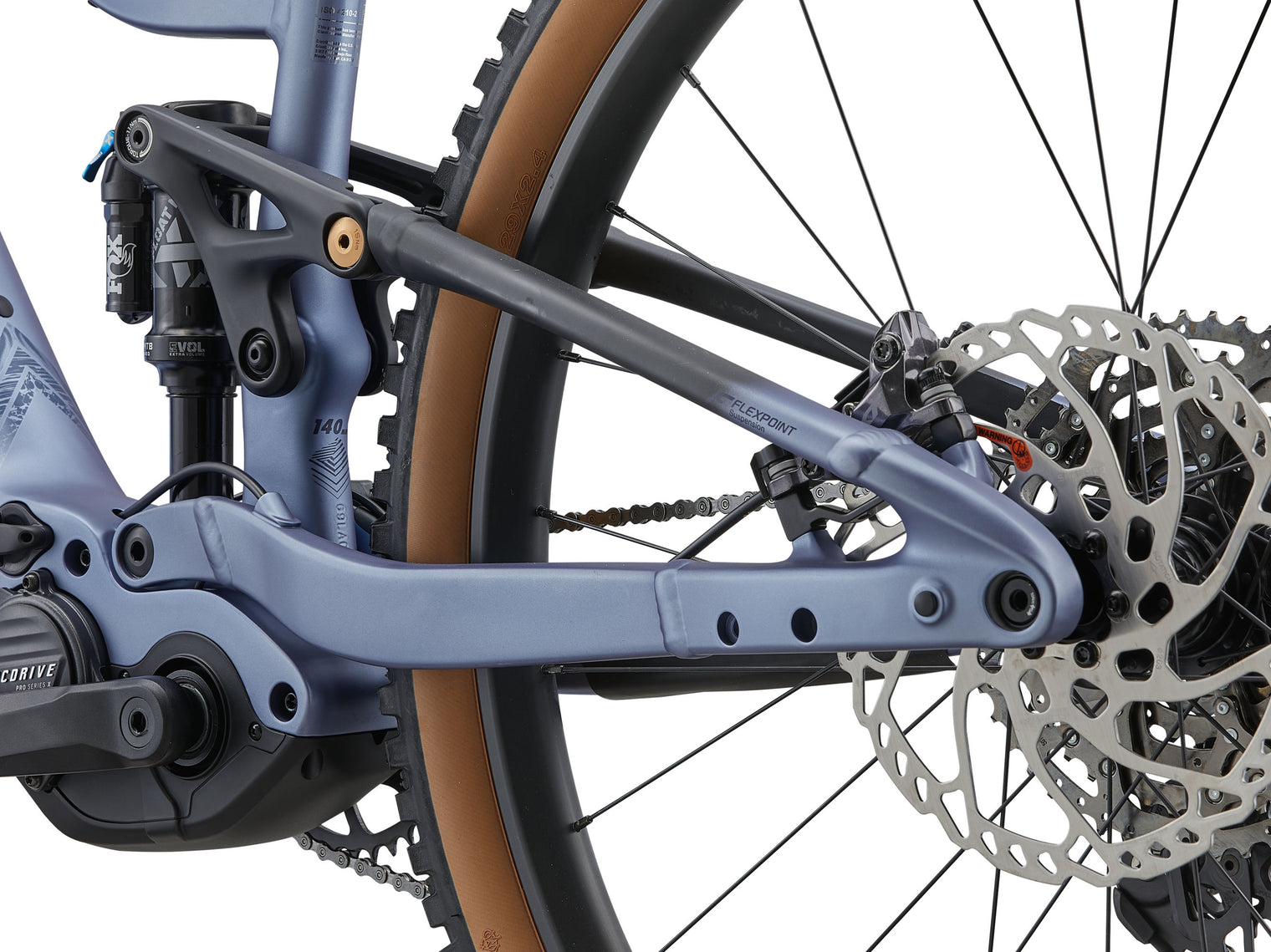

ALUXX SL-grade aluminium, 140mm travel FlexPoint linkage driven suspension system, 148x12 Boost rear axle, UDH, KSA40 compatible

Fork

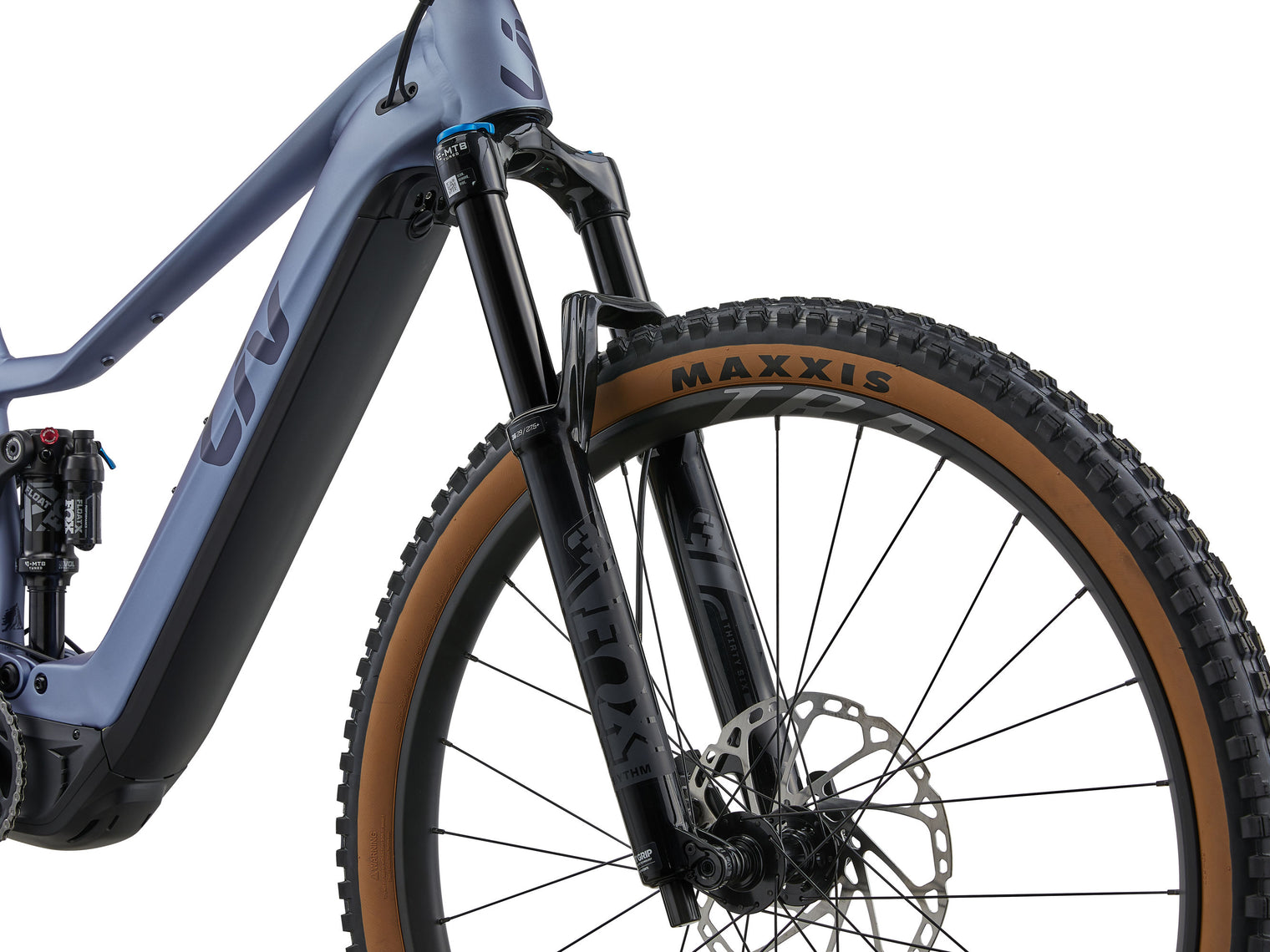

Fox 36 Rhythm E-Tuned, 150mm travel, 44mm offset, GRIP damper, Boost Kabolt-X 110x15mm

Shock

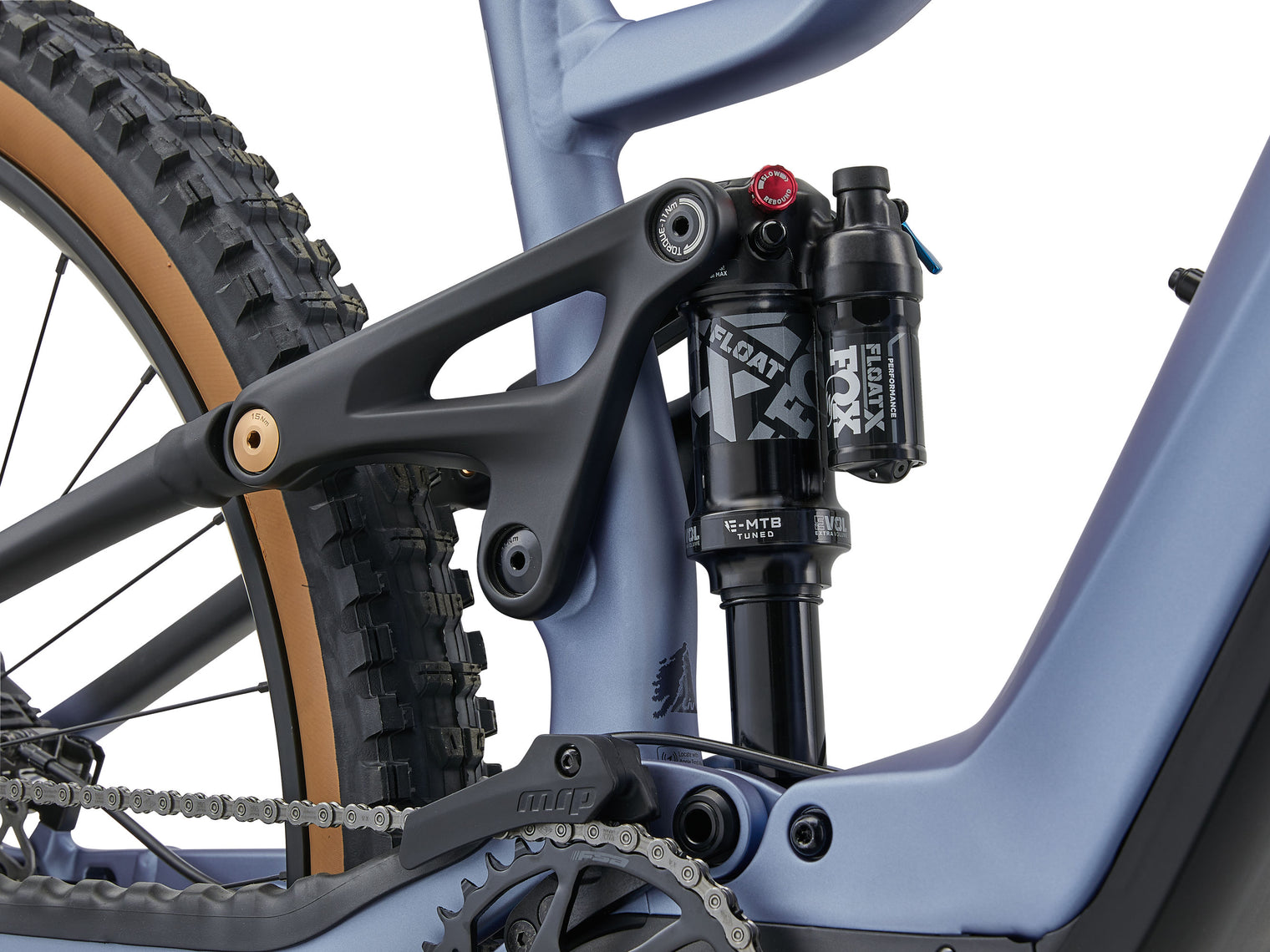

Fox Float X Factory, EVOL Large Volume sleeve, 2 position lever, custom tuned

Handlebar

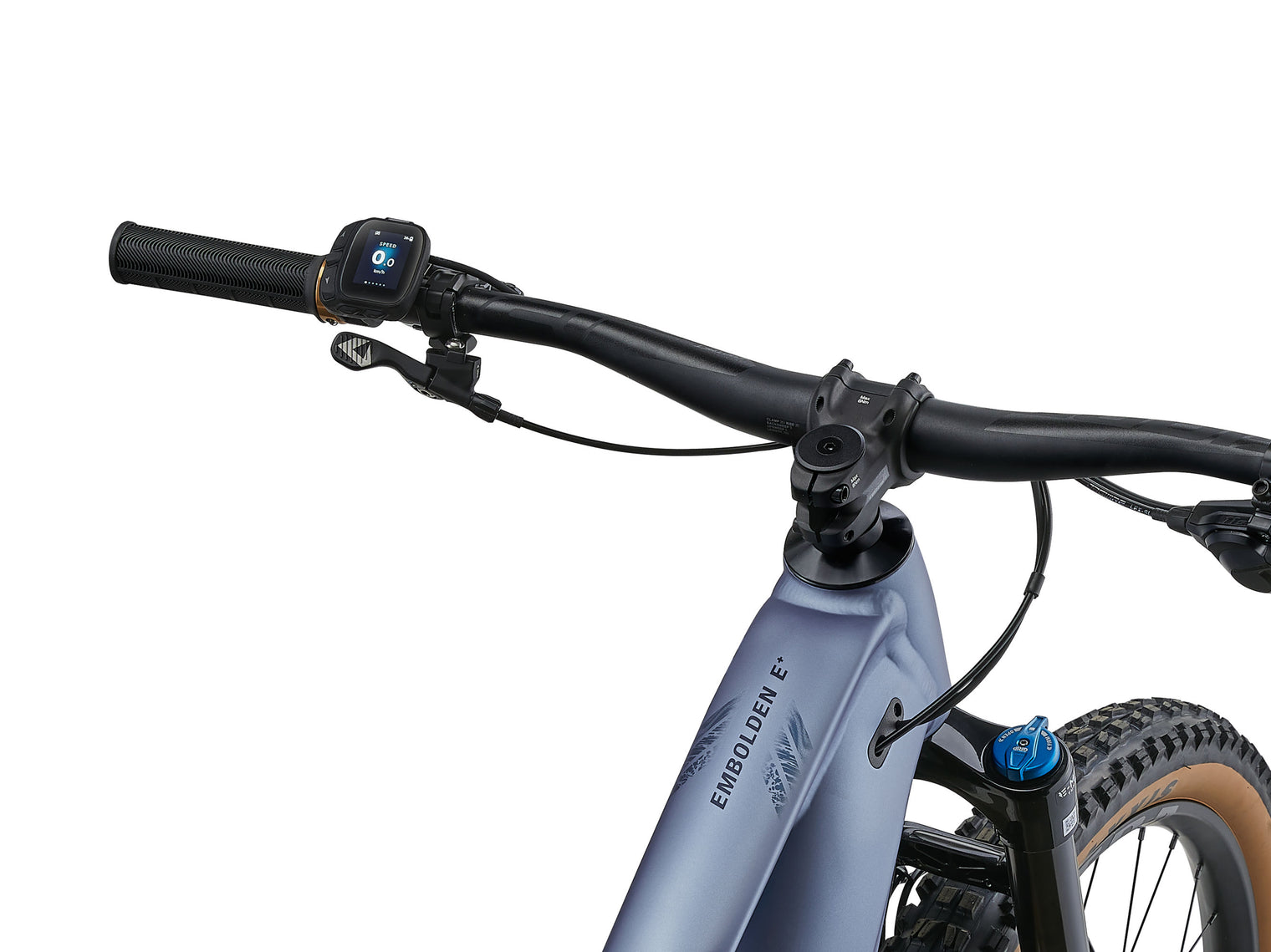

Giant Connect TR35, 20mm Rise

Grips

Liv Tactal Pro single lock-on

Stem

Giant Contact SL 35mm XS:40mm, S:40mm, M:40mm, L:50mm

Seatpost

Giant Contact Switch AT travel-adjustable dropper, remote XS:70-100mm / 30.9 x 315mm S:110-140mm / 30.9 x 395mm M:140-170mm / 30.9 x 470mm L:170-200mm / 30.9 x 530mm

Saddle

Liv Contact Ergo Trail

Pedals

Platform

Shifters

Shimano CUES SL-6000, 1x11

Front Derailleur

N/A

Rear Derailleur

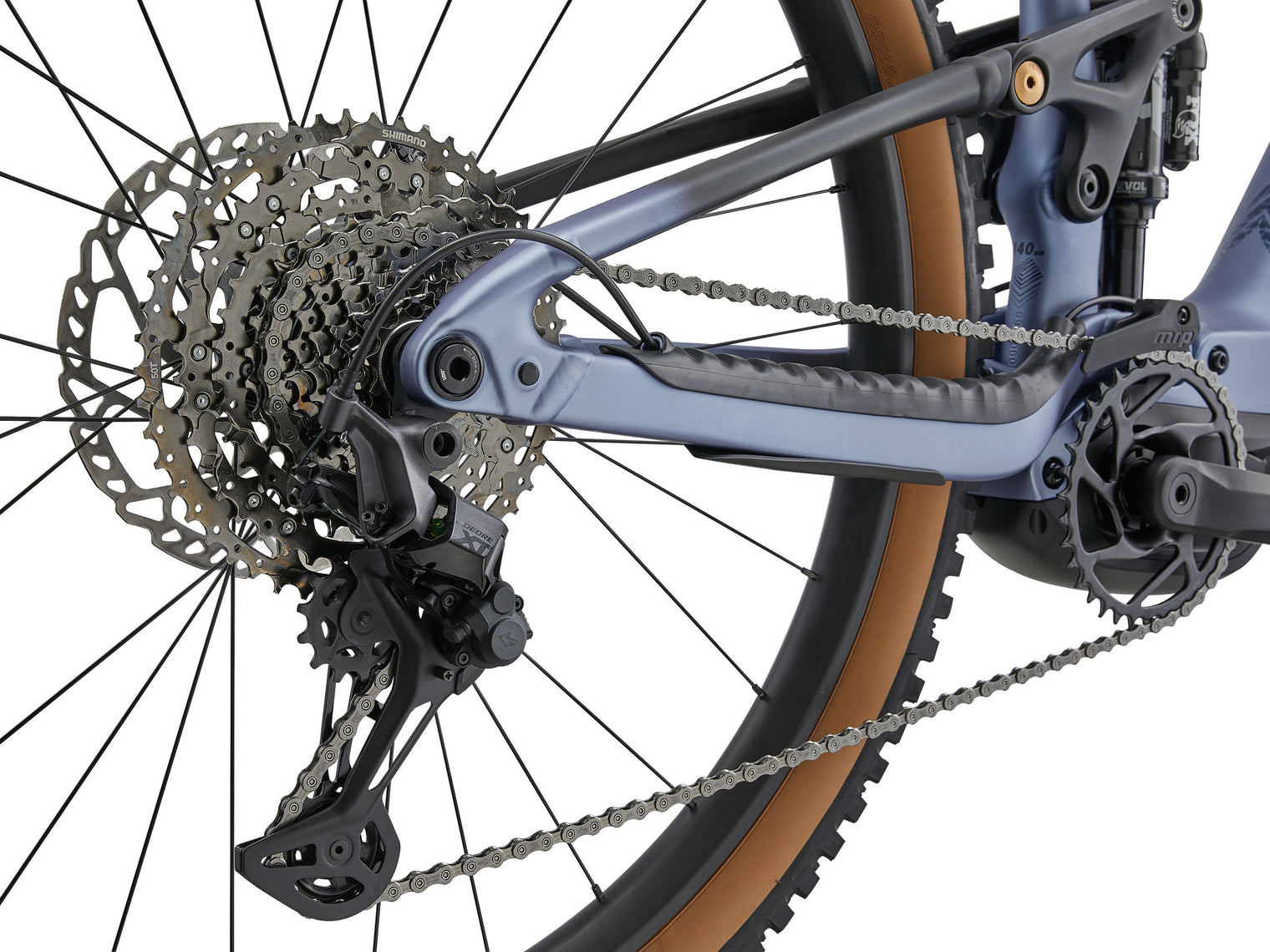

Shimano Deore XT 11-speed Shadow+

Brakes

Shimano Deore XT BR-M8120, hydraulic disc 4-piston, 220mm [F], 203mm [R]

Brake Levers

Shimano Deore XT BL-M8100

Cassette

Shimano CUES LinkGlide LG-40011, 11-speed, 11-50T

Chain

Shimano CUES LinkGlide CN-LG500

Crankset

Forged aluminium crank arms, Steel direct mount, 36T chain ring XS:160mm, S:160mm, M:165mm, L:165mm

Bottom Bracket

N/A

Rims

Giant TRA2 Hookless Tubeless ready Alloy 30mm inner width, 27.5" F&R for XS/S, 29" F&R for M/L

Hubs

Giant E-Drive 260Nm, 72T engagement, boost, 15x110mm [F] 12x148mm [R], e-bike optimised

Spokes

Sapim Race

Tyres

Maxxis Minion DHF 27.5x2.5 (XS), 29x2.5 (S, M, L), EXO, tubeless [F] Maxxis Dissector 27.5x2.4 (XS), 29x2.4 (S, M, L), EXO, tubeless [R]

Extras

Tubeless kit (liquid, valves, levers, manual, tool)

Lock

Torx 25 battery lock with built-in torque limiter

Fender/Chainguard

MRP 1x HD guide, CS e-Mount, 32-38T adjustable

Combined Max Load Limit

140kg

Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
