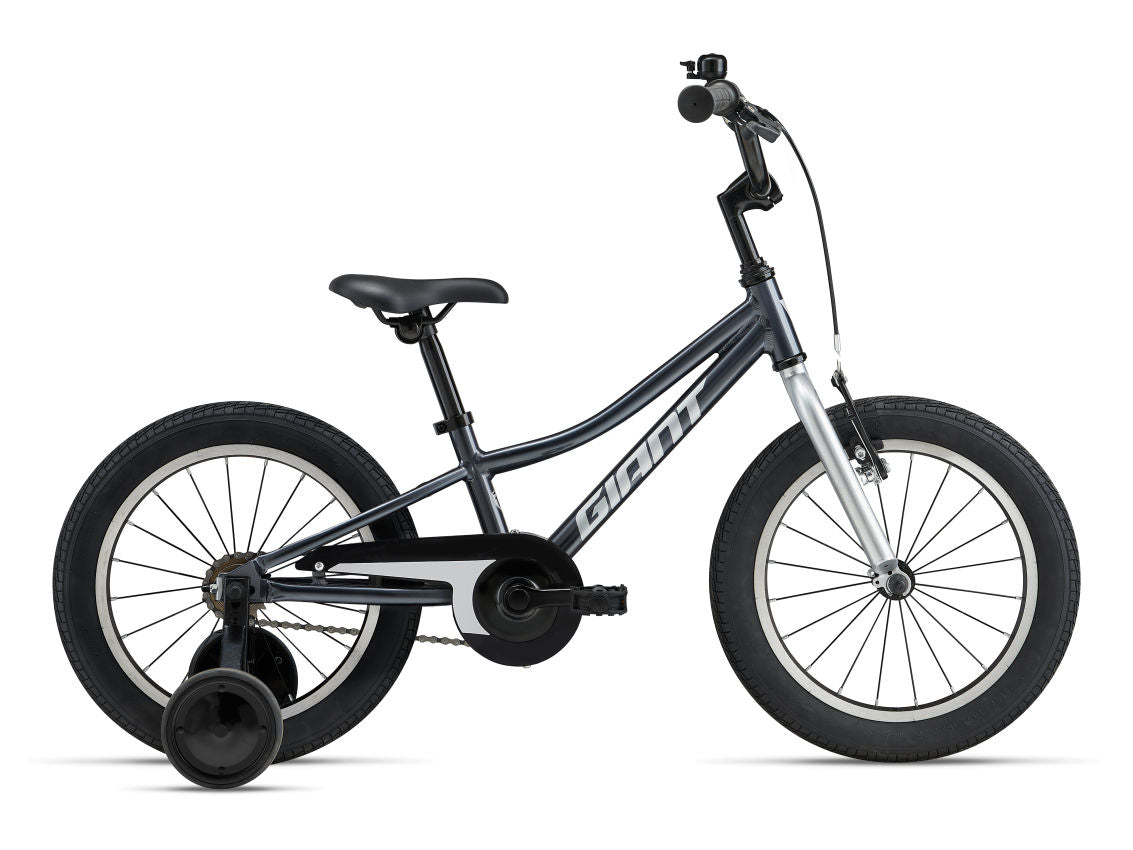

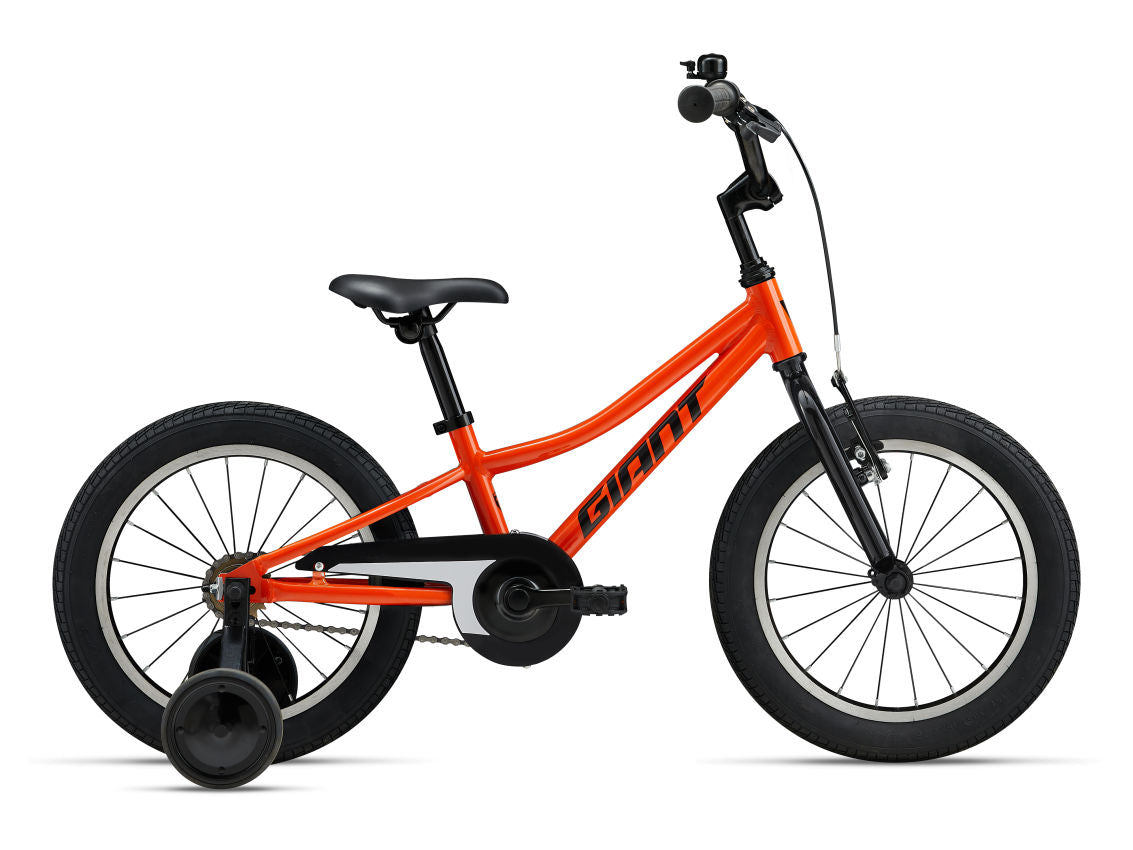

Giant Animator 16

$319.00 $399.00
Colour

Loading locations...

KEY PERFORMANCE FACTORS

Built for kids
Short crank length and narrow Q-factor make Animator easy to pedal, and a lightweight aluminium frame allows small children to have more control.

Kid-friendly features
Short-reach brake lever, lower stand-over height, protective stem pad and removable training wheels make it fun and safe for kids learning to ride a pedal bike.

Durable
ALUXX aluminium frame material provides long-lasting reliability, backed by a lifetime warranty on the frame.

TECHS & FEATURES

×

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

ONESIZE
ONE SIZE
A SEAT TUBE LENGTH (mm)
208
B SEAT TUBE ANGLE
72.0°
C TOP TUBE LENGTH (mm)
382
D HEAD TUBE LENGTH (mm)
100
E HEAD TUBE ANGLE
71.0°
F FORK RAKE (mm)
35
G TRAIL (mm)
80.7
H WHEELBASE (mm)
738
I CHAIN STAY LENGTH (mm)
310
J BOTTOM BRACKET DROP (mm)
K STACK (mm)
328
L REACH (mm)
276
M STAND OVER HEIGHT (mm)
407
O STEM LENGTH (mm)
40
P CRANK LENGTH (mm)
89
Q WHEEL SIZE
16"
GRIPS
Giant Kids
HANDLEBAR
Giant Kids, rise
PEDALS
Platform
SADDLE
Giant Kids
SEATPOST
Alloy, 25.4x180mm
STEM
Alloy quill, 22.2x40mm
BOTTOM BRACKET
Sealed cartridge
BRAKE LEVERS
Alloy junior, adjustable reach
BRAKES
Fr: Handbrake, Rr: Coaster
CASSETTE
18t
CHAIN
KMC C410
CRANKSET
Steel forged, 28t, 89mm
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
N/A
SHIFTERS
N/A
FORK
High-tensile steel
FRAME
ALUXX-grade aluminium
EXTRAS
Training wheels, bell, protective pad
HUBS
Nutted, 20h
RIMS
Giant Kids 16 inch, alloy
SPOKES
14g
TYRES
Giant, 16x2.25
