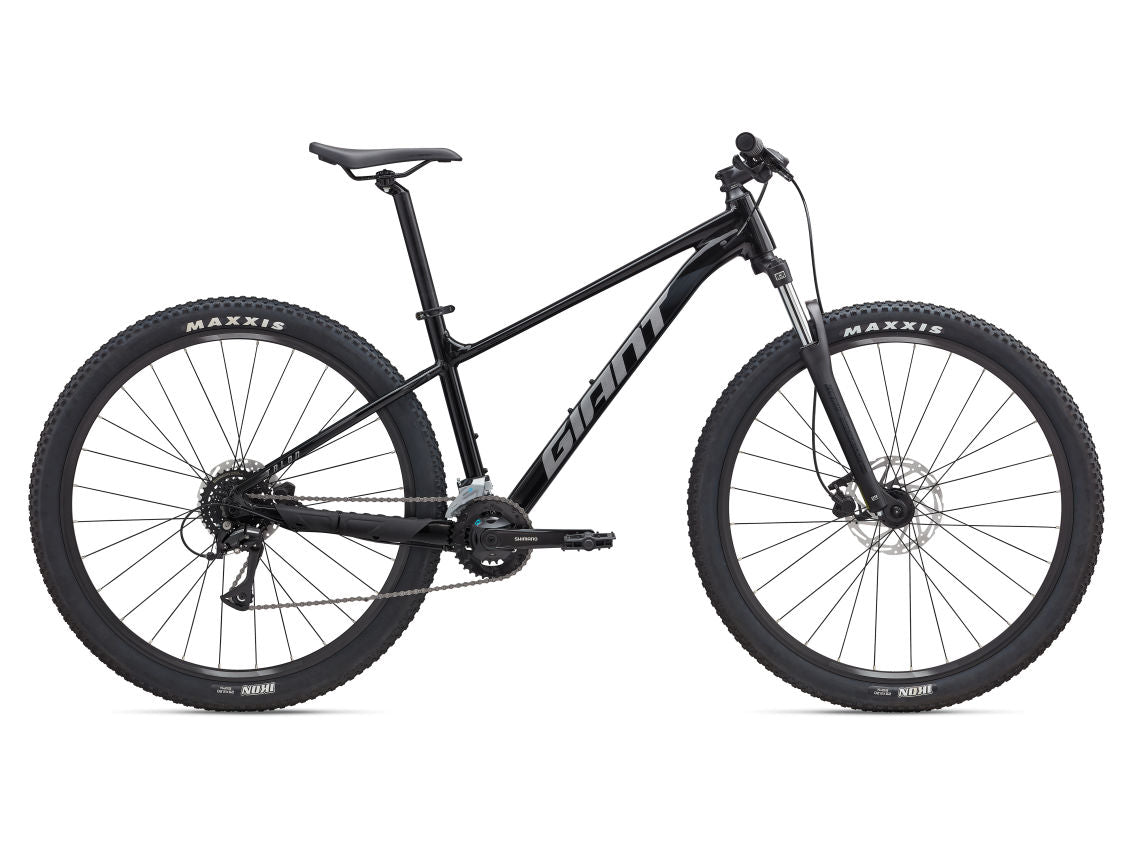

Giant Talon 29 3 2025

$849.00 $999.00
Colour
Size

Loading locations...

Shop online or in store today for the Giant Talon 29 3 2025

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
L
XL
S
M
L
XL
A SEAT TUBE LENGTH (mm)
380
420
450
480
A1 SEAT POST INSERTION DEPTH (mm)
340
200
237
292
B SEAT TUBE ANGLE
74.5°
74.5°
74.5°
74.5°
C TOP TUBE LENGTH (mm)
581
604
629
653
D HEAD TUBE LENGTH (mm)
95
105
125
140
E HEAD TUBE ANGLE
67.5°
67.5°
67.5°
67.5°
F FORK RAKE (mm)
44
44
44
44
G TRAIL (mm)
108.9
108.9
108.9
108.9
H WHEELBASE (mm)
1139
1164
1191
1217
I CHAIN STAY LENGTH (mm)
455
455
455
455
J BOTTOM BRACKET DROP (mm)
55
55
55
55
K STACK (mm)
597
606
625
639
L REACH (mm)
415
436
456
476
M STAND OVER HEIGHT (mm)
715
709
709
710
O STEM LENGTH (mm)
50
60
70
80
P CRANK LENGTH (mm)
170
170
170
175
Q WHEEL SIZE
29
29
29
29
HANDLEBAR
Giant Connect Trail, 31.8mm
PEDALS
MTB caged
SADDLE
Giant ErgoContact Trail
SEATPOST
Giant Sport, 30.9mm
STEM
Giant Sport, 7-degree S: 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)
BOTTOM BRACKET
Cartridge
BRAKE LEVERS
Tektro TKD143
BRAKES
Tektro TKD143, hydraulic
BRAKES ROTOR
Tektro rotors [F]180mm, [R]160mm
CASSETTE
Shimano HG31, 11x34
CHAIN
KMC 8.3
CRANKSET
Shimano FC-M315, 22/36 S: 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29)
FRONT DERAILLEUR
Shimano Acera
REAR DERAILLEUR
Shimano Acera
SHIFTERS
Shimano Acera, 2x8
FORK
SR Suntour XCE 28, coil spring, QR, steel steerer S: 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29) XL: 100mm travel (29)
FRAME
ALUXX-grade aluminium, disc
SHOCK
N/A
EXTRAS
2.4 inch max tyre size, 32t max chainring size
HUBS
Alloy, sealed
RIMS
Giant GX03V 29, alloy, double wall
SPOKES
Stainless, 14g
TYRES
Maxxis Ikon 29x2.2 inch, wire bead

TECHS & FEATURES

×

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
