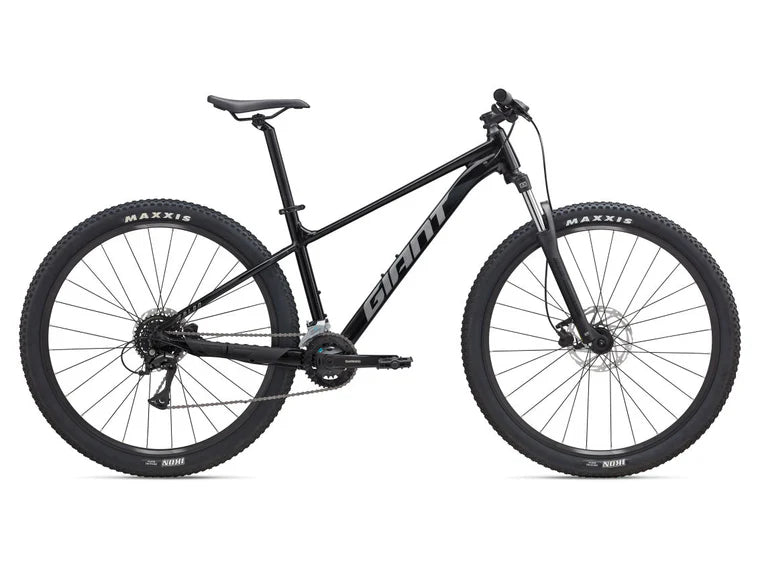

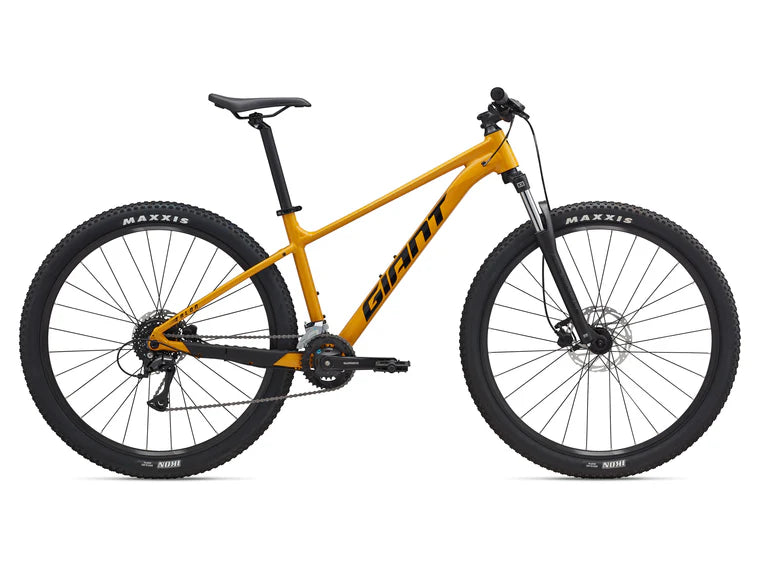

Giant Talon 3 27.5 2025

$849.00 $999.00
Colour
Size

Loading locations...
Shop online or in store today for the Giant Talon 3 27.5 2025.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
XS
S
A SEAT TUBE LENGTH (mm)
350
385
B SEAT TUBE ANGLE
74.0°
74.0°
C TOP TUBE LENGTH (mm)
544
569
D HEAD TUBE LENGTH (mm)
95
115
E HEAD TUBE ANGLE
67.5°
67.5°
F FORK RAKE (mm)
42
42
G TRAIL (mm)
103
103
H WHEELBASE (mm)
1079
1106
I CHAIN STAY LENGTH (mm)
440
440
J BOTTOM BRACKET DROP (mm)
45
45
K STACK (mm)
533
571
L REACH (mm)
385
405
M STAND OVER HEIGHT (mm)
686
711
O STEM LENGTH (mm)
40
50
P CRANK LENGTH (mm)
165
170
Q WHEEL SIZE
27.5"
27.5"
HANDLEBAR
Giant Connect Trail, 31.8mm
PEDALS
MTB caged
SADDLE
Giant ErgoContact Trail
SEATPOST
Giant Sport, 30.9mm
STEM
Giant Sport, 7-degree S: 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)
BOTTOM BRACKET
Cartridge
BRAKE LEVERS
Tektro TKD143
BRAKES
Tektro TKD143, hydraulic
BRAKES ROTOR
Tektro rotors [F]180mm, [R]160mm
CASSETTE
Shimano HG31, 11x34
CHAIN
KMC 8.3
CRANKSET
Shimano FC-M315, 22/36 S: 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29)
FRONT DERAILLEUR
Shimano Acera
REAR DERAILLEUR
Shimano Acera
SHIFTERS
Shimano Acera, 2x8
FORK
SR Suntour XCE 28, coil spring, QR, steel steerer S: 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29) XL: 100mm travel (29)
FRAME
ALUXX-grade aluminium, disc
SHOCK
N/A
EXTRAS
2.4 inch max tyre size, 32t max chainring size
HUBS
Alloy, sealed
RIMS
Giant GX03V 29, alloy, double wall
SPOKES
Stainless, 14g
TYRES
Maxxis Ikon 29x2.2 inch, wire bead
HANDLEBAR
Giant Connect Trail, 31.8mm
PEDALS
MTB caged
SADDLE
Giant ErgoContact Trail
SEATPOST
Giant Sport, 30.9mm
STEM
Giant Sport, 7-degree S: 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)
BOTTOM BRACKET
Cartridge
BRAKE LEVERS
Tektro TKD143
BRAKES
Tektro TKD143, hydraulic
BRAKES ROTOR
Tektro rotors [F]180mm, [R]160mm
CASSETTE
Shimano HG31, 11x34
CHAIN
KMC 8.3
CRANKSET
Shimano FC-M315, 22/36 S: 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29)
FRONT DERAILLEUR
Shimano Acera
REAR DERAILLEUR
Shimano Acera
SHIFTERS
Shimano Acera, 2x8
FORK
SR Suntour XCE 28, coil spring, QR, steel steerer S: 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29) XL: 100mm travel (29)
FRAME
ALUXX-grade aluminium, disc
SHOCK
N/A
EXTRAS
2.4 inch max tyre size, 32t max chainring size
HUBS
Alloy, sealed
RIMS
Giant GX03V 29, alloy, double wall
SPOKES
Stainless, 14g
TYRES
Maxxis Ikon 29x2.2 inch, wire bead
