• Giant TCR Advanced Pro 1 (Di2) MY26

Giant TCR Advanced Pro 1 (Di2) MY26

$6,499.00
Colour
Size
Loading locations...

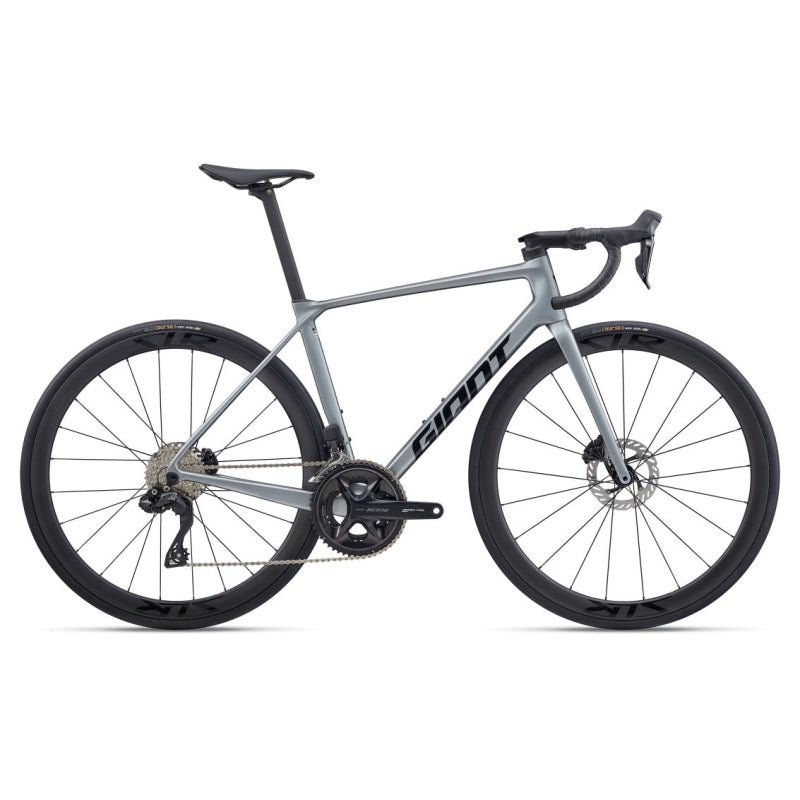

Superlight, ultra-efficient and rides like a dream. This well-rounded race bike blends industry-leading composite frame engineering with fully integrated components to help you climb, corner, and descend with astonishing speed and sublime road handling.

KEY PERFORMANCE FACTORS

System Optimisation

The frameset, wheels, cockpit, and other parts are engineered, developed, and tested together to perform as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate internal cable routing that integrates the top cap, cables, and spacers in a more aerodynamic, user-friendly setup.

Winning Efficiency

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

Integrated Aerodynamics

All tube shapes are engineered and developed using Computational Fluid Dynamics (CFD) modelling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

COMPACT ROAD DESIGN

Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

×

OVERDRIVE AERO

Found inside the head tube of the all-new Propel range, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

×

POWERCORE

A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimetre wide bottom-bracket design (92-millimetre wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
ML
L
XL
XS
S
M
ML
L
XL
ASEAT TUBE LENGTH (mm)
425
445
470
500
530
560
BSEAT TUBE ANGLE
74.5°
74.0°
73.5°
73.0°
73.0°
72.5°
CTOP TUBE LENGTH (mm)
520
535
550
565
580
600
DHEAD TUBE LENGTH (mm)
120
130
145
165
185
200
EHEAD TUBE ANGLE
71.0°
72.3°
73.0°
73.0°
73.0°
73.0°
FFORK RAKE (mm)
45
45
45
45
45
45
GTRAIL (mm)
72.1
64
59.2
59.2
59.2
59.2
HWHEELBASE (mm)
976
977
980
991
1006
1020
ICHAIN STAY LENGTH (mm)
405
405
405
405
405
405
JBOTTOM BRACKET DROP (mm)
72
70
70
67
67
67
KSTACK (mm)
517
528
545
562
581
596
LREACH (mm)
376
383
388
393
402
412
MSTAND OVER HEIGHT (mm)
719
734
752
768
786
803
OSTEM LENGTH (mm)
80
90
100
110
110
110
PCRANK LENGTH (mm)
165
165
170
170
172.5
172.5
COLOURS
Tech Silver
FRAME
Advanced-grade Composite, 12x142mm thru-axle, disc
FORK
Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
SHOCK
N/A
HANDLEBAR
Giant Contact SL XS:37/42cm, S:37/42cm, M:39/44cm, M/L:39/44cm, L:39/44cm, XL:39/44cm
GRIPS
Stratus Lite 2.0
STEM
Giant Contact SL AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
SEATPOST
Giant Variant, composite, -5/+15mm offset
SADDLE
Giant Fleet SL
SHIFTERS
SRAM Rival AXS E1
FRONT DERAILLEUR
SRAM Rival AXS E1
REAR DERAILLEUR
SRAM Rival AXS E1
BRAKES
SRAM Rival E1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm
BRAKE LEVERS
SRAM Rival AXS
CASSETTE
SRAM Rival E1, 12-speed, 10x36
CHAIN
SRAM Rival E1
CRANKSET
SRAM Rival DUB, 35/48 with power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
BOTTOM BRACKET
SRAM DUB, press fit
RIMS
Giant SLR 1 40 WheelSystem, [F]40mm, [R]40mm
HUBS
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
SPOKES
Sapim CX-Ray
TIRES
Giant Gavia Course 0, tubeless, 700x28c (28mm), folding
EXTRAS
Computer mount, tubeless prepared, 33mm max tyre size
MAX TIRE CLEARANCE
33mm
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
