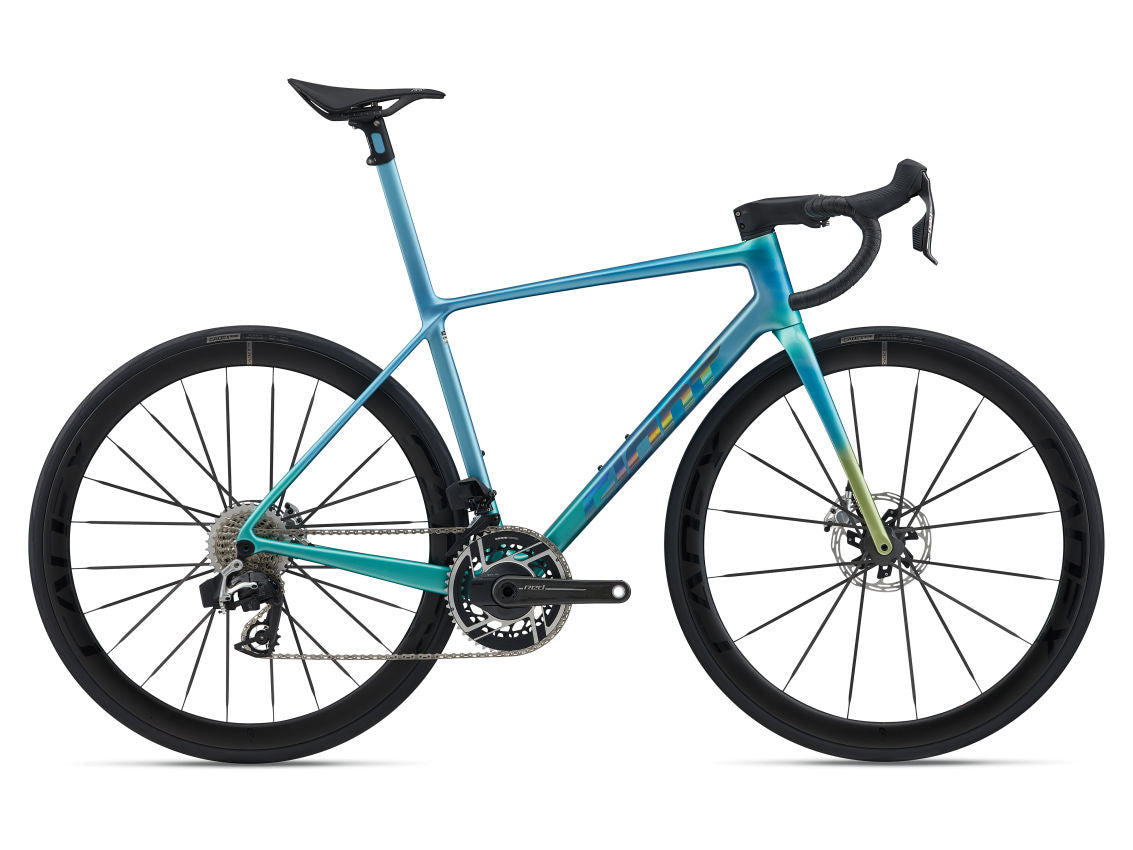

• Giant TCR Advanced SL 0 Red MY26

Giant TCR Advanced SL 0 Red MY26

$10,999.00 $14,199.00
Colour
Size
Loading locations...

FROM HORS CATEGORIE CLIMBS TO ROLLERS AND FLATS, THIS WORLDTOUR LEVEL RACE BIKE IS THE PRO’S CHOICE FOR ALL-ROUNDER PERFORMANCE. THE ALL-NEW FLAGSHIP TCR USES SYSTEM INTEGRATION AND INNOVATIVE CONSTRUCTION METHODS TO DELIVER A CLEAR ADVANTAGE ON THE ROAD.

Key Performance Factors

System optimisation

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SL handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

Winning efficiency

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedalling stiffness. The result is race-winning performance in the moments that count.

Integrated aerodynamics

From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.

TECHS & FEATURES

×

ADVANCED COMPOSITE SL TECHNOLOGY

Giant’s Professional Grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including: Continuous Fibre Technology to add strength while reducing weight; Carbon Nanotube Technology resin to improve impact resistance; and Fusion Process for lighter, stronger frame junctions.

×

COMPACT ROAD DESIGN

Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

×

OVERDRIVE AERO

Found inside the head tube of the all-new Propel range, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

×

POWERCORE

A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimetre wide bottom-bracket design (92-millimetre wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

×

INTEGRATED SEATPOST

Designed as a key performance factor in the overall frameset, the integrated seatpost saves up to 45 grams compared to standard composite posts, while improving aerodynamics and adding road-smoothing compliance.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
ML
L
XL
XS
S
M
ML
L
XL
ASEAT TUBE LENGTH (mm)
680
710
740
770
800
830
BSEAT TUBE ANGLE
74.5°
74.0°
73.5°
73.0°
73.0°
72.5°
CTOP TUBE LENGTH (mm)
520
535
550
565
580
600
DHEAD TUBE LENGTH (mm)
120
130
145
165
185
200
EHEAD TUBE ANGLE
71.0°
72.3°
73.0°
73.0°
73.0°
73.0°
FFORK RAKE (mm)
45
45
45
45
45
45
GTRAIL (mm)
72.1
64
59.2
59.2
59.2
59.2
HWHEELBASE (mm)
976
977
980
991
1006
1020
ICHAIN STAY LENGTH (mm)
405
405
405
405
405
405
JBOTTOM BRACKET DROP (mm)
72
70
70
67
67
67
KSTACK (mm)
517
528
545
562
581
596
LREACH (mm)
376
383
388
393
402
412
MSTAND OVER HEIGHT (mm)
719
734
752
768
786
803
OSTEM LENGTH (mm)
80
90
100
110
110
120
PCRANK LENGTH (mm)
165
165
170
170
172.5
172.5
SIZES
XS, S, M, M/L, L, XL
COLOURS
Turbo Teal
FRAME
Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc
FORK
Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
SHOCK
N/A
HANDLEBAR
Giant Contact SLR XS:37/42cm, S:37/42cm, M:39/44cm, M/L:39/44cm, L:39/44cm, XL:39/44cm
GRIPS
Stratus Lite 2.0
STEM
Giant Contact SLR AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
SEATPOST
Giant Integrated Seatpost, -5/+15mm offset
SADDLE
CADEX AMP
PEDALS
N/A
SHIFTERS
SRAM RED AXS E1
FRONT DERAILLEUR
SRAM RED AXS E1
REAR DERAILLEUR
SRAM RED AXS E1
BRAKES
SRAM RED AXS HRD, ED-RED-E1, SRAM PaceLine X rotors [F]160mm, [R]140mm
BRAKE LEVERS
SRAM RED AXS E1
CASSETTE
SRAM RED, 12-speed, 10x33
CHAIN
SRAM RED E1, 12-speed
CRANKSET
SRAM RED E1, DUB, 35/48 with power meter XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
BOTTOM BRACKET
SRAM DUB ceramic, press fit
RIMS
CADEX Max 40 WheelSystem, [F]40mm, [R]40mm
HUBS
[F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle; [R] CADEX R3-C48 Aero Hub, 48t ratchet driver, CenterLock, 12mm thru-axle
SPOKES
CADEX Aero Carbon Spoke
TYRES
CADEX Race GC, tubeless, 700x30c (30mm), folding
EXTRAS
Computer mount, tubeless prepared, 33mm max tyre size
MAX TYRE CLEARANCE
33mm
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
