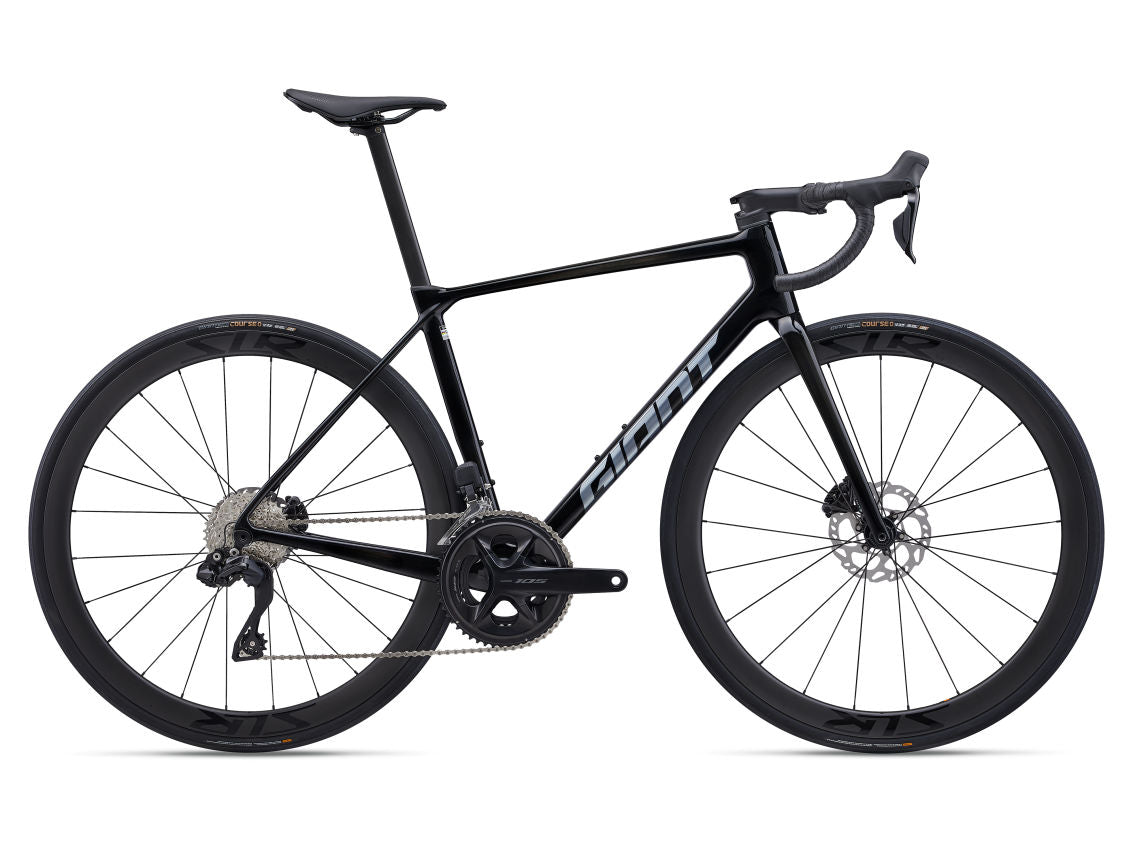

• Giant TCR Advanced Pro 1 DI2 2025

Giant TCR Advanced Pro 1 DI2 2025

$5,499.00 $6,799.00
Colour
Size

Loading locations...

Key Performance Factors

SYSTEM OPTIMIZATION

The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate internal cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

WINNING EFFICIENCY

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS

All tube shapes are engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

COMPACT ROAD DESIGN

Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

×

OVERDRIVE AERO

Found inside the head tube of the all-new Propel range, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
ML
L
XL
XS
S
M
ML
L
XL
A SEAT TUBE LENGTH (mm)
425
445
470
500
530
560
B SEAT TUBE ANGLE
74.5°
74.0°
73.5°
73.0°
73.0°
72.5°
C TOP TUBE LENGTH (mm)
520
535
550
565
580
600
D HEAD TUBE LENGTH (mm)
120
130
145
165
185
200
E HEAD TUBE ANGLE
71.0°
72.3°
73.0°
73.0°
73.0°
73.0°
F FORK RAKE (mm)
45
45
45
45
45
45
G TRAIL (mm)
72.1
64
59.2
59.2
59.2
59.2
H WHEELBASE (mm)
976
977
980
991
1006
1020
I CHAIN STAY LENGTH (mm)
405
405
405
405
405
405
J BOTTOM BRACKET DROP (mm)
72
70
70
67
67
67
K STACK (mm)
517
528
545
562
581
596
L REACH (mm)
376
383
388
393
402
412
M STAND OVER HEIGHT (mm)
706
725
747
773
800
816
O STEM LENGTH (mm)
80
90
100
110
110
120
P CRANK LENGTH (mm)
170
170
172.5
172.5
175
175
Q WHEEL SIZE
700C
700C
700C
700C
700C
700C
BARTAPE
Stratus Lite 2.0
HANDLEBAR
Giant Contact SL XS:37/40cm, S:37/40cm, M:39/42cm, M/L:39/42cm, L:41/44cm, XL:41/44cm
SADDLE
Giant Fleet SL
SEATPOST
Giant Variant, composite, -5/+15mm offset
STEM
Giant Contact SL AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
BOTTOM BRACKET
Shimano, press fit
BRAKE LEVERS
Shimano 105 Di2
BRAKES
Shimano 105 Di2 hydraulic
BRAKES ROTOR
Shimano SM-RT70 rotors [F]160mm, [R]140mm
CASSETTE
Shimano 105, 12-speed, 11x34
CHAIN
KMC X12L-1
CRANKSET
Shimano 105, 36/52 with Giant Power Pro power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
FRONT DERAILLEUR
Shimano 105 Di2 FD-7150
REAR DERAILLEUR
Shimano 105 Di2 RD-7150
SHIFTERS
Shimano 105 Di2 ST-R7170
FORK
Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
FRAME
Advanced-Grade Composite, 12x142mm thru-axle, disc
EXTRAS
Computer mount, tubeless prepared, 33mm max tyre size
FRONT HUB
Giant Low Friction Hub, CenterLock, 12mm thru-axle
REAR HUB
Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
RIMS
Giant SLR 1 40 WheelSystem, [F]40mm, [R]40mm
SPOKES
Sapim CX-Ray
TYRES
Giant Gavia Course 0, tubeless, 700x25c (28mm), folding
