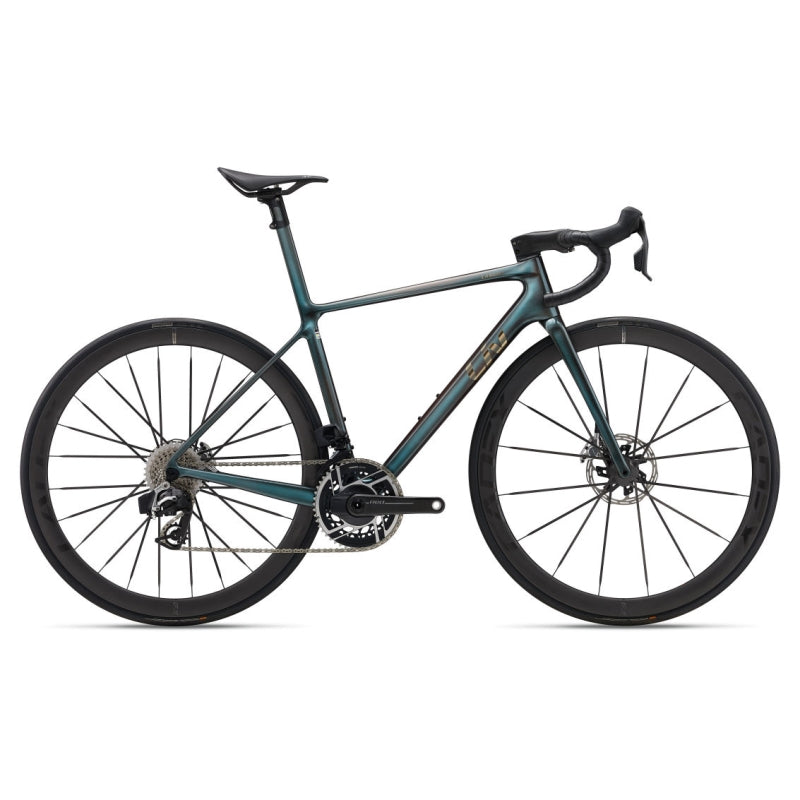

Liv 2025 Langma Advanced SL 0

$9,999.01 $14,199.00
Colour
Size
Loading locations...

IT’S LANGMA SEASON.

The official bike of WorldTeam Liv AlUla Jayco, the Langma Advanced SL is the queen of all-rounder performance. The race-engineered frameset and components are seamlessly integrated, delivering the efficient power transfer you need to rule the mountains. Superior control and aerodynamics slingshot you through the finish in a blur of glory.

KEY PERFORMANCE FACTORS

QOM-LEVEL EFFICIENCY

The new frameset includes an all-new Variant Integrated Seatpost, which means less weight, greater compliance, and improved aero performance—turning every pedal stroke into a burst of “let’s go.”

LIMIT-PUSHING CONTROL

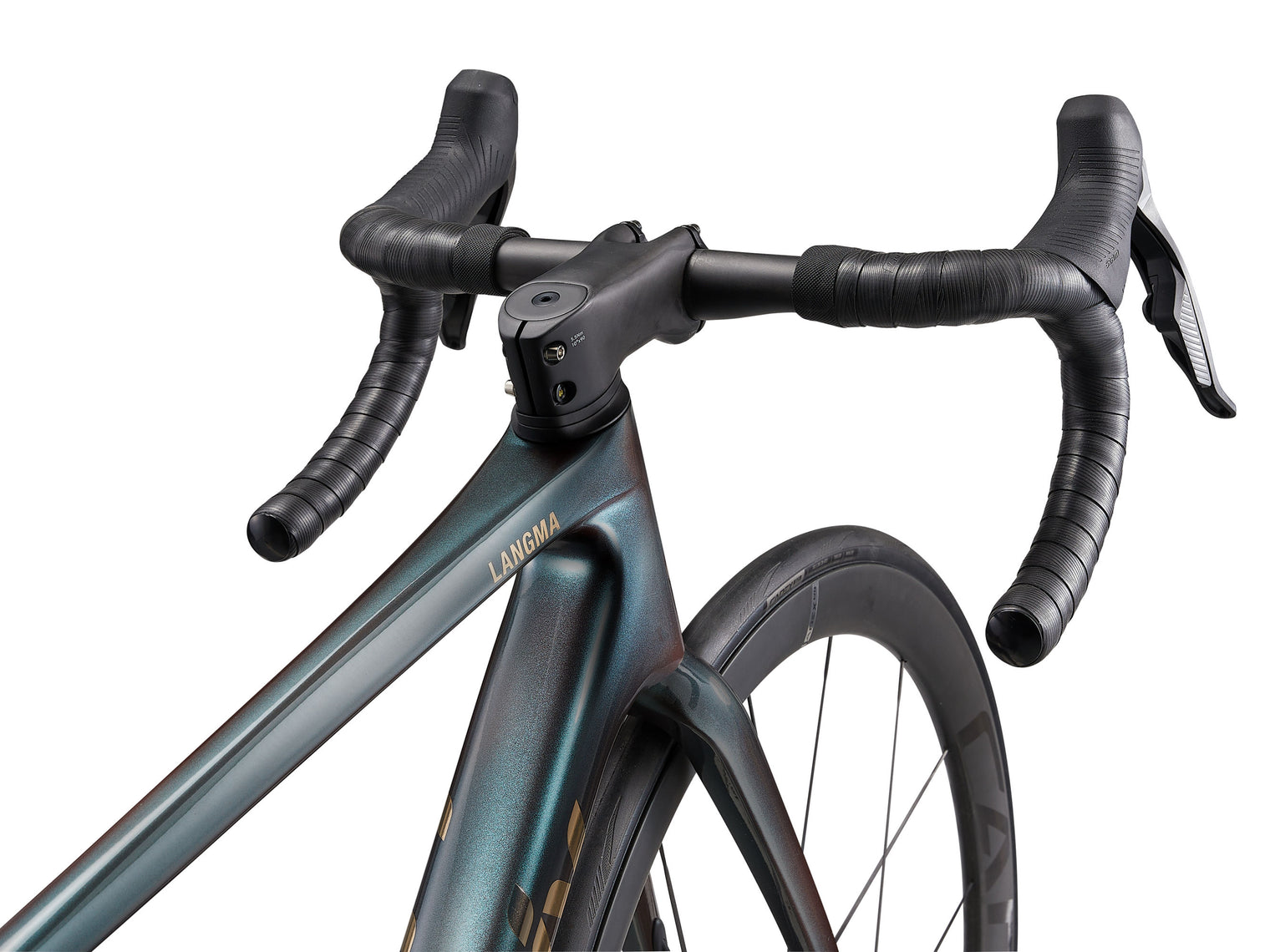

The flared handlebar injects control and confidence into those explosive sprints and bomber descents. Ready to race the cobbles? Run up to 33mm tyres, without sacrificing precise handling.

GAP-WIDENING AERO

With a truncated ellipse tube shape, the new frameset is built to slice through wind and pelotons. A new internal cable routing design delivers a streamlined cockpit and added aero advantage.

TECHS & FEATURES

×

ADVANCED SL COMPOSITE TECHNOLOGY

Liv’s Professional Grade raw carbon material is woven in our own composite factory using our most advanced engineering and construction methods including: Continuous Fiber Technology to add strength while reducing weight; Carbon Nanotube Technology resin to improve impact resistance; and Fusion Process for lighter, stronger frame junctions.

×

COMPACT ROAD DESIGN

When introduced by Giant in 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

×

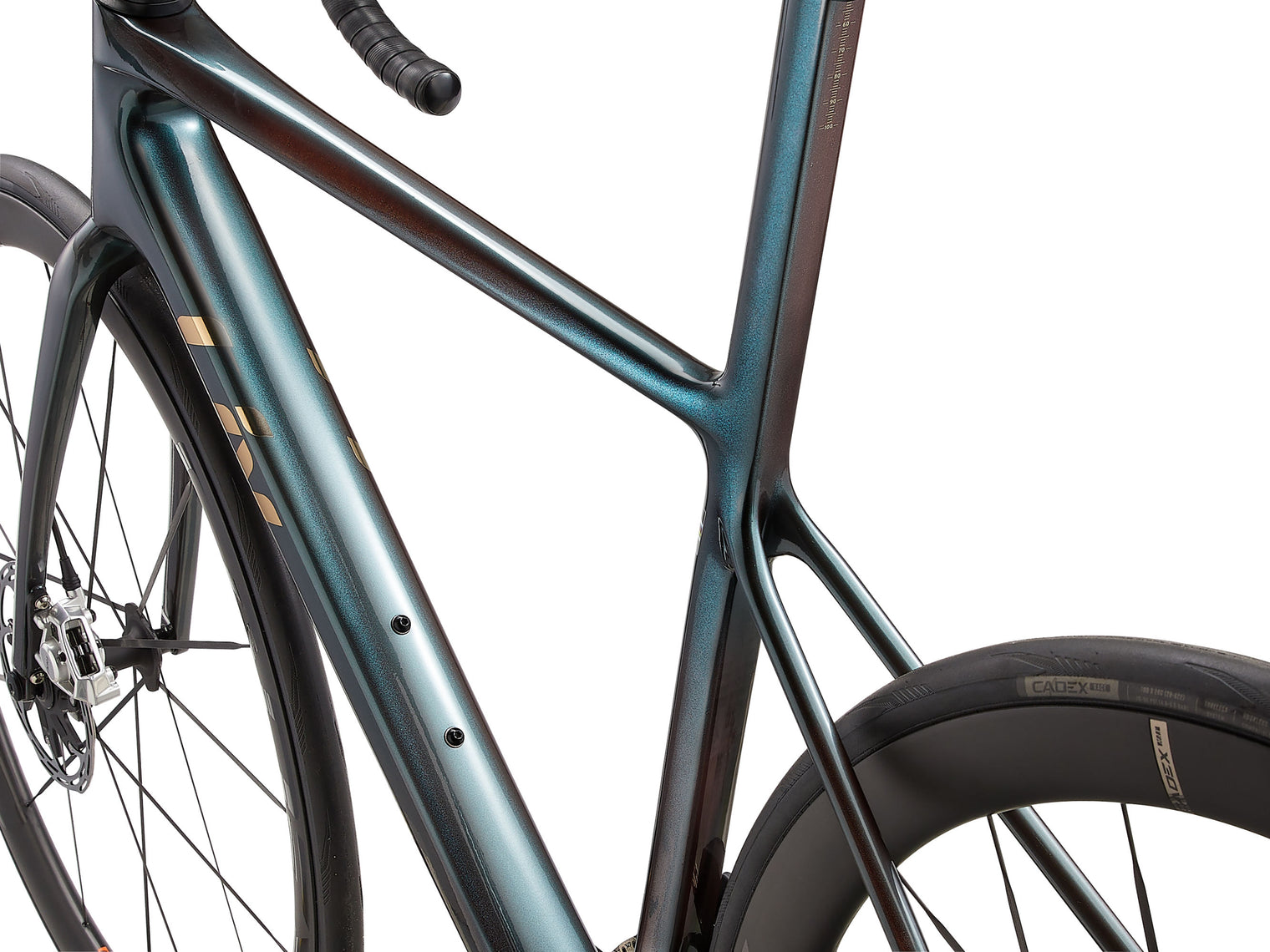

INTEGRATED SEATPOST

Designed as a key performance factor in the overall frameset, the integrated seatpost saves up to 45 grams compared to standard composite posts, while improving aerodynamics and adding road-smoothing compliance.

×

POWERCORE

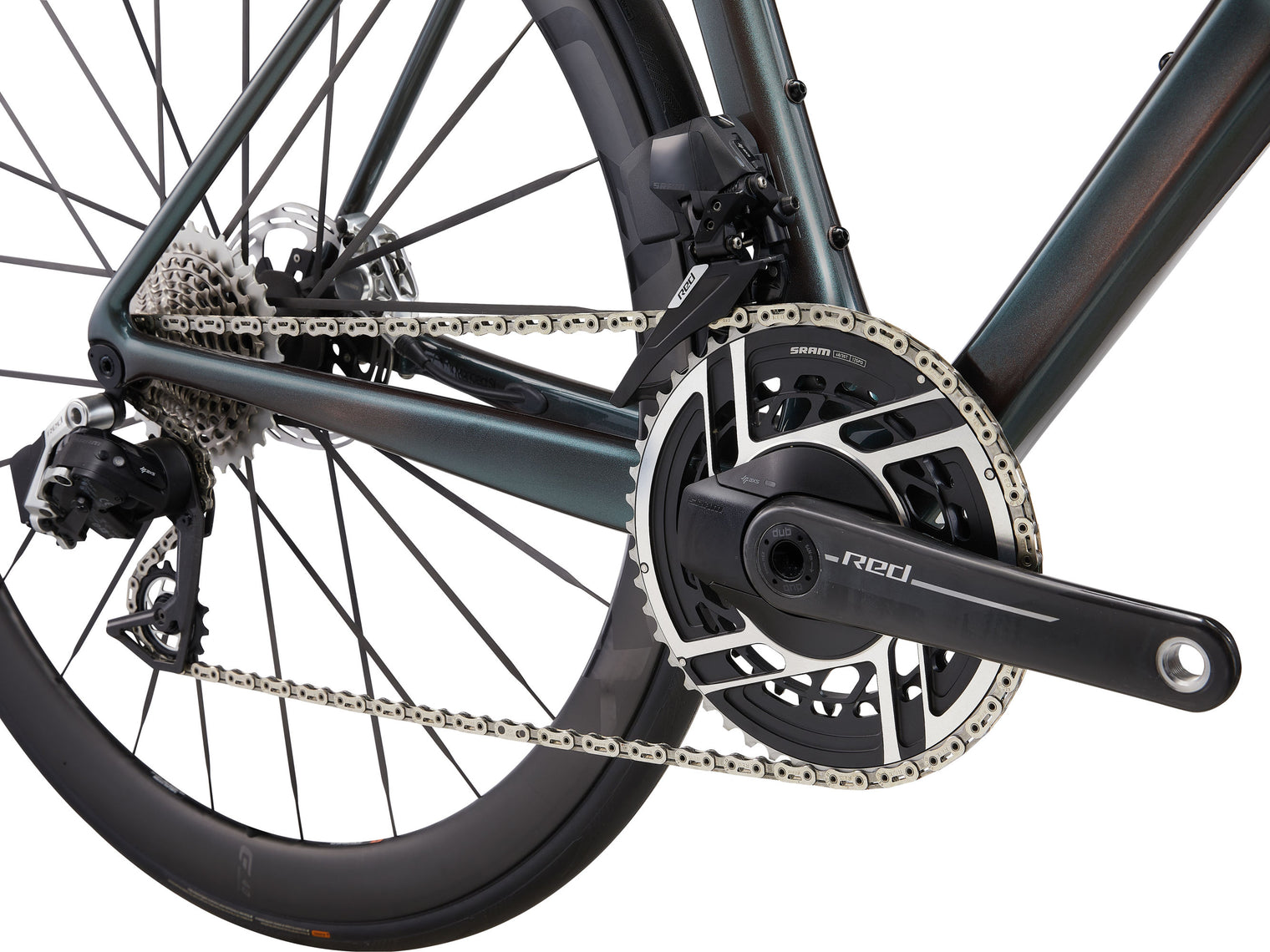

A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

×

OVERDRIVE AERO

Found inside the head tube of the all-new EnviLiv range, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.

×

TUBELESS SYSTEM

Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
L
XS
S
M
L
ASEAT TUBE LENGTH (mm)
640
680
720
760
BSEAT TUBE ANGLE
75.0°
74.5°
74.0°
73.5°
CTOP TUBE LENGTH (mm)
508
524
540
555
DHEAD TUBE LENGTH (mm)
120
135
155
175
EHEAD TUBE ANGLE
71.0°
72.0°
72.5°
72.5°
FFORK RAKE (mm)
49
49
49
49
GTRAIL (mm)
68
61
58
58
HWHEELBASE (mm)
973
977
984
994
ICHAIN STAY LENGTH (mm)
405
405
405
405
JBOTTOM BRACKET DROP (mm)
72
69.5
69.5
69.5
KSTACK (mm)
517
532
553
572
LREACH (mm)
370
377
382
386
MSTAND OVER HEIGHT (mm)
707
736
763
783
NSTEM LENGTH (mm)
80
90
100
110
OCRANK LENGTH (mm)
165
170
170
172.5
PWHEEL SIZE
700C
700C
700C
700C
SIZES
XS, S, M, L
COLOURS
Tahitian Pearl / Chrome
FRAME
Advanced SL-Grade Composite, 12x142mm thru-axle, integrated seatpost, disc
FORK
Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
HANDLEBAR
Liv Contact SLR XS:34/36cm, S:36/38cm, M:38/40cm, L:39/42cm
GRIPS
Liv Stratus Elite 2.0
STEM
Giant Contact SLR AeroLight XS:80mm, S:90mm, M:100mm, L:110mm
SEATPOST
Liv Integrated Seatpost, -5/+15mm offset
SADDLE
CADEX AMP
SHIFTERS
SRAM RED AXS
FRONT DERAILLEUR
SRAM RED AXS
REAR DERAILLEUR
SRAM RED AXS
BRAKES
SRAM RED eTap hydraulic; SRAM PaceLine X rotors [F] 160mm, [R] 140mm
BRAKE LEVERS
SRAM RED AXS
CASSETTE
SRAM RED, 12-speed, 10x33
CHAIN
SRAM RED
CRANKSET
SRAM RED AXS, 35/48 with power meter XS:165mm, S:170mm, M:170mm, L:172.5mm
BOTTOM BRACKET
SRAM DUB
RIMS
CADEX Max 40 WheelSystem, [F] 40mm, [R] 40mm
HUBS
[F] CADEX R3 Hub, CenterLock, 12mm thru-axle; [R] CADEX R3-C48 Aero Hub, 48T ratchet driver, CenterLock, 12mm thru-axle
SPOKES
CADEX Aero Carbon Spoke
TYRES
CADEX Race GC, tubeless, 700x28c (28mm), folding
EXTRAS
Computer mount, tubeless prepared, 33mm max tyre size
MAX TYRE CLEARANCE
33mm
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
