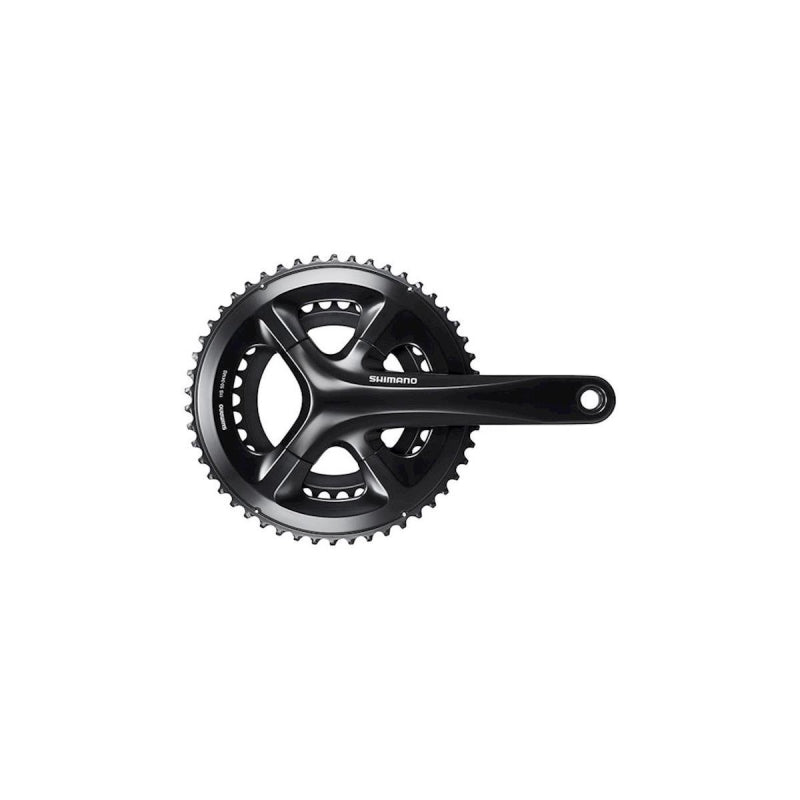

Shimano FC-RS510 Front Crankset 175MM 52-36T Black

Shimano FC-RS510 Front Crankset 52-36T 172.5mm 11-Speed

This 2-piece crank uses an outboard, 24mm bottom bracket and features 2×11 speed 52-36 chainrings. It uses a 4-arm construction and is compatible with modern disc brake road frames.

FEATURES

• Affordable and high-end style crankset
• 4-arm crankset for 11-speed drivetrain

PRODUCT SPECIFICATIONS

Model No: FC-RS510
Series: Shimano
Colour: Black
Rear speeds: 11
Compatible chain: LinkGlide, HG 11-speed
Chain line (mm): 43.5
P.C.D. left / right (mm): 110
P.C.D. (mm): 110
Spider/gear arms: 4
Chainring combination: 52-36T
Q-factor (mm): 150
Crank arm length (mm)|172.5: Yes
Optional chain guard|Without chain/bash guard: Yes
2-Piece Crankset: Yes
Compatible bottom bracket type|Outboard: Yes
Recommended bottom bracket|Threaded (normal): BB-RS501
Recommended bottom bracket|Press-Fit: BB-RS500-PB
Threaded bottom bracket shell width (mm)|68: Yes
Threaded bottom bracket shell width (mm)|70: Yes
Crank fixing screw included: Yes
