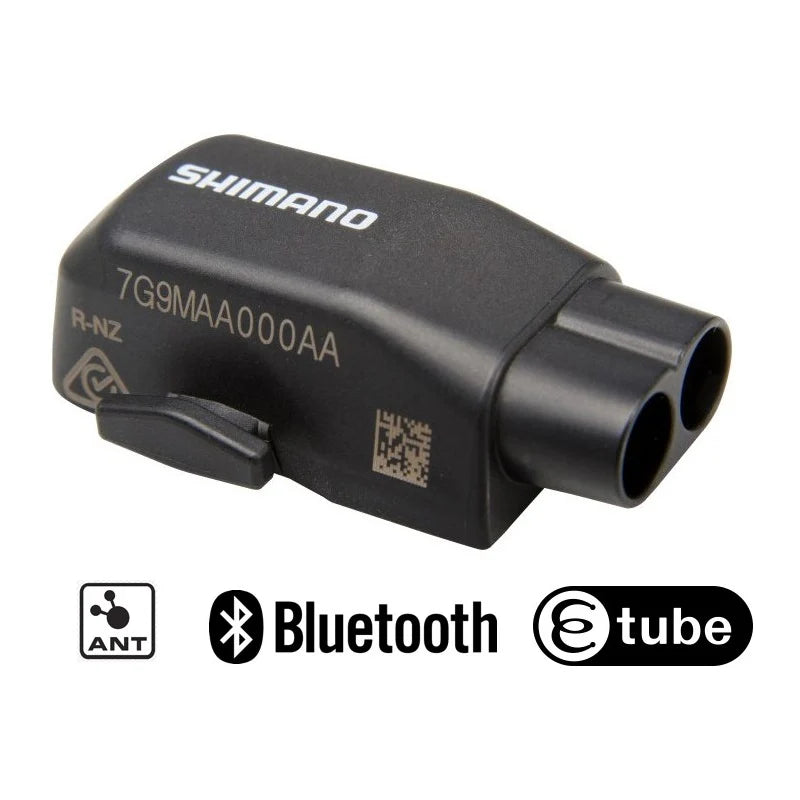

Shimano EW-WU101 Wireless Unit For DI2 System E-tube Port X2

Shimano EW-WU101 - Di2 D-Fly ANT+ Bluetooth Wireless Unit
Shimano introduced the Di2 Wireless Unit SM-EWW01 (previous version of the EW-WU101) featuring the new Shimano D-Fly Data Management system. This wireless component added another dimension to the Di2 experience by wirelessly connecting riders to their Di2 data through a cycling computer.
The Di2 wireless unit is a compact wireless data transmitter. It easily plugs into the E-tube wiring system and seamlessly connects Di2 equipped bikes to a compatible wireless cycle computer. Shimano D-Fly transmits data through a proprietary private ANT wireless protocol and allows riders to monitor Di2 gear position, battery life, as well as some other common rider data functions. The Di2 Wireless Unit is powered by the same Di2 battery that powers the Di2 shifting system. It is compatible with ANT+ devices like the Shimano Action Camera CM-1000 or the PRO SCIO ANT+ cycling computer.
EW-WU101 Di2 D-Fly ANT+ Wireless Unit
The most groundbreaking technology featuring on the new EW-WU101 is a new wireless Bluetooth connection to Shimano's E-TUBE program, which is the system Shimano uses to set up and control the Di2 shifting behaviour. Through Bluetooth technology riders or mechanics can wirelessly communicate with the EW-WU101 wireless data transmitter unit via a computer, tablet or a smart phone. As well as allowing wireless workshop customizability, it allows riders to customize their shifting preferences on the trail via an app on their smartphones.
Attention: The new integrated BT-DN110 battery or the external battery mount (BM-DN100) is strictly required.
Wireless Connections
Smart phone: Bluetooth wireless connectivity through E-Tube Wireless App; Functions: Drivetrain customization, firmware update
Tablet: Bluetooth wireless connectivity through E-Tube Project Wireless App; Function: Drivetrain customization, firmware update, error check, pre-set
Alternatively, the connection to the tablet / smartphone also be made by the wireless unit in the SC-MT800 Information Display.
