• Liv 2025 Devote Advanced 1

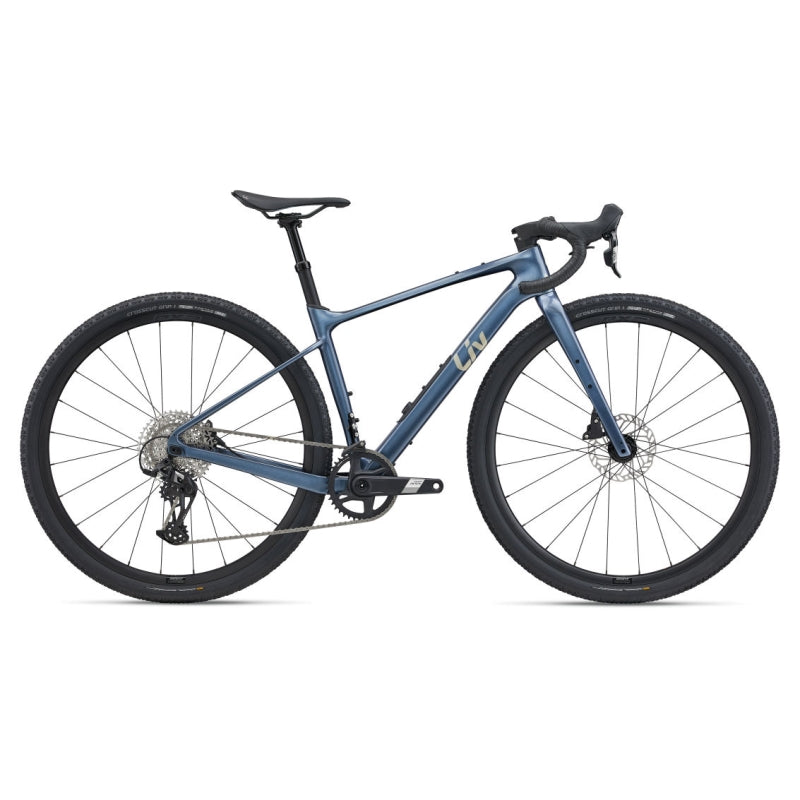

Liv 2025 Devote Advanced 1

$4,199.00
Colour
Size
Loading locations...

THE DEVOTE ADVANCED IS YOUR GO-TO FOR GOING FAST, WHEREVER THE GRAVEL MUSE MAY CALL YOU. BALANCING SPEED AND RUGGEDNESS, THIS VERSATILE BIKE IS READY FOR RACE DAY, REST DAY, AND MULTI-DAY ADVENTURES.

KEY PERFORMANCE FACTORS

Ultralight agility

An ultralight Advanced-grade composite frame and fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.

Superior compliance and control

The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. Select models also feature the Contact D-Fuse seatpost and one is equipped with a dropper post. Or swap out for your preferred set-up. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.

Unmatched versatility

Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tyre clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tyres and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.

×

D-FUSE SEATPOST

The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.

×

OVERDRIVE

Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
L
XS
S
M
L
ASEAT TUBE LENGTH (mm)
390
420
465
500
BSEAT TUBE ANGLE
74.5° | 74.4°
74.5° | 74.4°
74.5° | 74.4°
74.5° | 74.4°
CTOP TUBE LENGTH (mm)
525 | 525
535 | 535
545 | 545
555 | 555
DHEAD TUBE LENGTH (mm)
90
110
140
160
EHEAD TUBE ANGLE
70.0° | 69.9°
70.5° | 70.4°
71.0° | 70.9°
71.0° | 70.9°
FFORK RAKE (mm)
50
50
50
50
GTRAIL (mm)
78.4 | 82
75 | 78.5
71.6 | 75.1
71.6 | 75.0
HWHEELBASE (mm)
1012 | 1022
1019 | 1029
1028 | 1036
1043 | 1052
ICHAIN STAY LENGTH (mm)
425
425
435
430
JBOTTOM BRACKET DROP (mm)
80 | 81
80 | 81
80 | 81
80 | 81
KSTACK (mm)
523 | 520
544 | 545
574 | 575
593 | 594
LREACH (mm)
369 | 379
384 | 383
386 | 385
391 | 389
MSTAND OVER HEIGHT (mm)
681 | 688
708 | 715
748 | 755
779 | 786
OSTEM LENGTH (mm)
50 | 60
60 | 70
70 | 80
80 | 100
PCRANK LENGTH (mm)
165
170
172.5
172.5
QWHEEL SIZE
700
700
700
700
