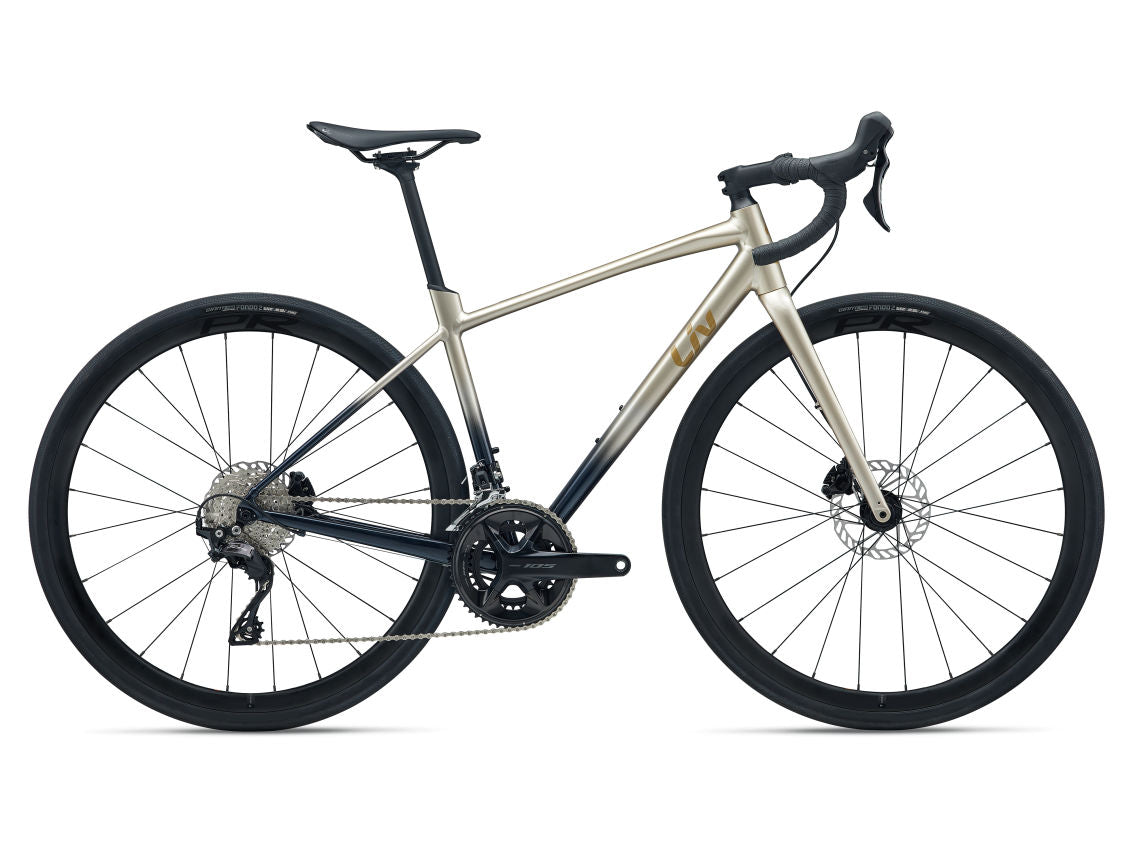

• Liv Avail AR 1 MY26

Liv Avail AR 1 MY26

$2,699.00
Colour
Size
Loading locations...

WHETHER IT’S NAVIGATING ASPHALT OR VENTURING THROUGH AN UNPAVED SHORTCUT, THE AVAIL AR IS SMOOTH ON FLATS, SPRY ON CLIMBS AND CONFIDENT ON DESCENTS.

Key Performance Factors

Comfort

The lightweight ALUXX aluminium frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.

Control

The 32c tyres provide stability on both road and off-road surfaces, with compatibility for tubeless tyres up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.

Carrying Capacity

Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.

TECHS & FEATURES

×

ALUXX ALUMINIUM TECHNOLOGY

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

×

COMPACT ROAD DESIGN

When introduced by Giant in 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

×

D-FUSE SEATPOST

The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.

×

OVERDRIVE

Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
XS
S
M
ASEAT TUBE LENGTH (mm)
430
465
500
BSEAT TUBE ANGLE
75.0°
74.5°
74.0°
CTOP TUBE LENGTH (mm)
515
525
540
DHEAD TUBE LENGTH (mm)
135
150
170
EHEAD TUBE ANGLE
70.5°
72.0°
72.0°
FFORK RAKE (mm)
45
45
45
GTRAIL (mm)
73
63.5
63.5
HWHEELBASE (mm)
998
990
1000
ICHAIN STAY LENGTH (mm)
420
420
420
JBOTTOM BRACKET DROP (mm)
70
70
70
KSTACK (mm)
530
550
569
LREACH (mm)
372
372
377
MSTAND OVER HEIGHT (mm)
687
716
744
OSTEM LENGTH (mm)
70
80
90
PCRANK LENGTH (mm)
165
170
170
SIZES
XS, S, M
COLOURS
Sandshell/Cold Night
FRAME
ALUXX-grade aluminium, 12x142mm thru-axle, disc
FORK
Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
SHOCK
N/A
HANDLEBAR
Liv D-Fuse SL, 31.8mm XS:38cm, S:40cm, M:40cm
GRIPS
Liv All Condition
STEM
Giant Contact XS:70mm, S:80mm, M:90mm
SEATPOST
Giant D-Fuse, composite, 14mm offset
SADDLE
Liv Approach
PEDALS
N/A
SHIFTERS
Shimano 105
FRONT DERAILLEUR
Shimano 105
REAR DERAILLEUR
Shimano 105
BRAKES
Shimano 105 hydraulic, Giant MPH rotors, [F]160mm, [R]160mm
BRAKE LEVERS
Shimano 105
CASSETTE
Shimano 105, 12-speed, 11x36
CHAIN
KMC X12
CRANKSET
Shimano 105, 34/50 XS:165mm, S:170mm, M:170mm
BOTTOM BRACKET
Shimano BB-RS501
RIMS
Giant P-R2, [F]30mm, [R]30mm
HUBS
Giant alloy, 12mm thru-axle
SPOKES
Sapim
TYRES
Giant Gavia Fondo 2, 700x32c, tubeless
EXTRAS
Tubeless prepared, 38mm max tyre size
MAX TYRE CLEARANCE
38mm
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
