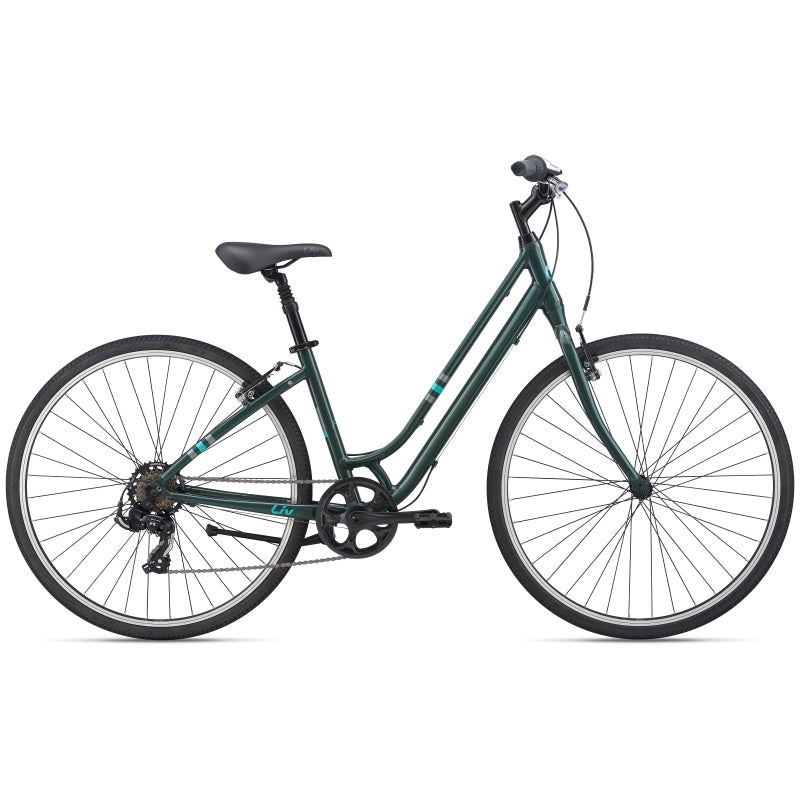

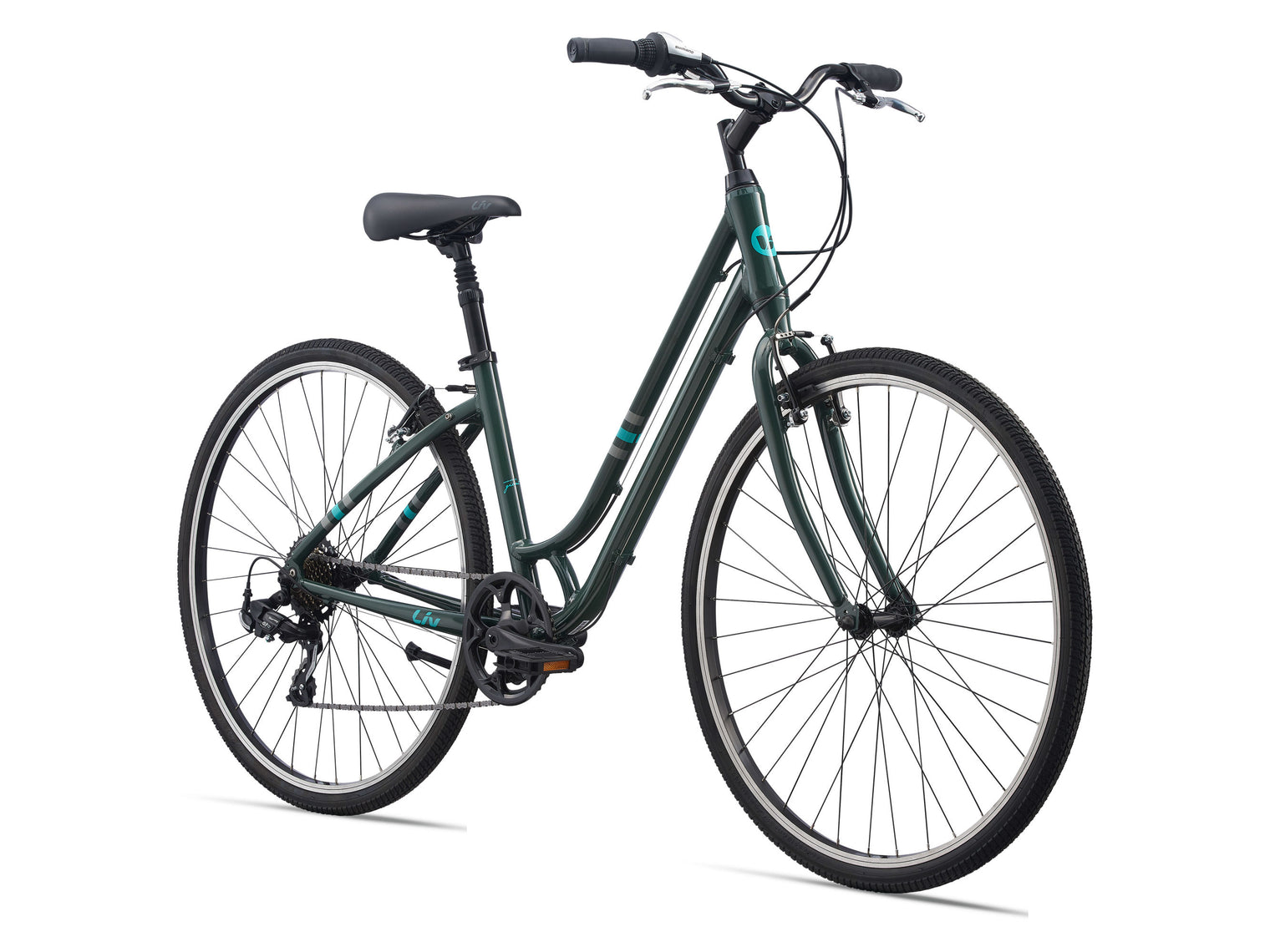

Liv Flourish 4 2022

$499.00 $699.00
Colour
Size
Loading locations...

Make Ordinary Trips Stylish and Fun

Ordinary trips around town become more enjoyable with the Flourish, blending urban style and practicality.

Key Performance Factors

Easy Breezy
Lightweight ALUXX-Grade Aluminium frame with a classy step-through design makes zipping around town simple and comfortable.

Comfort
Suspension seatpost and cushioned spring saddle smooth out bumpy sidewalks and city roads for a stable, comfortable ride.

Stylish Versatility
Equipped with a chain cover, this bike balances urban style with smart, protective features to keep you looking sharp and riding safely.

TECHS & FEATURES

×

ALUXX ALUMINIUM TECHNOLOGY

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
XS
S
M
A SEAT TUBE LENGTH (mm)
355.5
406
457
B SEAT TUBE ANGLE
73.5°
73.0°
73.0°
C TOP TUBE LENGTH (mm)
545
565
585
D HEAD TUBE LENGTH (mm)
130
150
190
E HEAD TUBE ANGLE
69.0°
69.5°
69.5°
F FORK RAKE (mm)
45
45
45
G TRAIL (mm)
87.1
83.8
83.8
H WHEELBASE (mm)
1067
1078
1100
I CHAIN STAY LENGTH (mm)
455
455
455
J BOTTOM BRACKET DROP (mm)
70
70
70
K STACK (mm)
586
607
644
L REACH (mm)
371
379
388
M STAND OVER HEIGHT (mm)
419
421
432
O STEM LENGTH (mm)
85
85
105
P CRANK LENGTH (mm)
170
170
175
Q WHEEL SIZE
700C
700C
700C
GRIPS
Liv Comfort
HANDLEBAR
Alloy, low rise, 25.4mm
PEDALS
Platform
SADDLE
Liv Comfort
SEATPOST
Alloy, suspension, 30.9
STEM
MTS-291, 25.4mm XS:85mm, S:85mm, M:105mm
BOTTOM BRACKET
Sealed cartridge
BRAKE LEVERS
Alloy
BRAKES
Alloy, direct pull
CASSETTE
Shimano MF-TZ500, 14x34
CHAIN
KMC Z7
CRANKSET
Alloy, 42t XS:170mm, S:170mm, M:175mm
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
Shimano Tourney
SHIFTERS
Shimano SL-RS45, 1x7
FORK
High-tensile steel
FRAME
ALUXX-Grade Aluminium
EXTRAS
40mm max tyre size, kickstand
HUBS
Alloy, 36h
RIMS
Giant alloy
SPOKES
Stainless
TYRES
Kenda K-192, 700x38c
