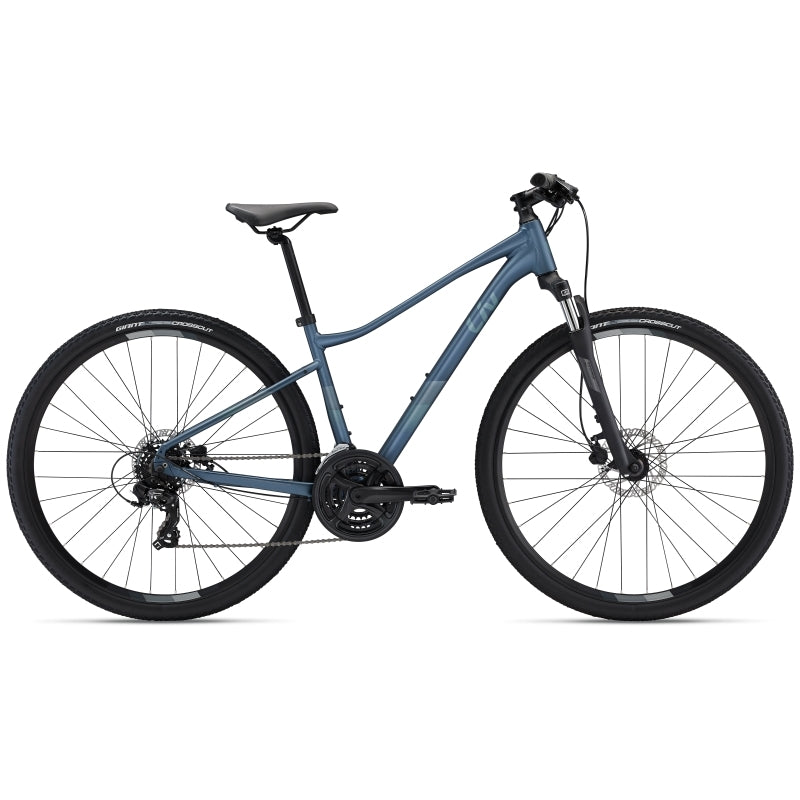

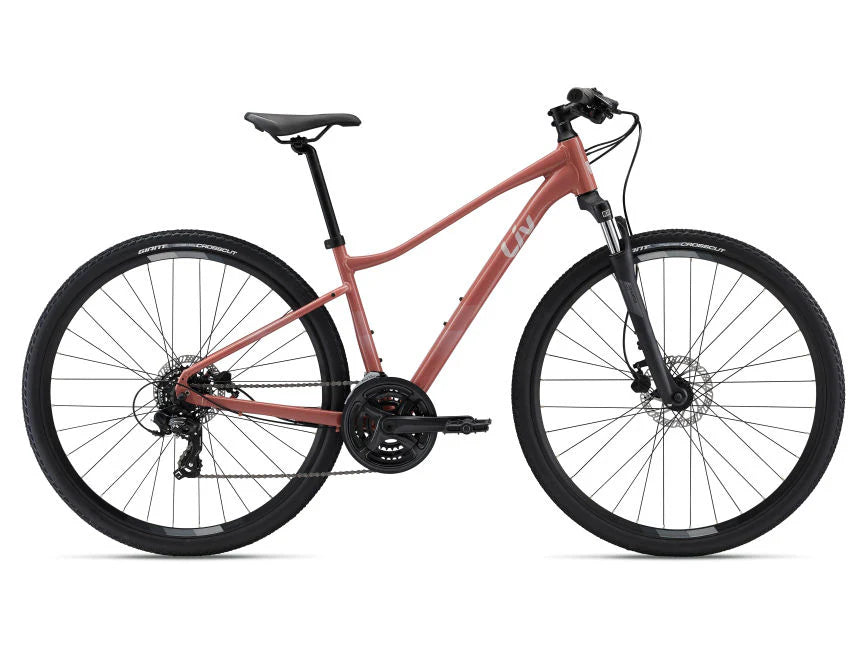

Liv Rove 4

$599.00 $849.00
Colour
Size
Loading locations...

Main Street, Side Streets or Forest Trails. Your Choices Are Limitless with the Versatile Rove.

Key Performance Factors

Dirt-Road Ready
A suspension fork offers more comfort and control when you leave the pavement for gravel and trails.

Stability and Control
Responsive, reliable disc brakes help you keep your speed in check, even in wet weather.

Useful
Integrated mounts let you attach a rear cargo rack, and the low standover height makes getting on and off less a hassle when you’re running errands by bike.

TECHS & FEATURES

×

ALUXX ALUMINIUM TECHNOLOGY

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

×

D-FUSE SEATPOST

The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
XS
S
M
A SEAT TUBE LENGTH (mm)
380
420
460
B SEAT TUBE ANGLE
74.0°
73.5°
73.0°
C TOP TUBE LENGTH (mm)
550
570
590
D HEAD TUBE LENGTH (mm)
110
120
135
E HEAD TUBE ANGLE
70.5°
70.5°
70.5°
F FORK RAKE (mm)
42
42
42
G TRAIL (mm)
85.1
85.1
85.1
H WHEELBASE (mm)
1059
1074
1089
I CHAIN STAY LENGTH (mm)
450
450
450
J BOTTOM BRACKET DROP (mm)
62
62
62
K STACK (mm)
601
611
625
L REACH (mm)
378
389
399
M STAND OVER HEIGHT (mm)
679
691
708
O STEM LENGTH (mm)
70
80
80
P CRANK LENGTH (mm)
165
170
170
Q WHEEL SIZE
700C
700C
700C
GRIPS
Liv Ergo, dual density
HANDLEBAR
Giant Sport XC, 31.8mm
PEDALS
Platform
SADDLE
Liv Sport Comfort
SEATPOST
Giant D-Fuse, alloy
STEM
\-
Giant Sport XS:70mm, S:80mm, M:80mm
BOTTOM BRACKET
Sealed cartridge
BRAKE LEVERS
Tektro
BRAKES
Tektro HD-M276, hydraulic disc
BRAKES ROTOR
[F]160mm, [R]160mm
CASSETTE
CS-HG200, 12x32
CHAIN
KMC Z7
CRANKSET
Forged alloy, 28/38/48 XS:165mm, S:170mm, M:170mm
FRONT DERAILLEUR
Shimano Tourney
REAR DERAILLEUR
Shimano Tourney RD-TY300
SHIFTERS
Shimano Altus SL-M315, 3x7
FORK
SR Suntour NEX 700C, 63mm, disc
FRAME
ALUXX-Grade Aluminium, disc
HUBS
Alloy, 32h
RIMS
Giant GX Disc
SPOKES
Stainless, 14g
TYRES
Giant CrossCut, 700x42c
