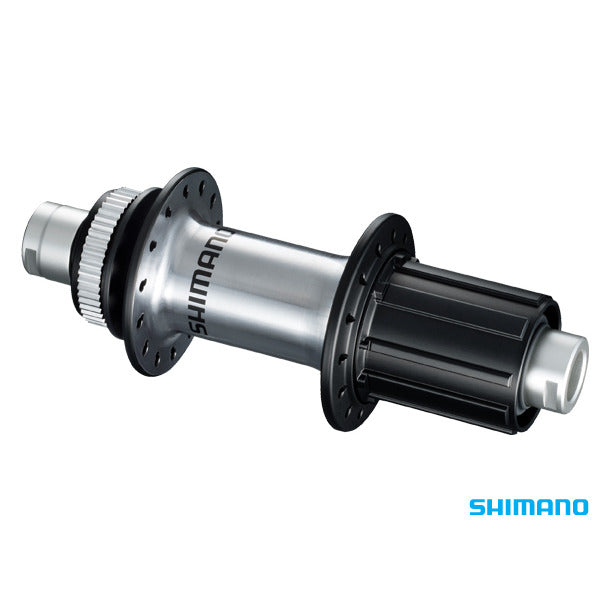

Shimano FH-RS770 Rear Freehub 12MM

Shimano FH-RS770 Rear Freehub 142x12mm 10/11-Speed Center Lock 32H

For E-Thru disc brake compatible bicycles, the RS770 Freehub blends good looks and high quality performance.

FEATURES

• Greater stability
• Higher rigidity
• Road E-Thru axle
• Easy maintenance and installation
• Simple handling and workability
• Center Lock mount

PRODUCT SPECIFICATIONS

Model No: FH-RS770
Series: Shimano Ultegra R8000 Series
Colour: Black/Silver
Average weight: 302 grams
Remarks: * Can be used for 10-speed with an additional spacer.
Color|1 Hub shell: Black/Silver
Brake type: Center Lock disc brake
Rear speeds: 11/10 *
O.L.D. (mm): 142
Spoke hole|32H: Yes
Internal serration disc brake rotor lock ring|Without: Yes
Axle fixing method: 12 mm E-Thru
Thru axle (length x inner diameter ; mm)|142 x 12: Yes
Flange distance (mm): 55.7
Offset (mm): 7.5
P.C.D. left / right (mm): 44/45
Flange diameter left / right (mm): 52.8/53.8
Spline type|HG spline L (ROAD 12/11-speed): Yes
Seal|Hub: Contact
Seal|Freehub body: Contact
