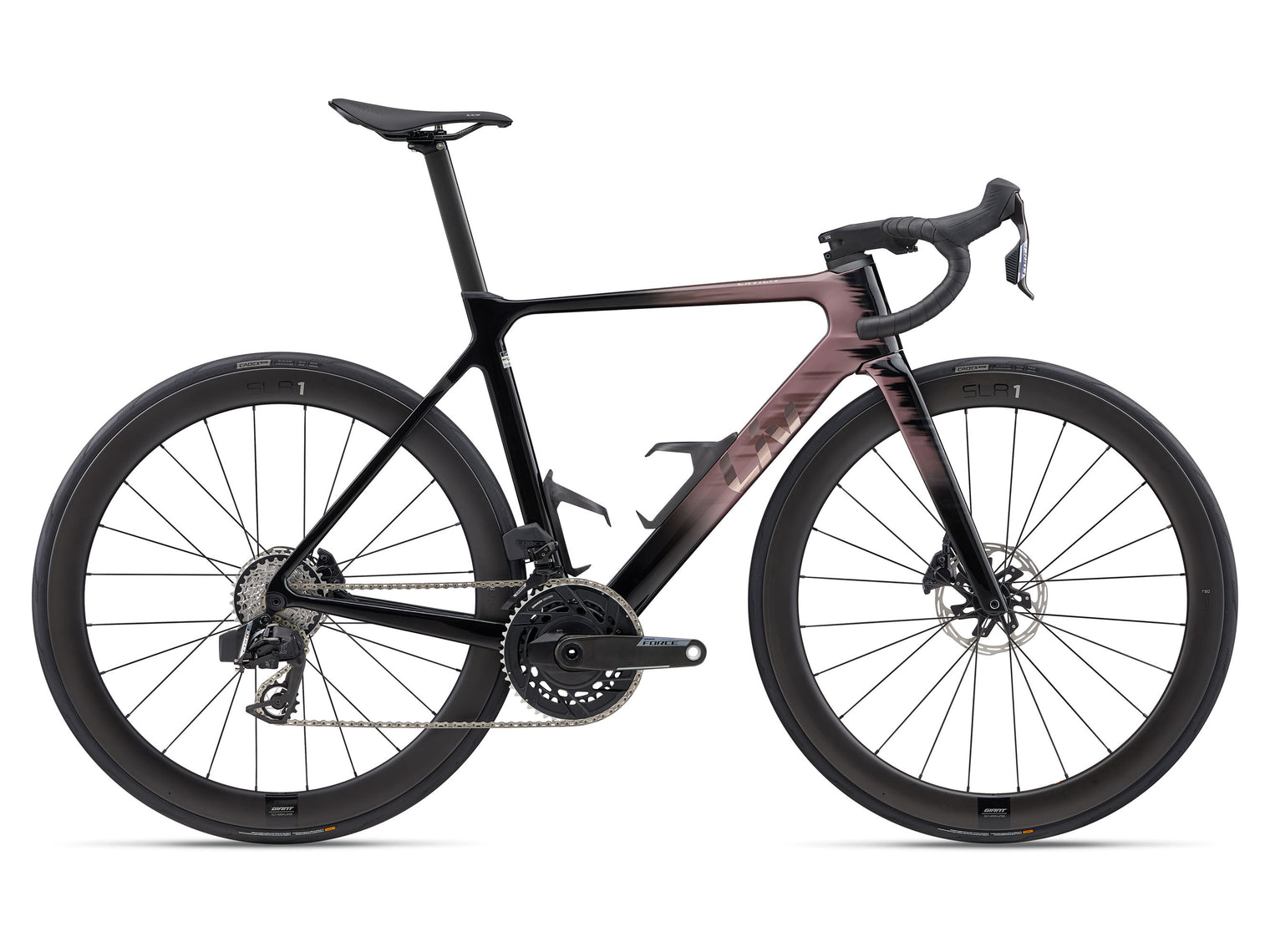

EnviLiv Advanced Pro 0 AXS MY26

$6,999.00 $8,499.00
Colour
Size
Loading locations...

FROM THE STAGE RACE BREAKAWAY TO THE FINAL CRITERIUM LAP, THE ALL-NEW ENVILIV IS MADE TO BE OUT FRONT. WE’VE REDESIGNED OUR SIGNATURE SPRINTER FOR OPTIMISED AERODYNAMIC PERFORMANCE, GREATER STIFFNESS-TO-WEIGHT ADVANTAGE, AND MAXIMUM TROPHIES.

Key Performance Factors

Optimised Aerodynamics

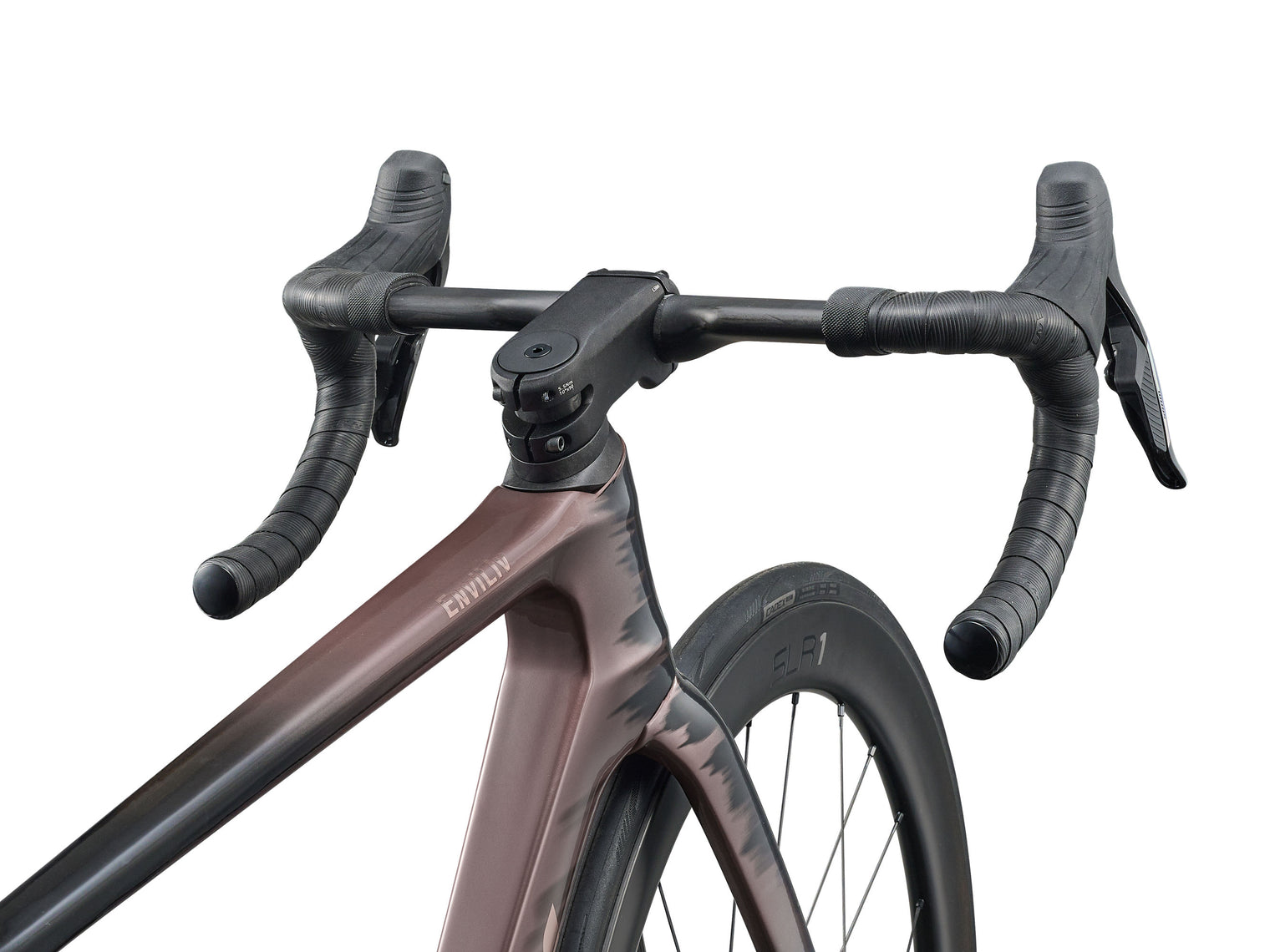

In our pursuit of maximum power and efficiency, we analyse how the bike and rider experience airflow at every speed and direction, both on the computer and in the wind tunnel. The new EnviLiv features truncated ellipse airfoil tube shapes and an all-new Contact SLR Aero cockpit, with flattened tops and deeper drops, for reduced drag and added control, and better overall aero performance.

Sprinting Efficiency

Aerodynamics are affected by many factors, two of them often seen as mutually exclusive: stiffness and weight. But the EnviLiv has found the sweet spot, with a new Advanced-grade composite frame and an Advanced SL-grade composite fork—resulting in 205 grams of weight savings over the previous generation.

Seamless Integration

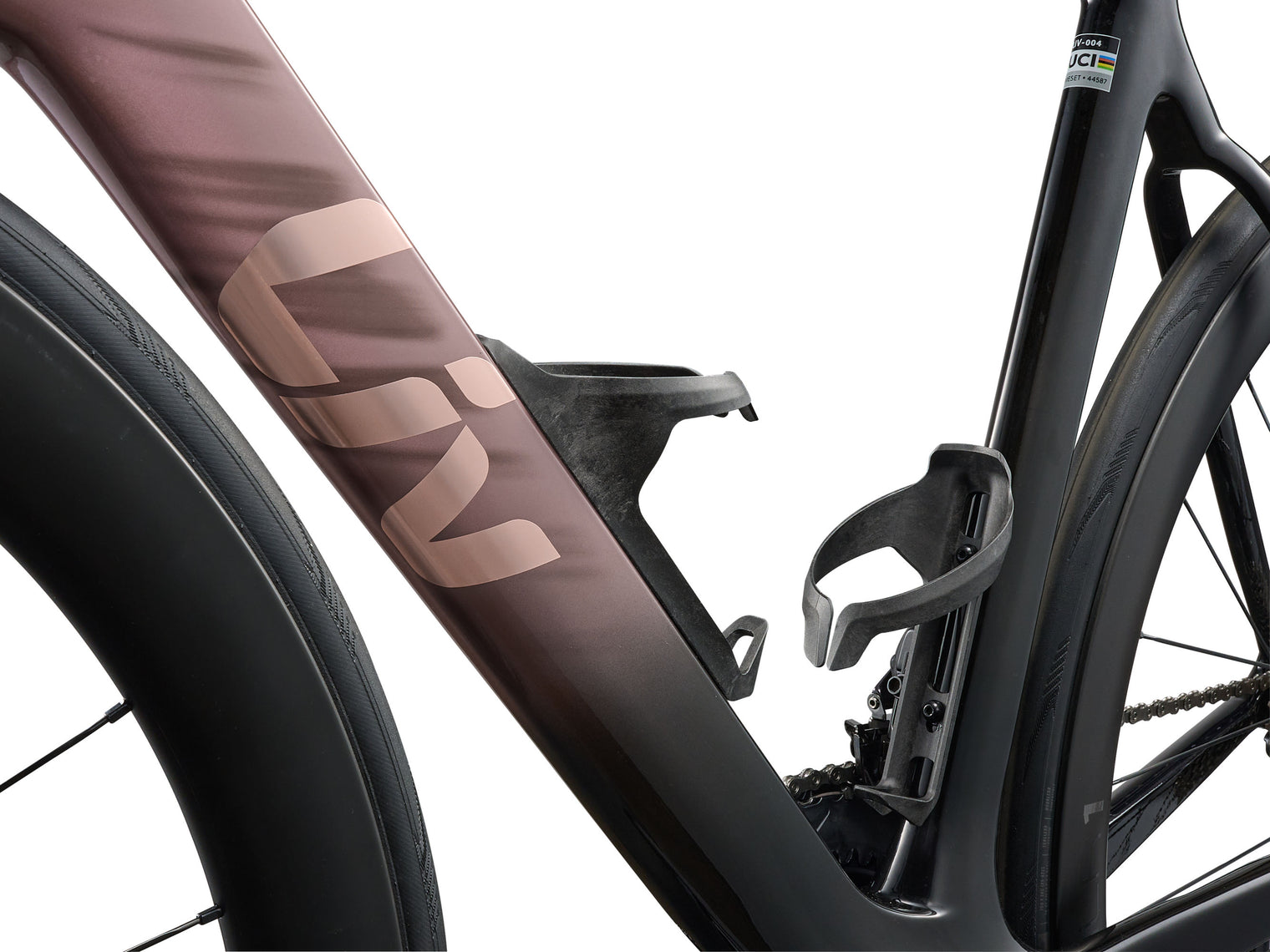

When every second matters, so does every detail. So we developed a new way to route cables through the handlebar, stem, and frame, which improves aero performance, and also makes it easier to disassemble your bike for travel and maintenance. Two aerodynamic water bottle cages flawlessly integrate with the seat tube and down tube, further reducing drag.

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.

×

AEROSYSTEM SHAPING TECHNOLOGY

Tubing shapes engineered using computational fluid dynamics (CFD) and wind-tunnel data to optimize each tube shape for superior aerodynamic performance.

×

POWERCORE

A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeterwide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

×

TUBELESS SYSTEM

Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

×

OVERDRIVE AERO

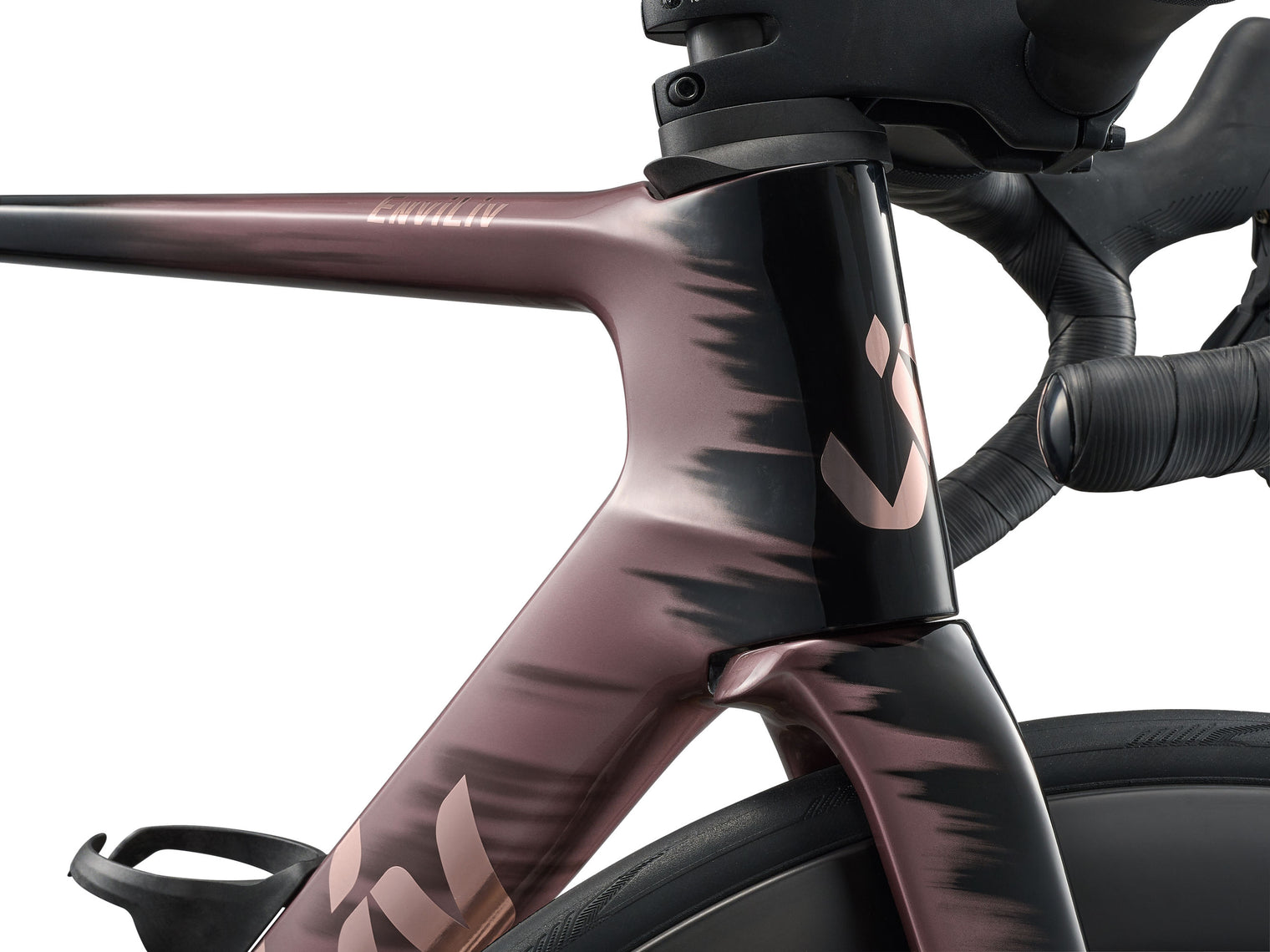

Found inside the head tube of the all-new EnviLiv range, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
XS
S
M
ASEAT TUBE LENGTH (mm)
470
500
530
BSEAT TUBE ANGLE
75.0°
74.5°
74.0°
CTOP TUBE LENGTH (mm)
508
524
540
DHEAD TUBE LENGTH (mm)
120
135
155
EHEAD TUBE ANGLE
71.0°
72.0°
72.5°
FFORK RAKE (mm)
49
49
49
GTRAIL (mm)
66.3
59.9
56.8
HWHEELBASE (mm)
973
977
984
ICHAIN STAY LENGTH (mm)
405
405
405
JBOTTOM BRACKET DROP (mm)
72
70
70
KSTACK (mm)
517
532
553
LREACH (mm)
370
377
382
MSTAND OVER HEIGHT (mm)
732
761
787
OSTEM LENGTH (mm)
80
90
100
PCRANK LENGTH (mm)
165
170
170
SIZES
XS, S, M
COLOURS
Iron Rouge
FRAME
Advanced-grade composite, 12x142mm thru-axle, disc
FORK

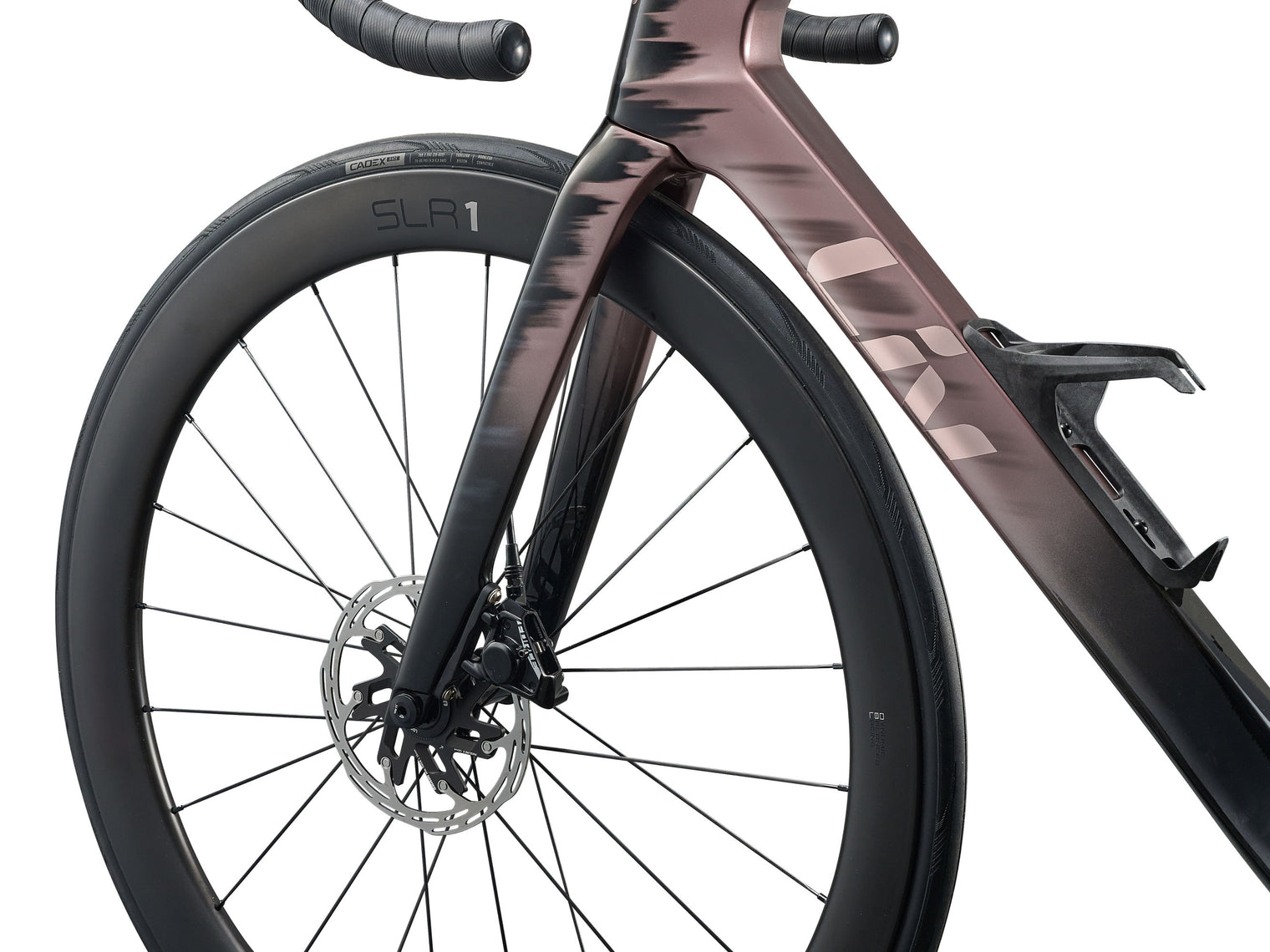

Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
SHOCK
N/A
HANDLEBAR

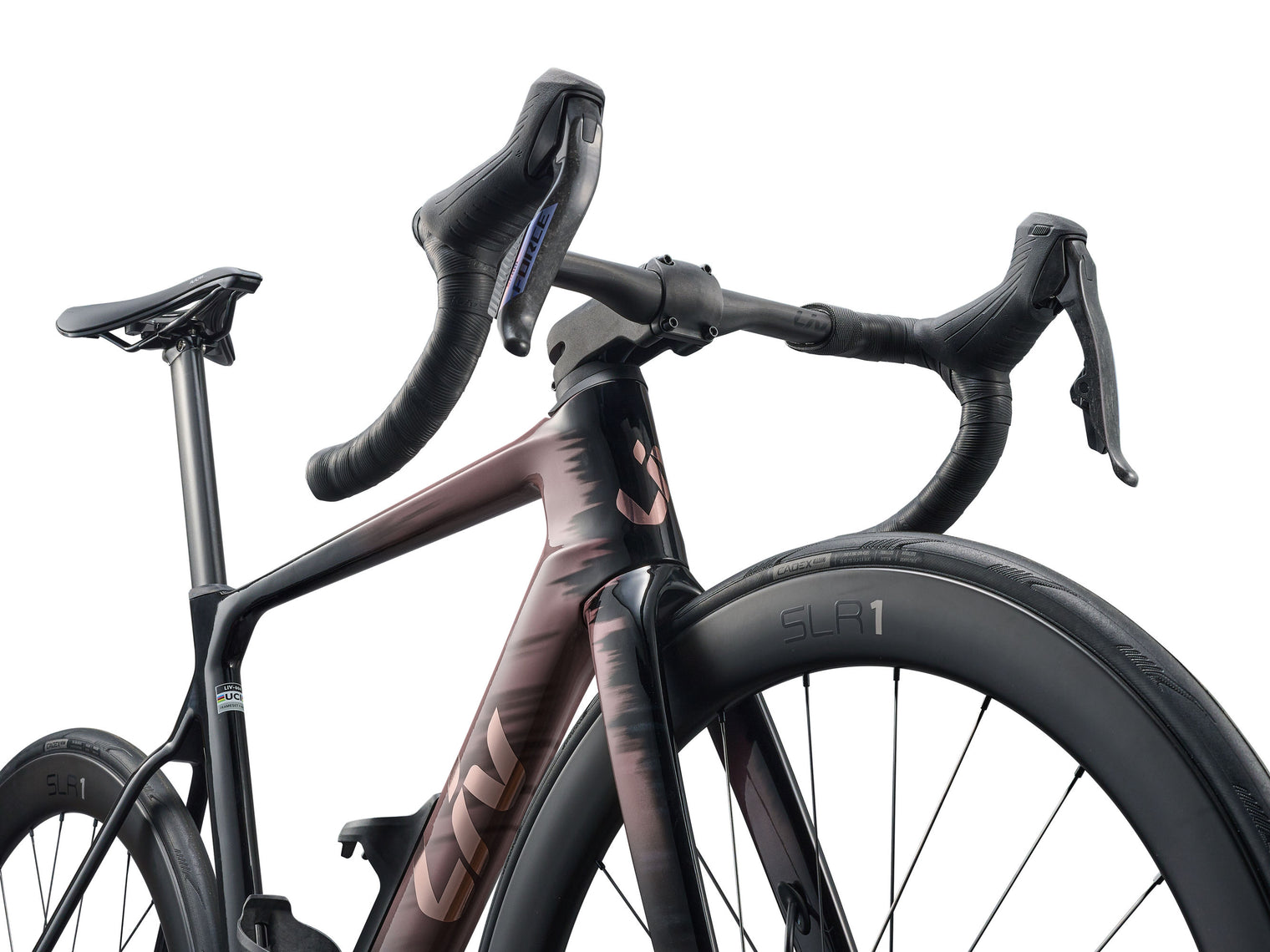

Liv Contact SLR Aero XS:36cm, S:38cm, M:40cm
GRIPS
Liv Stratus Elite 2.0
STEM
Giant Contact SL Aero, OverDrive Aero XS:80mm, S:90mm, M:100mm
SEATPOST
Giant Vector, composite, -5/+15mm offset
SADDLE
Liv Alacra SL
PEDALS
N/A
SHIFTERS
SRAM Force AXS E1
FRONT DERAILLEUR
SRAM Force AXS E1
REAR DERAILLEUR

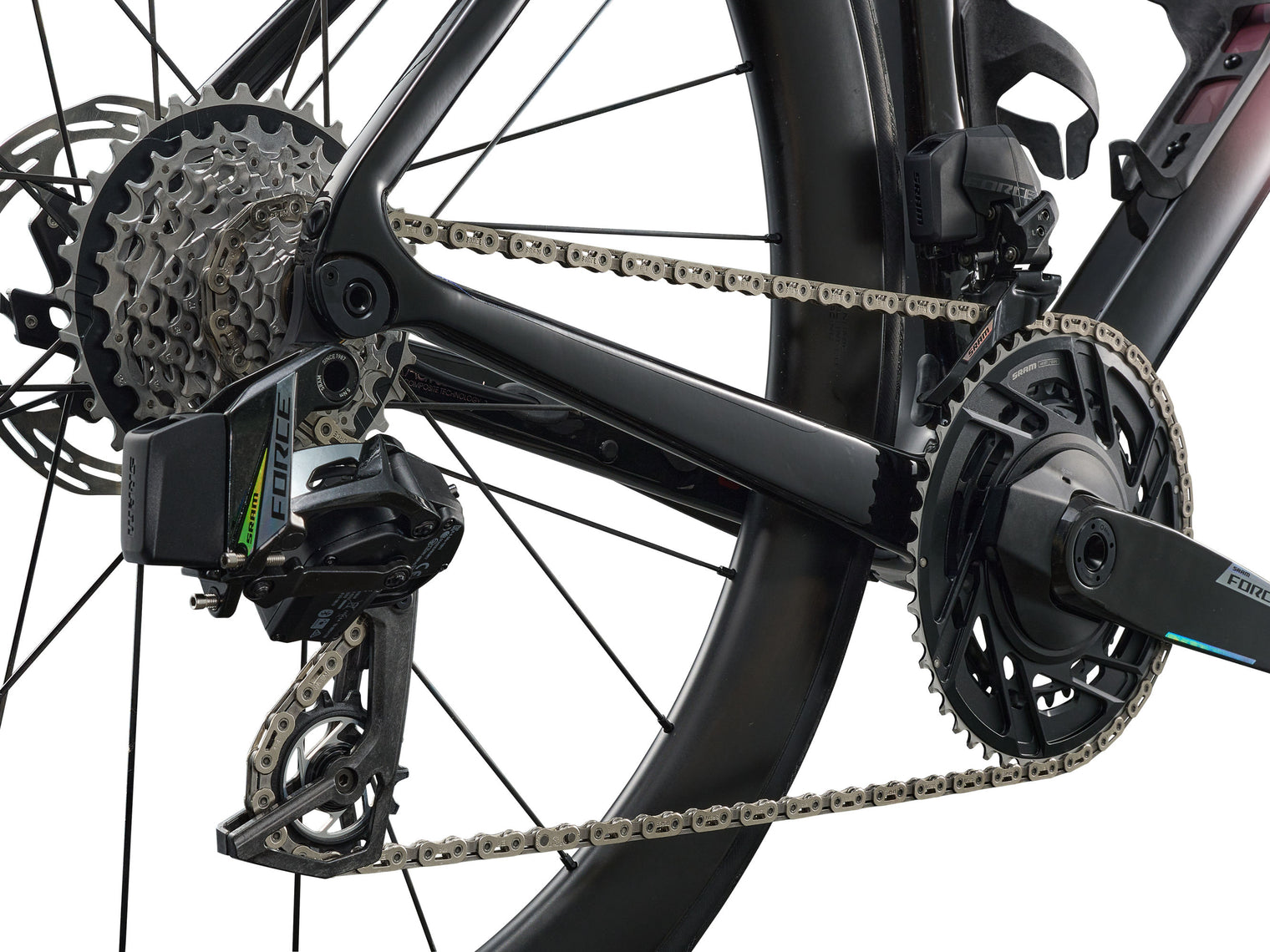

SRAM Force AXS E1
BRAKES
SRAM Force AXS E1 hydraulic, SRAM PaceLine X rotors, [F]160mm, [R]140mm
BRAKE LEVERS
SRAM Force AXS E1 hydraulic
CASSETTE
SRAM Force E1, 12-speed, 10x33
CHAIN
SRAM Force E1
CRANKSET

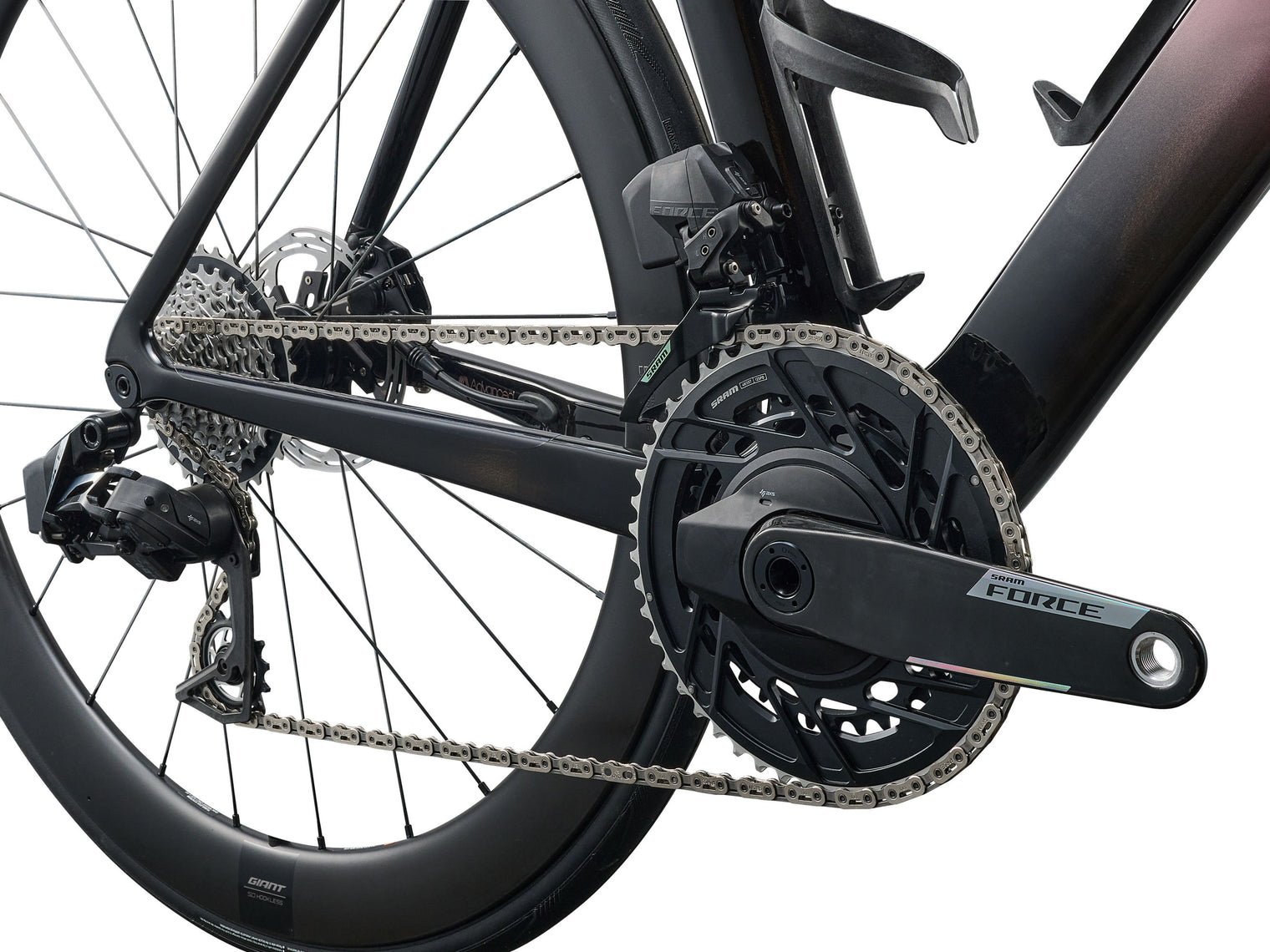

SRAM Force E1, DUB, 35/48 with power meter XS:165mm, S:165mm, M:170mm
BOTTOM BRACKET
SRAM DUB, press fit
RIMS
Giant SLR 1 50 Carbon Disc WheelSystem, [F] 50mm, [R] 50mm
HUBS
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30T ratchet driver, CenterLock, 12mm thru-axle
SPOKES
Sapim CX-Ray
TYRES
CADEX Race GC, tubeless, 700x28c, folding
EXTRAS
Computer mount, water bottle cages, tubeless prepared, 30mm max tyre size
MAX TYRE CLEARANCE
30mm
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
