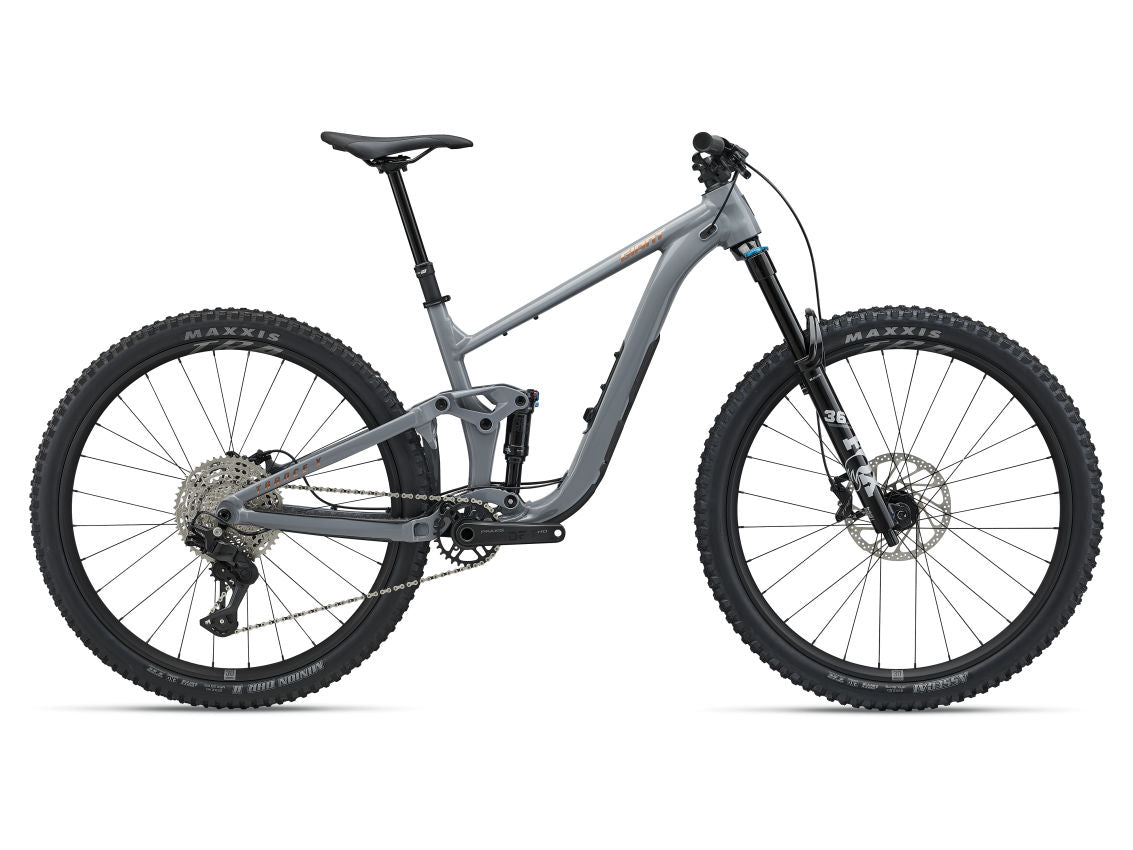

• Giant 2027 Trance X 2

Giant 2027 Trance X 2

$4,490.00
Colour
Size
Loading locations...
Shop online or in store today for the Giant 2027 Trance X 2.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
L
XL
S
LOW | MID | HIGH
M
LOW | MID | HIGH
L
LOW | MID | HIGH
XL
LOW | MID | HIGH
A SEAT TUBE LENGTH (mm)
400
425
450
475
A1 SEAT POST INSERTION DEPTH (mm)
280
305
330
355
B SEAT TUBE ANGLE
76.8° | 77.2° | 76.8°
77.2° | 77.5° | 76.9°
77.2° | 77.5° | 76.8°
77.2° | 77.5° | 76.8°
C TOP TUBE LENGTH (mm)
571 | 570 | 569
602 | 601 | 600
624 | 623 | 622
657 | 656 | 655
D HEAD TUBE LENGTH (mm)
100
105
115
125
E HEAD TUBE ANGLE
64.4° | 64.8° | 65.1°
64.4° | 64.8° | 65.1°
64.4° | 64.8° | 65.1°
64.4° | 64.8° | 65.1°
F FORK RAKE (mm)
44
44
44
44
G TRAIL (mm)
118.1 | 116.0 | 114.4
118.1 | 116.0 | 114.4
118.1 | 116.0 | 114.4
118.1 | 116.0 | 114.4
H WHEELBASE (mm)
1190 | 1190 | 1189
1222 | 1222 | 1221
1246 | 1246 | 1245
1281 | 1280 | 1280
I CHAIN STAY LENGTH (mm)
440 | 439 | 438
440 | 439 | 438
440 | 439 | 438
440 | 439 | 438
J BOTTOM BRACKET DROP (mm)
40 | 35 | 30
40 | 35 | 30
40 | 35 | 30
40 | 35 | 30
K STACK (mm)
617 | 614 | 611
621 | 619 | 616
631 | 628 | 625
640 | 637 | 634
L REACH (mm)
426 | 430 | 434
456 | 460 | 464
476 | 480 | 484
507 | 510 | 514
M STAND OVER HEIGHT (mm)
732 | 737 | 742
746 | 750 | 755
763 | 768 | 773
781 | 785 | 790
O STEM LENGTH (mm)
40
40
50
50
P CRANK LENGTH (mm)
165
170
170
170
Sizes
S, M, L, XL
Colours
Tactical Grey
Frame
ALUXX SL-grade Aluminium front and rear triangles, 140mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm chainline
Fork
Fox 36 Float Rhythm, 150mm, GRIP damper, 15x110mm Kabolt X thru-axle, 44mm offset
Shock
Fox Float Performance, 2 position, custom tuned for Giant
Handlebar
Giant Contact TR35, alloy, 20mm rise
Grips
Giant Tactal Pro Single lock-on
Stem
Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost
Giant Contact Switch AT dropper, adjustable travel, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle
Giant Romero
Pedals
N/A
Shifters
Shimano Deore, SL-M6200, 1x12
Front Derailleur
N/A
Rear Derailleur
Shimano Deore, M7200, Shadow
Brakes
TRP EVO Comp, hydraulic, TRP 2.3mm rotors [F]203mm, [R]180mm
Brake Levers
TRP EVO Comp
Cassette
Shimano Deore M6200, 10x51
Chain
KMC X-12
Crankset
Praxis Cadet M24, 30T, Alloy Chainring, 55mm chainline S:165mm, M:165mm, L:165mm, XL:165mm
Bottom Bracket
Praxis press fit
Rims
Giant TRA Hookless Tubeless ready Alloy, 29", 30mm inner width
Hubs
[F] Giant Boost Alloy Hub, 6 Bolt, Sealed Bearing, 28H [R] Giant Boost Alloy Hub, 6 Bolt, Sealed Bearing, HG, 28H
Spokes
Sapim Race
Tyres
[F] Maxxis Assegai 29x2.5 WT, MaxxTerra, EXO, TR [R] Maxxis Minion DHR II 29x2.4 WT, MaxxTerra, EXO, TR tubeless
Extras
Tubeless prepared, 3M tailgate protector
Max Tyre Clearance
2.5"
Max Chainring Size
34T
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

FIND YOUR FLOW ON TECHNICAL TRAILS. WITH ADJUSTABLE GEOMETRY, THE OPTION TO CHANGE REAR WHEEL SIZE, AND A 140MM MAESTRO REAR SUSPENSION SETUP, THIS VERSATILE TRAIL BIKE STEAMROLLS SINGLETRACK WITH CONFIDENCE AND CONTROL.

KEY PERFORMANCE FACTORS

Updated suspension

The Maestro rear suspension system gives trail riders 140mm of rear travel. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a 150mm travel fork, providing superior confidence and control on technical singletrack.

Adjustable trail geometry

A three-position Maestro flip chip lets riders dial in frame geometry for their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so that riders can easily achieve their preferred positioning.

Rear wheel options

All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5-inch rear. The stock 29-inch rear wheel optimises stability and roll-over capabilities, while a 27.5-inch option delivers a more agile, snappier feel and more saddle-to-tyre clearance in the rear. Some riders favour this "mullet" setup for riding steep, technical terrain.
