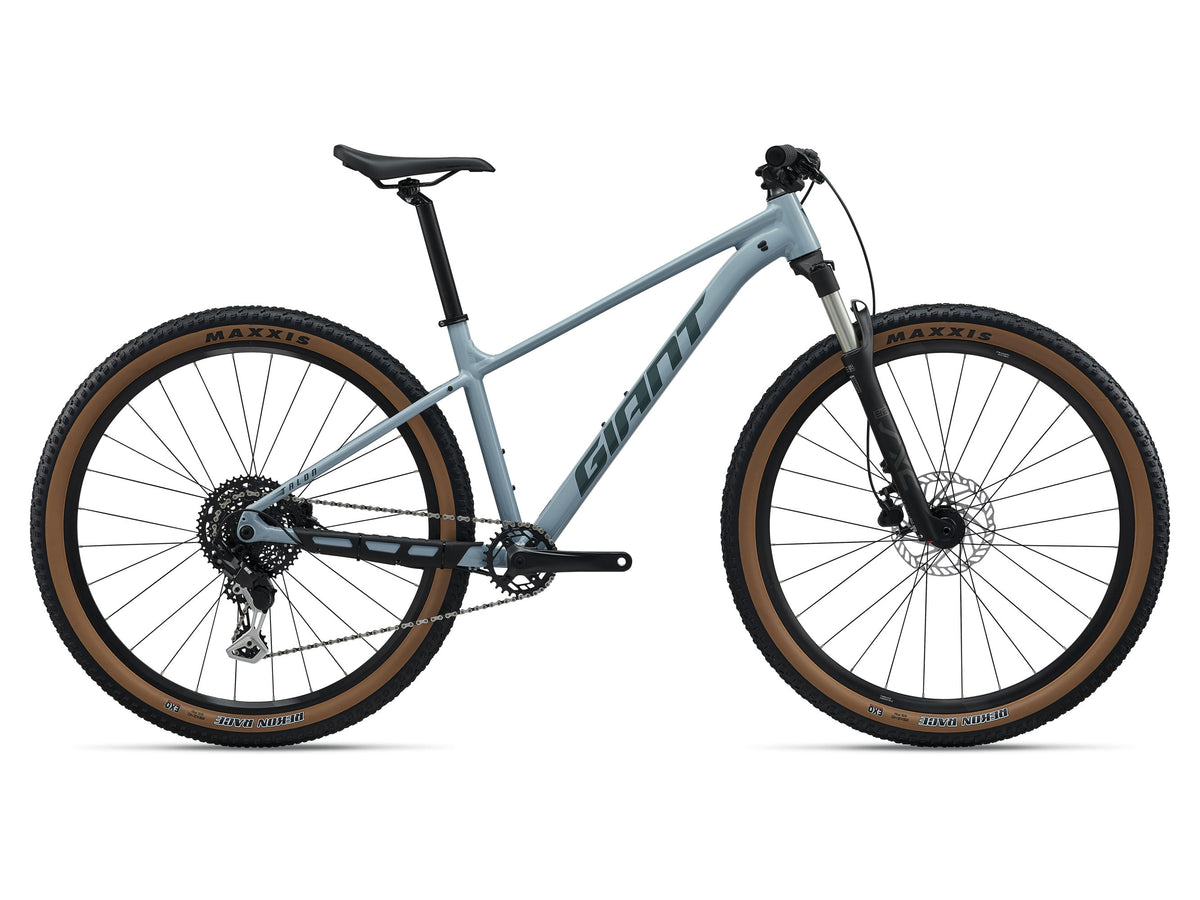

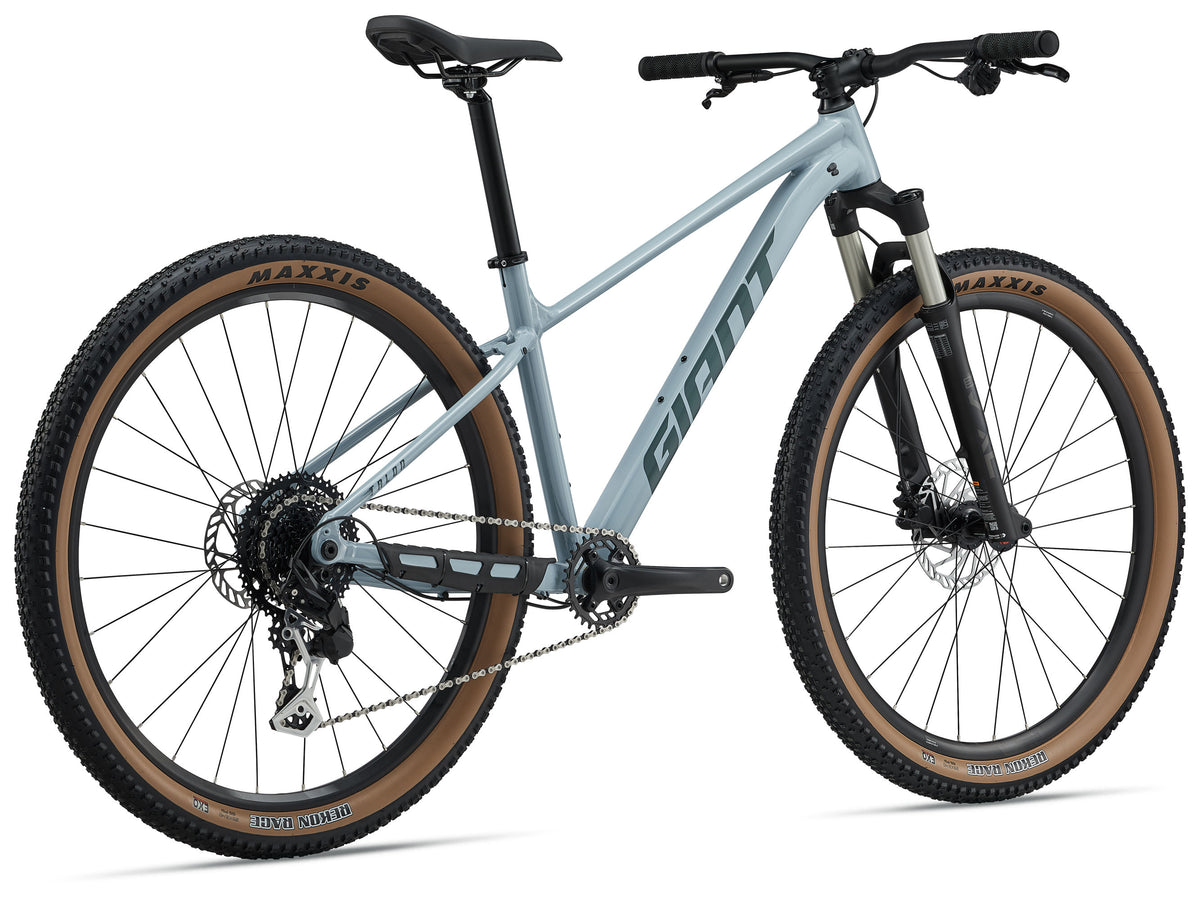

Giant Talon 1 (27.5ER) 2027

$1,299.00 $1,399.00
Colour
Size
Loading locations...
THE MOUNTAIN BIKE EXPERIENCE STARTS HERE. WITH A LIGHTWEIGHT AND DURABLE FRAME, ALONG WITH A SUSPENSION FORK AND OPTIMISED WHEEL SIZE (29-INCH OR 27.5-INCH DEPENDING ON FRAME SIZE), THIS ALUMINIUM HARDTAIL IS EVERYTHING AN ASPIRING MTB RIDER NEEDS TO EVOLVE AND ADVANCE.
KEY PERFORMANCE FACTORS

Light and durable

ALUXX aluminium frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

Off-road control

Geometry is optimised for either 29-inch wheels or 27.5-inch depending on frame size, and a suspension fork of either 100mm or 80mm. The result is in confident off-road performance for riders of all sizes.

Modern MTB design

Wide tyre clearance (up to 2.4-inch), internal cable routing, thru-axle hubs, integrated chainstay protection and quality components (including a 1x drivetrain option) gives aspiring trail riders room to grow.

TECHS & FEATURES

Giant ALUXX Aluminium Technology

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

XS (27.5")
155 cm 5'1"
166 cm 5'5"
S (27.5")
163 cm 5'4"
172 cm 5'8"
S (29")
163 cm 5'4"
172 cm 5'8"
M (29")
169 cm 5'7"
179 cm 5'10"
L (29")
176 cm 5'9"
186 cm 6'1"
XL (29")
183 cm 6'0"
193 cm 6'4"
Giant Talon 1 2027 blue bicycle geometry diagram showing frame measurements, handlebar and crank dimensions
XS (27.5") S (27.5") S (29") M (29") L (29") XL (29")
A SEAT TUBE LENGTH (mm) (inch) 345 375 380 420 450 480
A1 SEAT POST INSERTION DEPTH (mm) (inch) 300 340 245 200 250 300
B SEAT TUBE ANGLE 74.0° 74.0° 74.5° 74.5° 74.5° 74.5°
C TOP TUBE LENGTH (mm) (inch) 542 562 581 604 629 653
D HEAD TUBE LENGTH (mm) (inch) 90 90 95 105 125 140
E HEAD TUBE ANGLE 67.0° 67.0° 67.5° 67.5° 67.5° 67.5°
F FORK RAKE (mm) (inch) 44 44 44 44 44 44
G TRAIL (mm) (inch) 105 105 109 109 109 109
H WHEELBASE (mm) (inch) 1084 1104 1140 1164 1191 1216
I CHAIN STAY LENGTH (mm) (inch) 440 440 455 455 455 455
J BOTTOM BRACKET DROP (mm) (inch) 45 45 55 55 55 55
K STACK (mm) (inch) 548 548 597 606 625 638
L REACH (mm) (inch) 385 405 415 435 455 475
M STAND OVER HEIGHT (mm) (inch) 684 684 715 708 708 710
O STEM LENGTH (mm) (inch) 40 50 40 50 60 60
P CRANK LENGTH (mm) (inch) 165 165 170 170 170 175
Sizes
27.5 XS, S, 29: S, M, L, XL
Colours

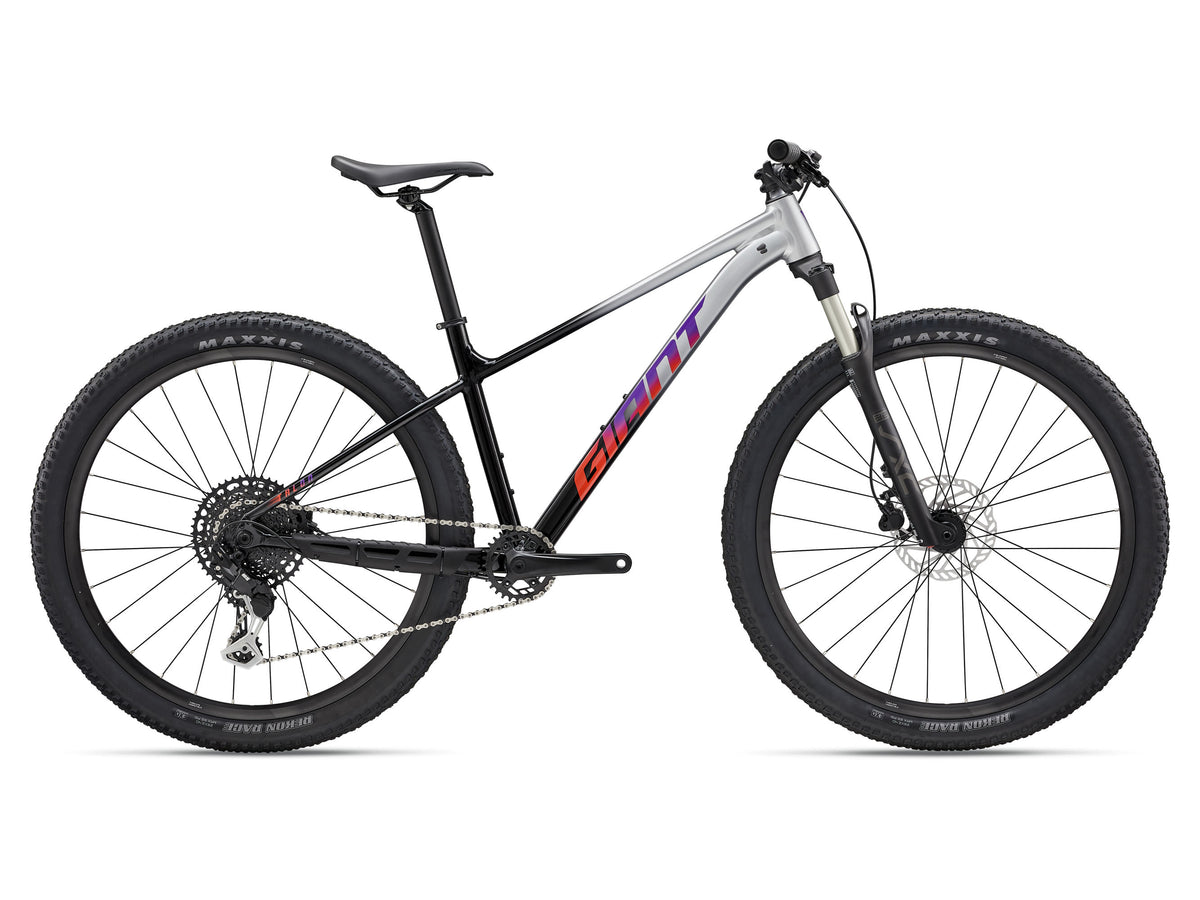

Dusty Blue, Silver/Black

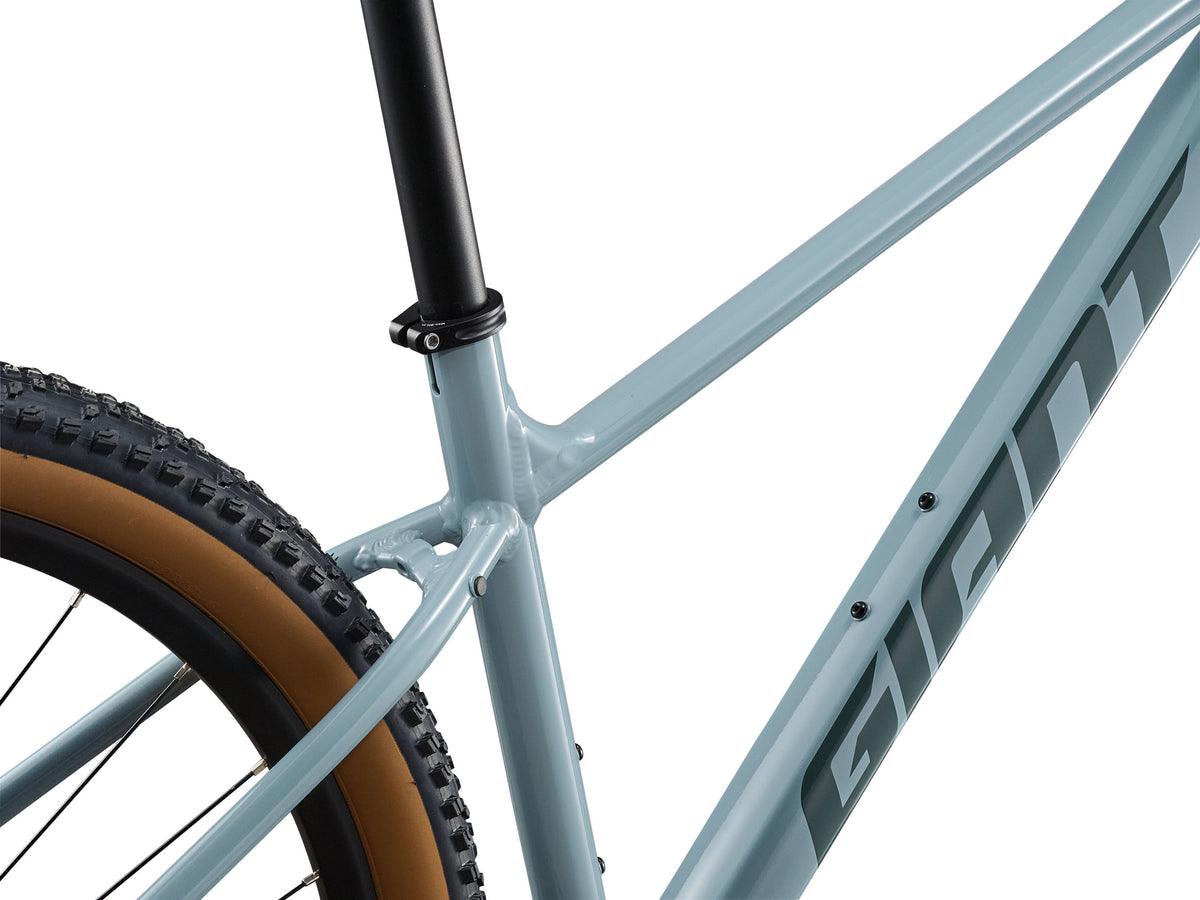

Frame
ALUXX-Grade aluminium, disc

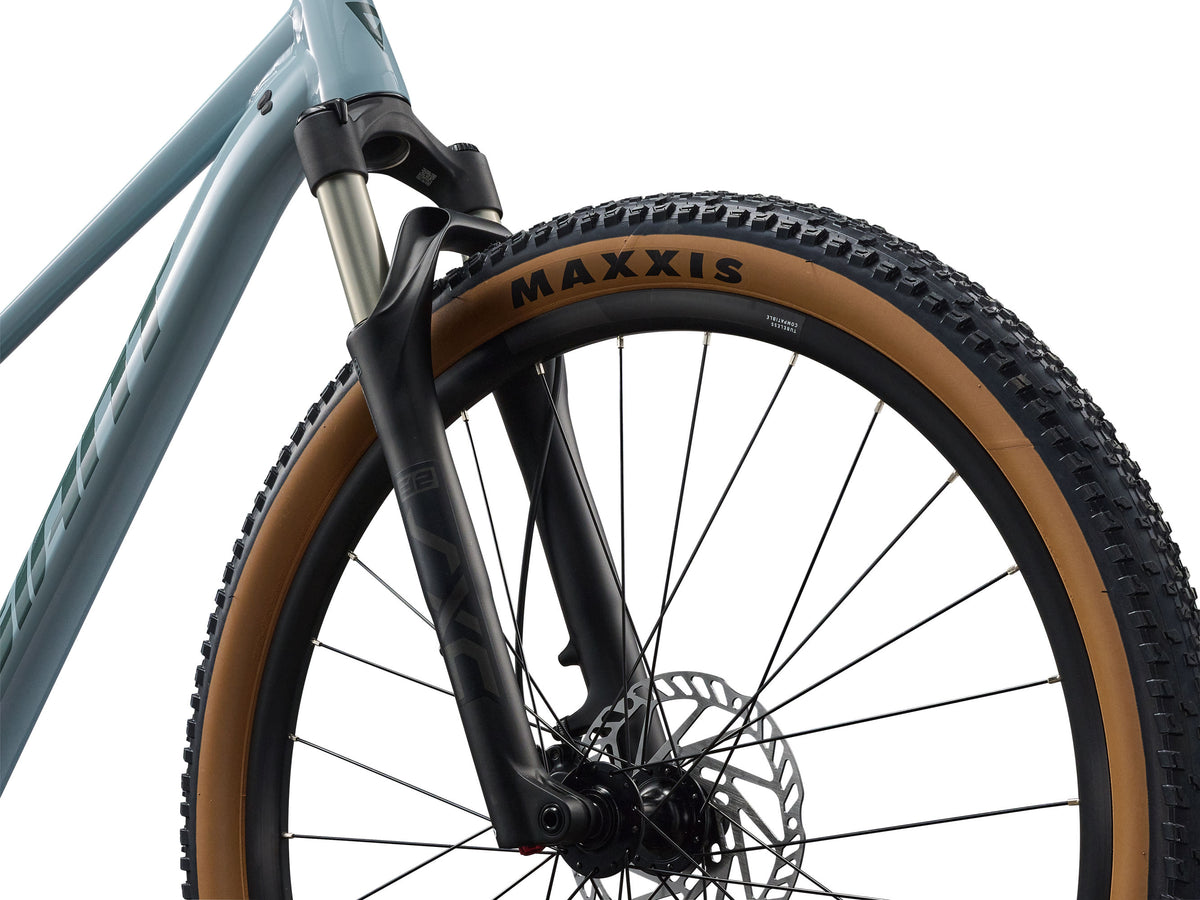

Fork
SXC32-2 RL, air spring, Boost 15x110mm thru-axle XS: 80mm travel (27.5) S: 80mm travel (27.5), 100mm travel (29) M: 100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29)
Shock
N/A
Handlebar
Giant Connect Trail, 31.8mm
Grips
Giant Sole-O Grip
Stem
Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5), 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)
Seatpost
Giant Sport, 30.9mm
Saddle
Giant ErgoContact Trail
Pedals
MTB caged
Shifters
microSHIFT Advent MX, 1x11

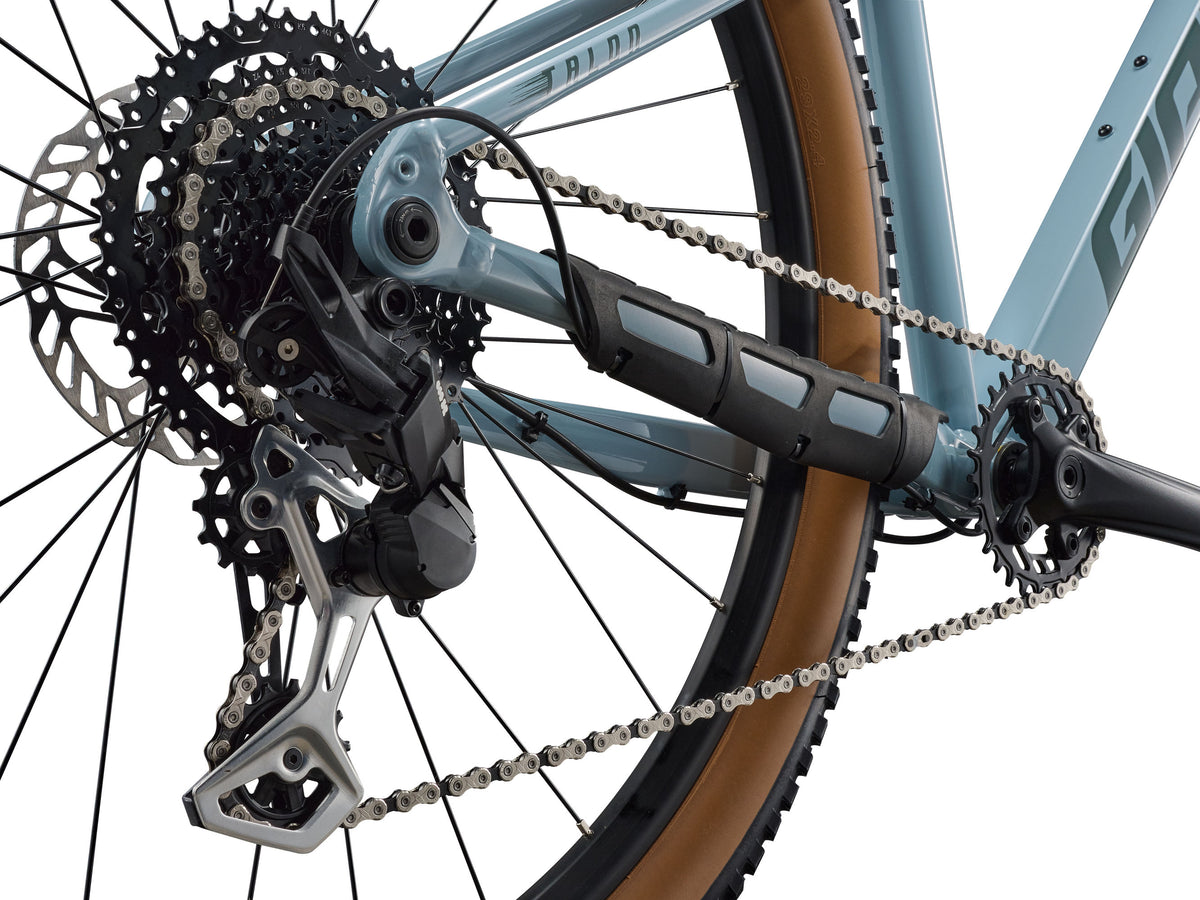

Rear Derailleur
microSHIFT Advent 1x11 RD-M7015M

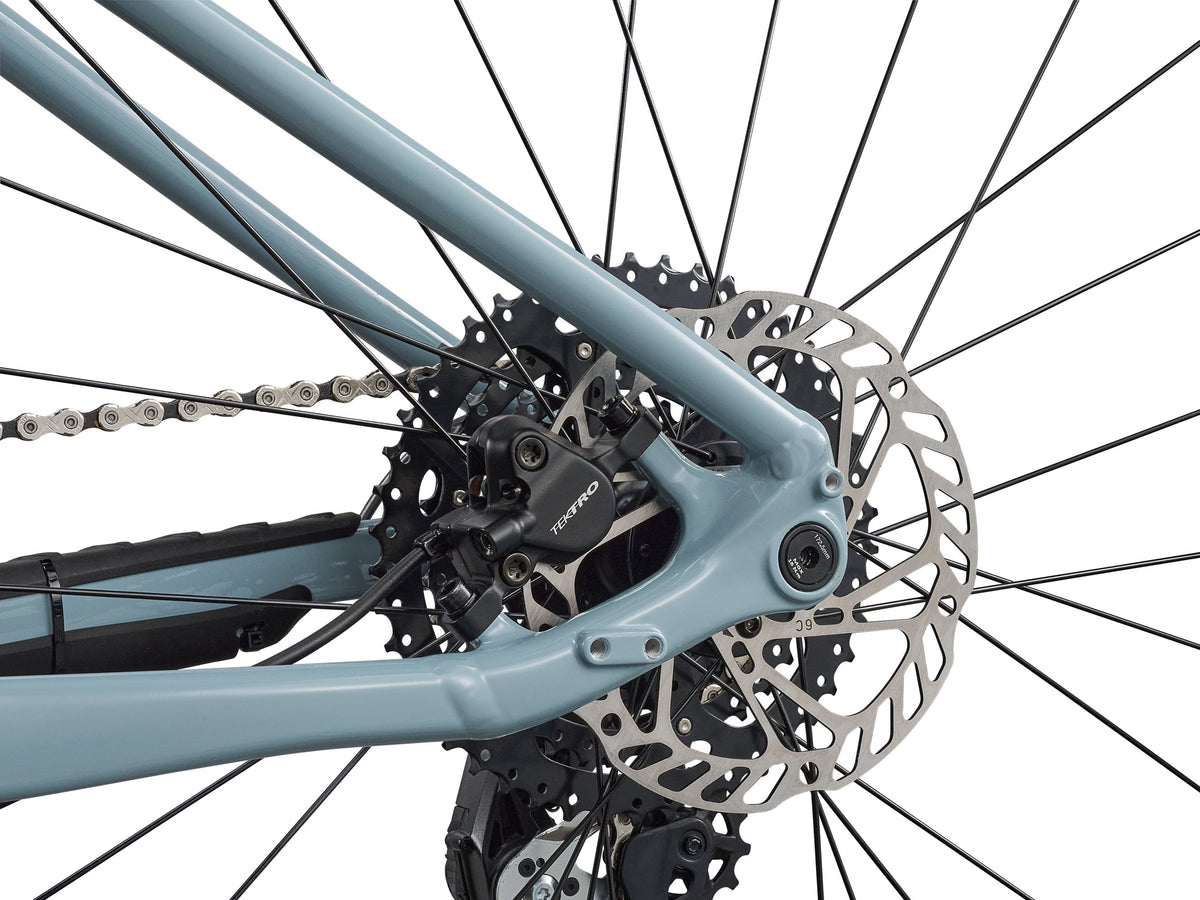

Brakes
Tektro HD M3121, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers
Tektro Tektro HD M3121
Cassette
microSHIFT Advent MX 1x11 CS-H114 11-50
Chain
KMC X11
Crankset
ProWheel Charm, 30t (29"), 32t (27.5") XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29)
Bottom Bracket
Cartridge
Rims
Giant Alloy, tubeless compatible, 29 or 27.5 alloy, double wall 28H
Hubs
[F] Giant Alloy, sealed bearing, 6 bolt, 28H [R] Giant Alloy, sealed bearing, 6 bolt, 28H
Spokes
Stainless 14G
Tyres
Maxxis Rekon Race 29x2.4" or Rekon 27.5x2.4" wire bead
Extras
Tubeless Compatible
Max Tyre Clearance
2.4" max tyre size
Max Chainring Size
32t max chainring size
Weight
The most accurate way to determine any bike's weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
