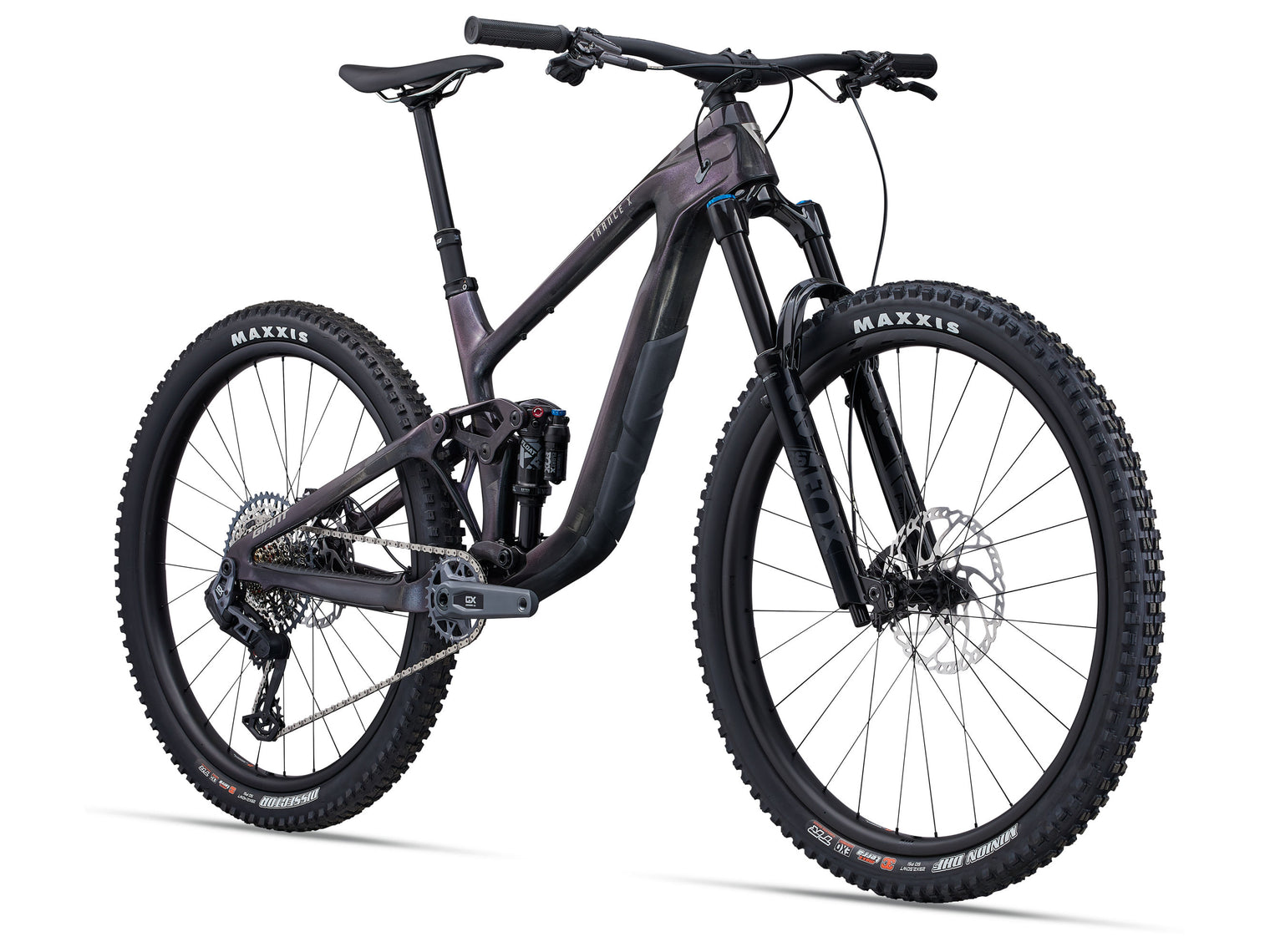

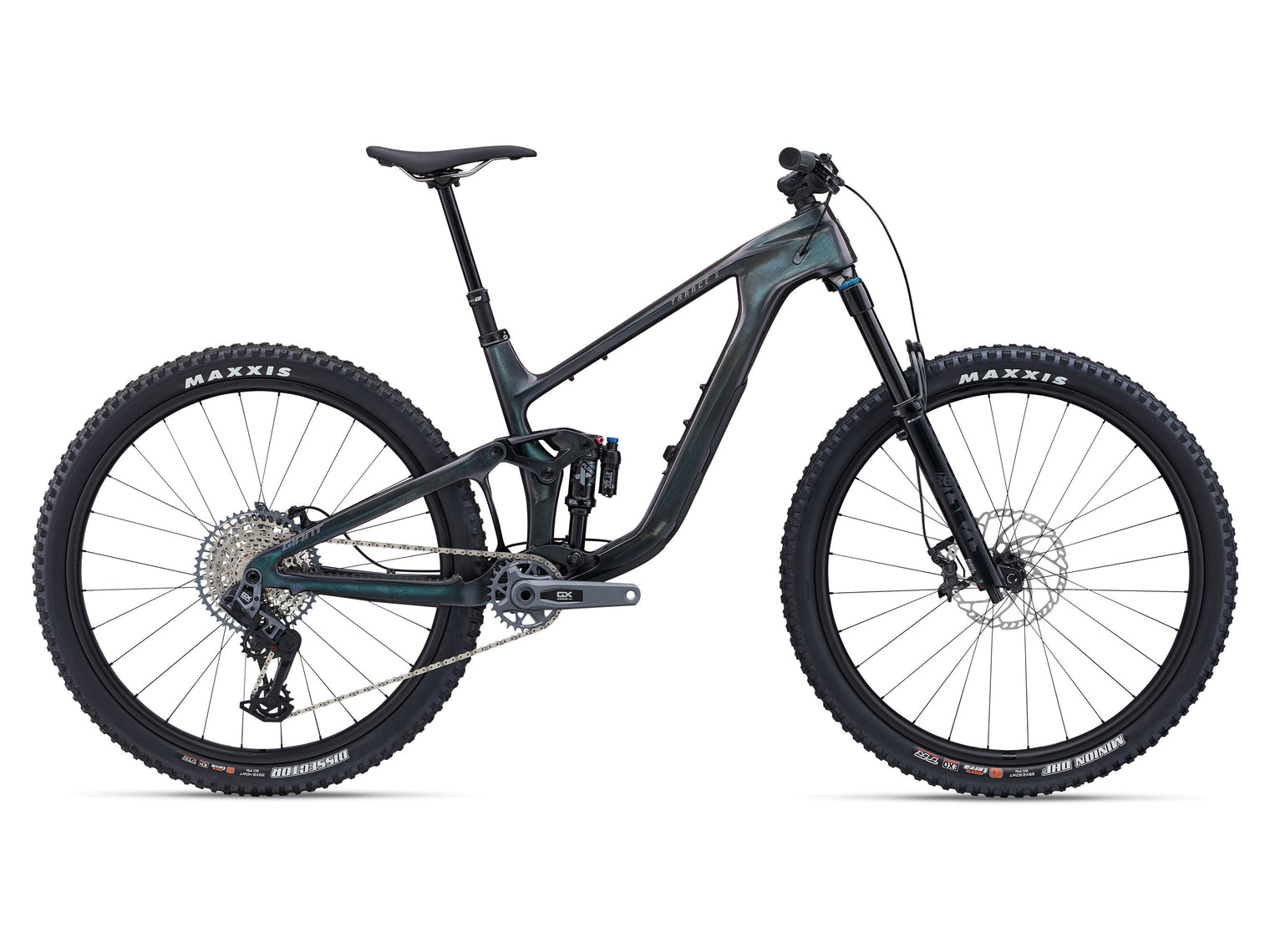

Giant Trance X Advanced 1 2024

$6,499.00 ~~$9,499.00~~

Colour

Arctic Light Raw Carbon

Size

LARGE SMALL

Product variants

Loading locations...

geometry

specs

highlights

More Travel

New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.

Adjustable trail geometry

A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of reach adjustment.

Rear wheel options

All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock setup optimises stability and roll-over speed, while a 27.5 rear wheel delivers a snappier feel and more saddle-to-tyre clearance. Some riders favour this "mullet" setup for riding steep, technical terrain.

SPEC & GEOMETRY - TRANCE X ADVANCED 1

TECHS & FEATURES

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

Giant Full Suspension Mountain Bike Geometry Diagram

	S	M	L	XL
	LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH	LOW \| MID \| HIGH
A SEAT TUBE LENGTH (mm)	400	425	450	475
A1 SEAT POST INSERTION DEPTH (mm)	280	305	330	355
B SEAT TUBE ANGLE	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°	76.8° \| 77.2° \| 77.5°
C TOP TUBE LENGTH (mm)	571 \| 570 \| 569	602 \| 601 \| 600	624 \| 623 \| 622	657 \| 656 \| 655
D HEAD TUBE LENGTH (mm)	100	105	115	125
E HEAD TUBE ANGLE	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°	64.4° \| 64.8° \| 65.1°
F FORK RAKE (mm)	44	44	44	44
G TRAIL (mm)	134.1 \| 131.3 \| 128.4	134 \| 131.3 \| 128.5	133.9 \| 131.3 \| 128.5	133.9 \| 131.3 \| 128.6
H WHEELBASE (mm)	1190 \| 1190 \| 1189	1222 \| 1222 \| 1221	1246 \| 1246 \| 1245	1281 \| 1280 \| 1280
I CHAIN STAY LENGTH (mm)	440 \| 439 \| 438	440 \| 439 \| 438	440 \| 439 \| 438	440 \| 439 \| 438
J BOTTOM BRACKET DROP (mm)	40 \| 35 \| 30	40 \| 35 \| 30	40 \| 35 \| 30	40 \| 35 \| 30
K STACK (mm)	617 \| 614 \| 611	621 \| 619 \| 616	631 \| 628 \| 625	640 \| 637 \| 634
L REACH (mm)	426 \| 430 \| 434	456 \| 460 \| 464	476 \| 480 \| 484	507 \| 510 \| 514
M STAND OVER HEIGHT (mm)	733 \| 737 \| 742	737 \| 741 \| 746	754 \| 759 \| 763	752 \| 757 \| 762
O STEM LENGTH (mm)	40	40	40	40
P CRANK LENGTH (mm)	165	170	170	170
Q WHEEL SIZE	29"	29"	29"	29"

HANDLEBAR

Giant Contact SL TR35, alloy, 35mm

PEDALS

N/A

SADDLE

Giant Romero SL

SEATPOST

Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm

STEM

Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm

BOTTOM BRACKET

SRAM DUB, Press Fit

BRAKE LEVERS

Shimano Deore XT BL-M8100

BRAKES

Shimano Deore XT BR-M8120, hydraulic, four piston

BRAKES ROTOR

Shimano RT-66 rotors [F]203mm, [R]180mm

CASSETTE

SRAM GX, T-Type, 10x52

CHAIN

SRAM GX, T-Type

CRANKSET

SRAM GX, T-Type, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm

FRONT DERAILLEUR

N/A

REAR DERAILLEUR

SRAM GX Eagle AXS, T-Type

SHIFTERS

SRAM AXS Pod, 1x12

FORK

Fox 36 Performance Elite, 150mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset

FRAME

Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage

SHOCK

Fox Float X Performance Elite, two-position LSC adjust, 185/52.5, custom tuned for Giant

EXTRAS

Tubeless prepared, 2.5 inch max tyre size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection

FRONT HUB

Giant Alloy, 6 Bolt

FRONT TYRE

Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR

REAR HUB

TRX HE, Alloy, 72 Pawl Driver, 6 bolt

REAR TYRE

Maxxis Dissector 29x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless

RIMS

Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology

SPOKES

Sapim, 28, straight pull, DBL Technology

Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
