Giant Trance X Advanced Pro 29 1 2023

$5,499.00 $9,199.00
Colour
Size
Loading locations...

FROM FAST, ROWDY DESCENTS TO TECHNICAL TERRAIN, THIS PROGRESSIVE TRAIL BIKE GIVES YOU ACTIVE SUSPENSION, ADJUSTABLE FRAME GEOMETRY, AND EVERYTHING YOU NEED TO UP YOUR SINGLETRACK GAME.

This full-composite frame is engineered for 135mm of rear travel and 150mm up front. The Maestro rear suspension has a two-position adjustable Advanced Forged Composite rocker arm with a trunnion-mount shock. A flip chip lets you choose either low or high frame geometry settings, adjusting the head tube and seat tube angles, along with the bottom bracket drop, to fine-tune handling for your riding style and terrain.

KEY PERFORMANCE FACTORS

29er Confidence and Control
29-inch wheels are optimised to roll over technical terrain with balance and stability, giving you more momentum on tricky climbs and confidence to fly on fast singletrack descents. Added clearance for up to 2.5-inch tyres.

Progressive Suspension

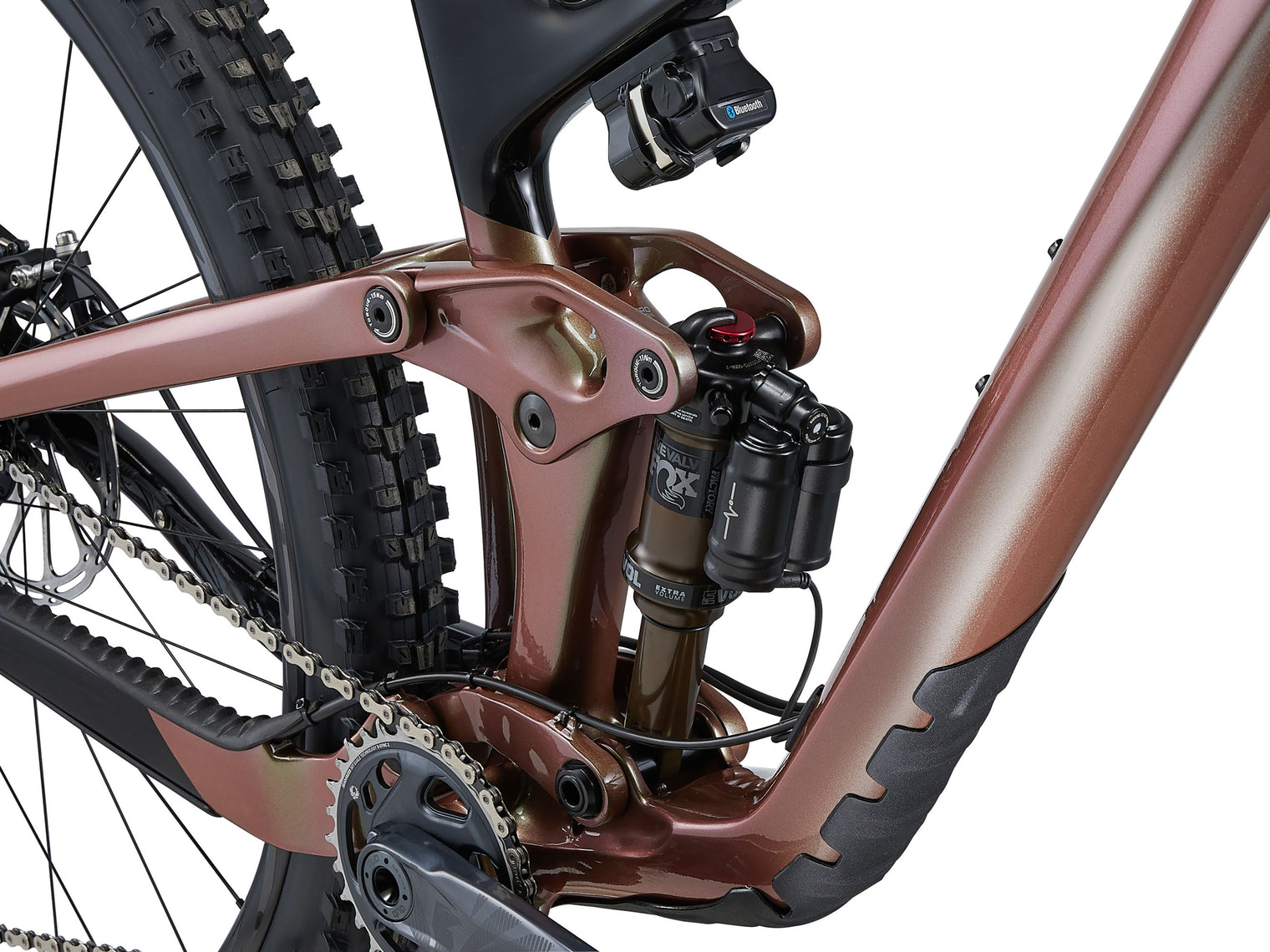

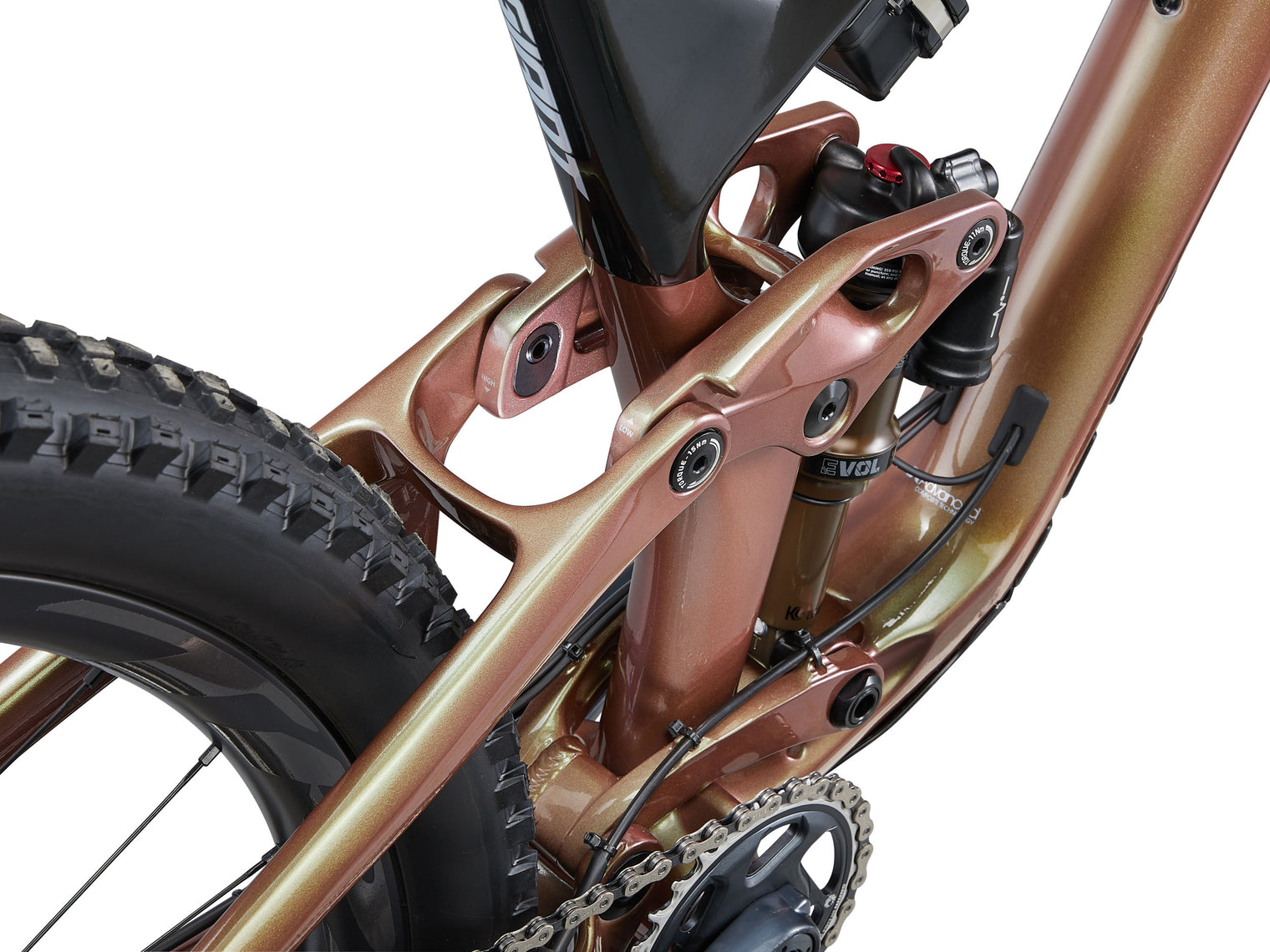

Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.

Adjustable Geometry
A flip chip lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position for fast, open terrain, or the high position for slower, tighter singletrack.

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and moulded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

×

A state-of-the-art high-pressure moulding process is used to produce complex-shaped carbon fibre components that are lighter, stiffer and stronger than similar components made from aluminium. This technology is used in critical performance parts such as Maestro Suspension rocker links.

×

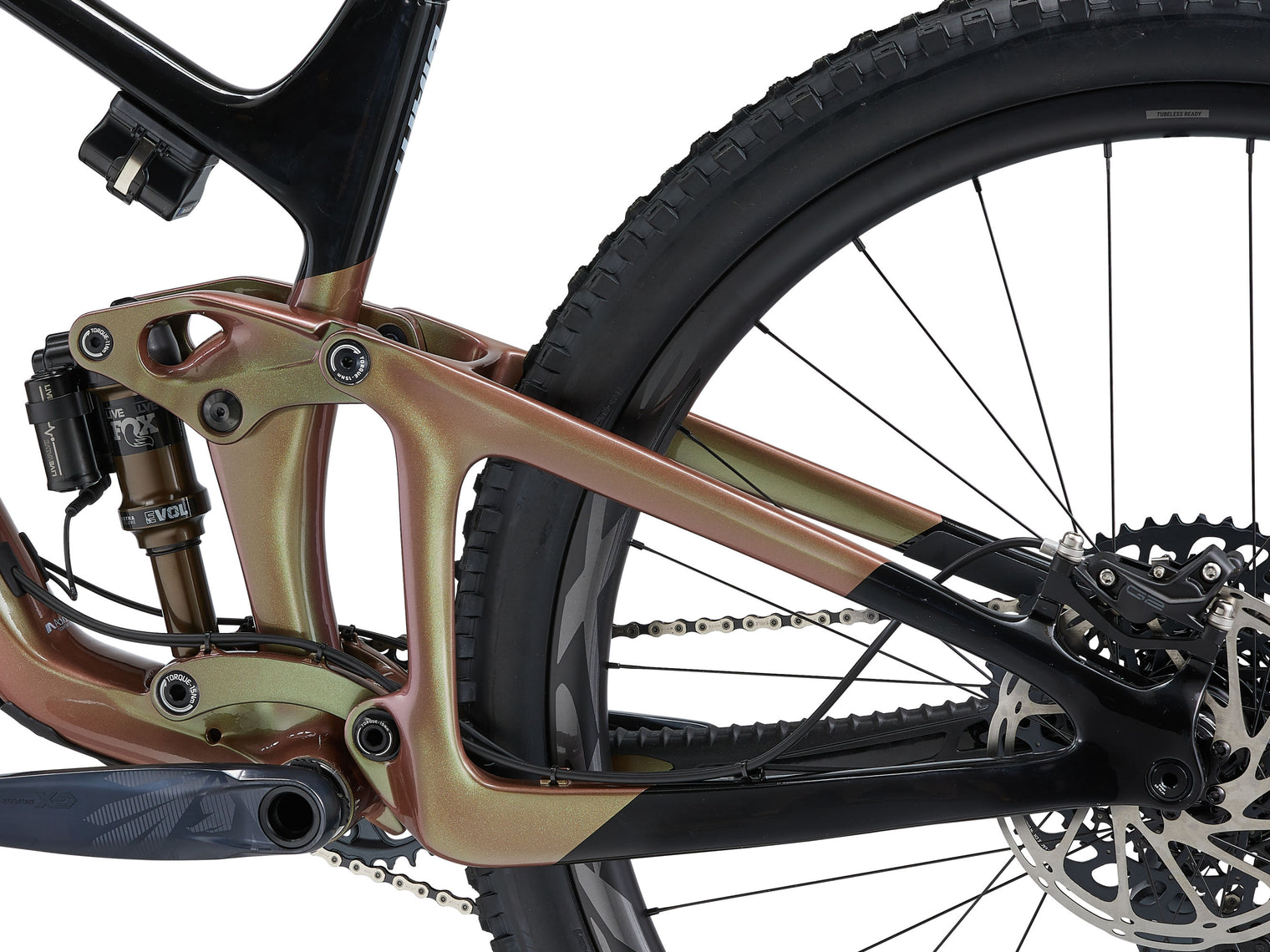

MAESTRO SUSPENSION TECHNOLOGY

Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.

READ MORE

×

Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

×

TUBELESS SYSTEM

Fewer flat tyres. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

READ MORE

×

FLIP CHIP - MAESTRO

The flip chip allows riders to quickly adjust the geometry of their Maestro-equipped mountain bike to better suit how and where they ride. It lets riders change the headtube/seattube angles and bottom bracket height via eccentric (offset, two-position) hardware located on the upper rocker arm.

READ MORE

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

S
M
L
XL
S
LOW HIGH
M
LOW HIGH
L
LOW HIGH
XL
LOW HIGH
A SEAT TUBE LENGTH (mm)
430
430
465
496
B SEAT TUBE ANGLE
77.2° 77.9°
77.2° 77.9°
77.2° 77.9°
77.2° 77.9°
C TOP TUBE LENGTH (mm)
566 564
597 595
629 627
656 654
D HEAD TUBE LENGTH (mm)
95
105
110
120
E HEAD TUBE ANGLE
65.5° 66.2°
65.5° 66.2°
65.5° 66.2°
65.5° 66.2°
F FORK RAKE (mm)
44
44
44
44
G TRAIL (mm)
125.1 119.5
125.1 119.5
125.1 119.7
125.1 119.5
H WHEELBASE (mm)
1173 1172
1205 1204
1239 1238
1268 1266
I CHAIN STAY LENGTH (mm)
438 435
438 435
438 435
438 435
J BOTTOM BRACKET DROP (mm)
40 30
40 30
40 30
40 30
K STACK (mm)
617 611
621 615
631 624
640 634
L REACH (mm)
426 434
456 464
486 494
511 519
M STAND OVER HEIGHT (mm)
735 743
729 738
754 763
777 786
O STEM LENGTH (mm)
40
40
50
50
P CRANK LENGTH (mm)
165
170
170
170
Q WHEEL SIZE
29"
29"
29"
29"
GRIPS
Giant Tactal Pro Single lock-on

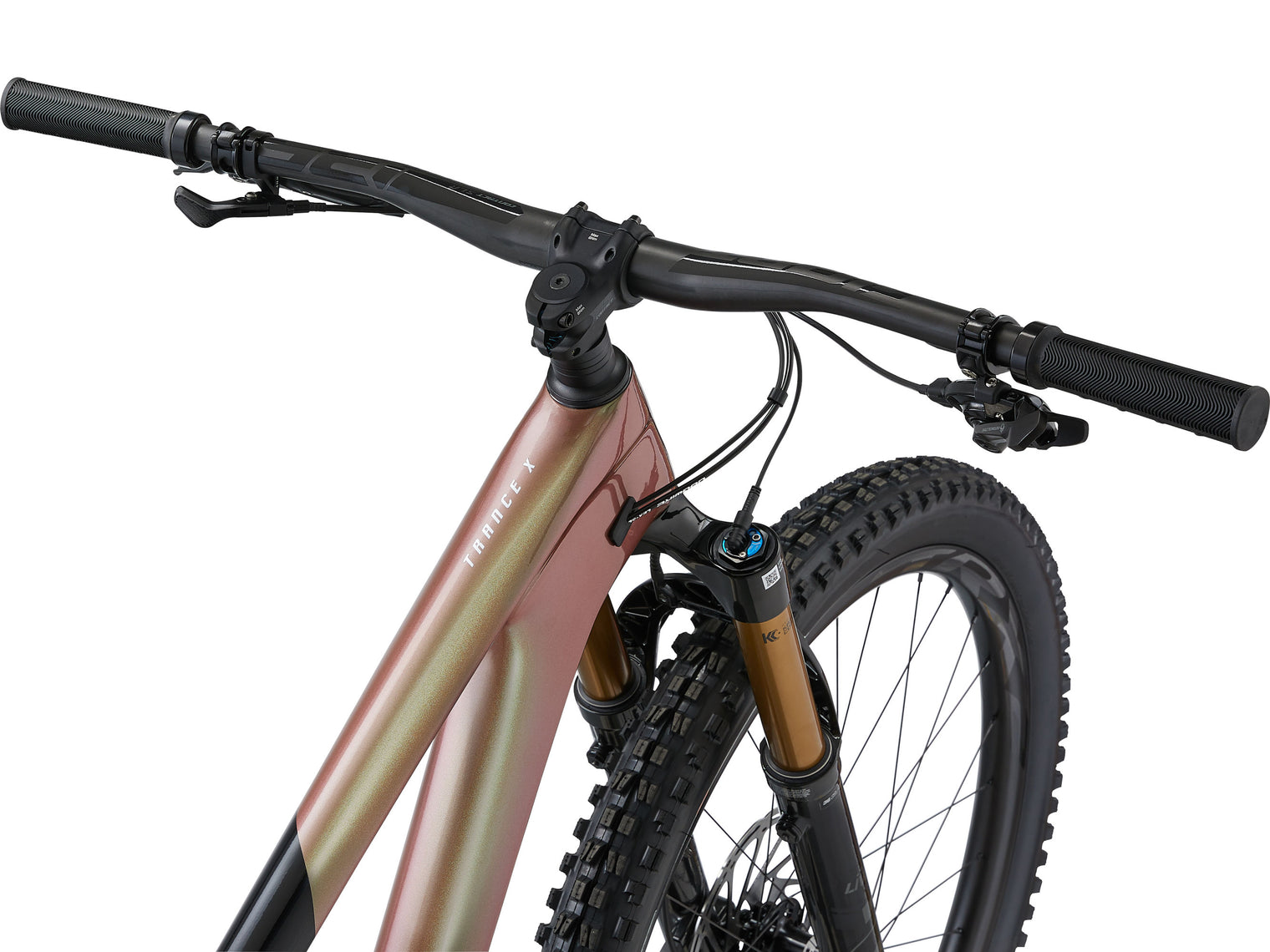

HANDLEBAR
Giant Contact SLR TR35, composite, 35mm
SADDLE
Giant Romero SL
SEATPOST
TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm, M: 140-170mm travel / 30.9 x 499mm, L: 170-200mm travel / 30.9 x 525mm, XL: 170-200mm travel / 30.9 x 525mm
STEM
Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
BOTTOM BRACKET
SRAM DUB, press fit
BRAKE LEVERS
SRAM G2 RSC
BRAKES
SRAM G2 RSC, hydraulic
BRAKES ROTOR
SRAM CenterLine rotors [F]200mm, [R]180mm

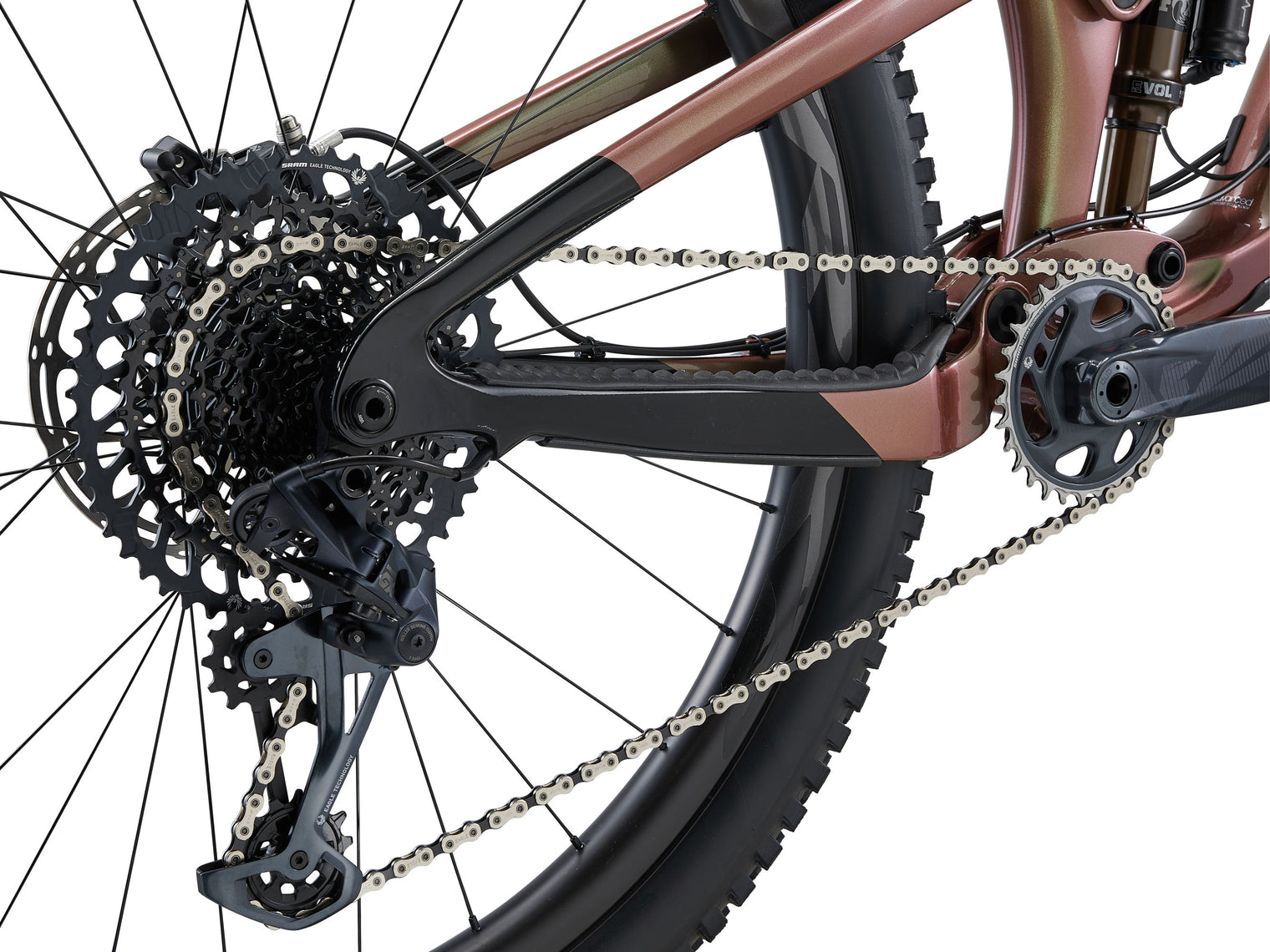

CASSETTE
SRAM GX-1275, 10x52
CHAIN
SRAM GX Eagle
CRANKSET
SRAM GX, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
SRAM GX Eagle
SHIFTERS
SRAM GX Eagle, 1x12

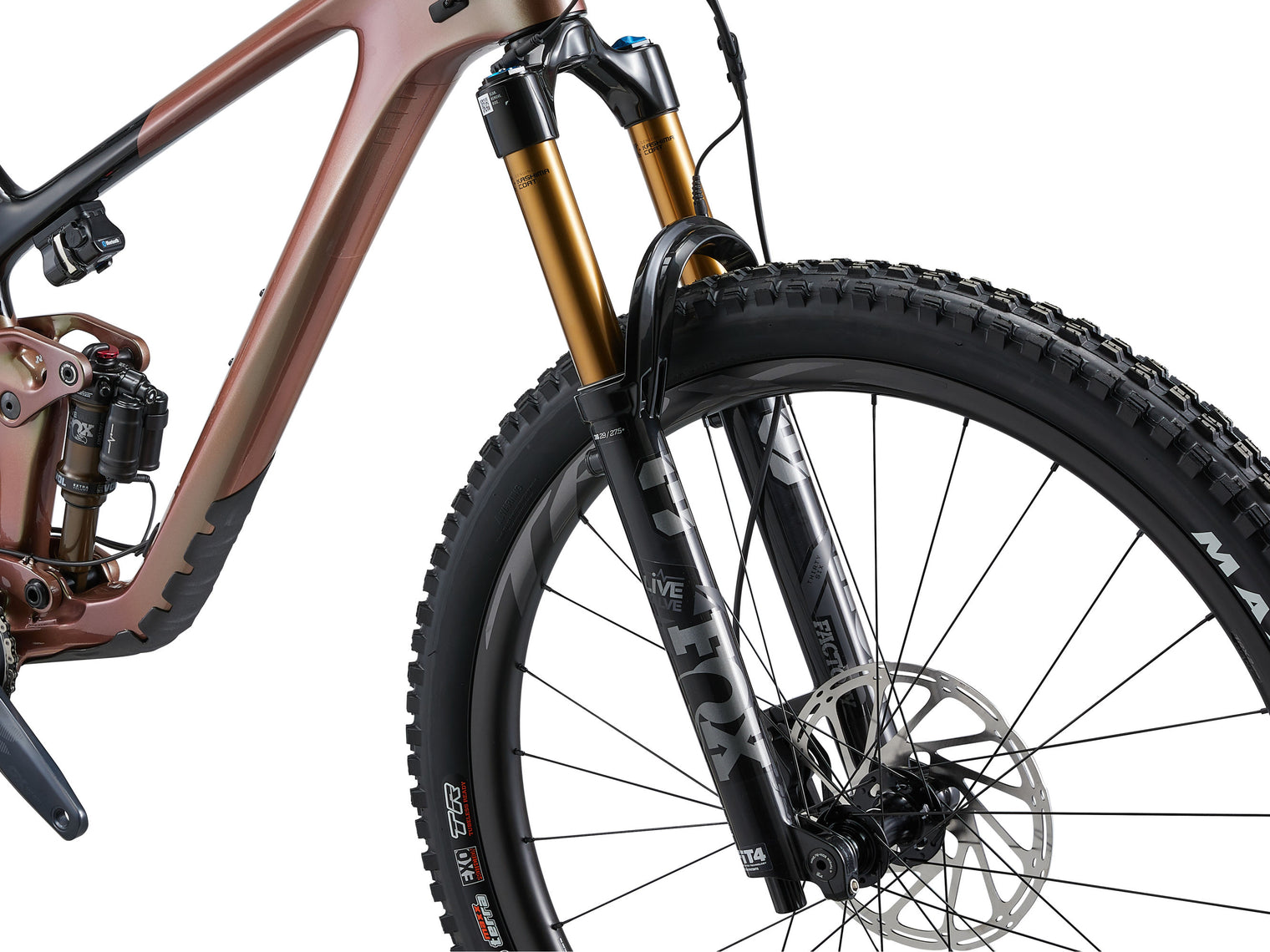

FORK
Fox 36 Factory Live Valve, FIT4 damper, 44mm offset, 150mm, 15x110 Kabolt X, custom tuned for Giant
FRAME
Advanced-Grade Composite front and rear triangles, 135mm Maestro suspension, flip chip, 12x148mm thru-axle
SHOCK
Fox Factory Live, custom tuned for Giant
EXTRAS
Tubeless prepared, 2.5" max tyre size, 34t max chainring size, 3M tailgate protector
FRONT HUB
Giant MTB alloy, 6-bolt
FRONT TYRE
Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR
REAR HUB
Giant MTB alloy, 3-pawl driver, 6-bolt
REAR TYRE
Maxxis Aggressor 29x2.4, EXO, TR, tubeless
RIMS
Giant TRX 2 29 Carbon WheelSystem, 30mm inner width
SPOKES
Sapim
