Liv Avail Advanced E+ Elite 0

$16,999.00
Colour
Size
Loading locations...

ROUGH ROADS, GRAVEL OR DIRT. HOWEVER YOU CHOOSE TO ROLL, THIS BIKE DOES IT ALL. THE LIGHTWEIGHT, SMOOTH-RIDING COMPOSITE FRAMESET AND ADJUSTABLE WHEELBASE MAKE IT MORE CAPABLE THAN EVER.

KEY PERFORMANCE FACTORS

Fast and light

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can also choose the included D-Fuse seatpost* for maximum compliance, or switch to a 30.9mm round or dropper post.

*On select models

TECHS & FEATURES

×

ADVANCED COMPOSITE TECHNOLOGY

Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.

×

ENERGYPAK

EnergyPak side release design makes it easy to handle and remove the battery from the E-bike, plus the battery can be charged on or off the bike for convenience.

READ MORE

×

RIDECONTROL GO

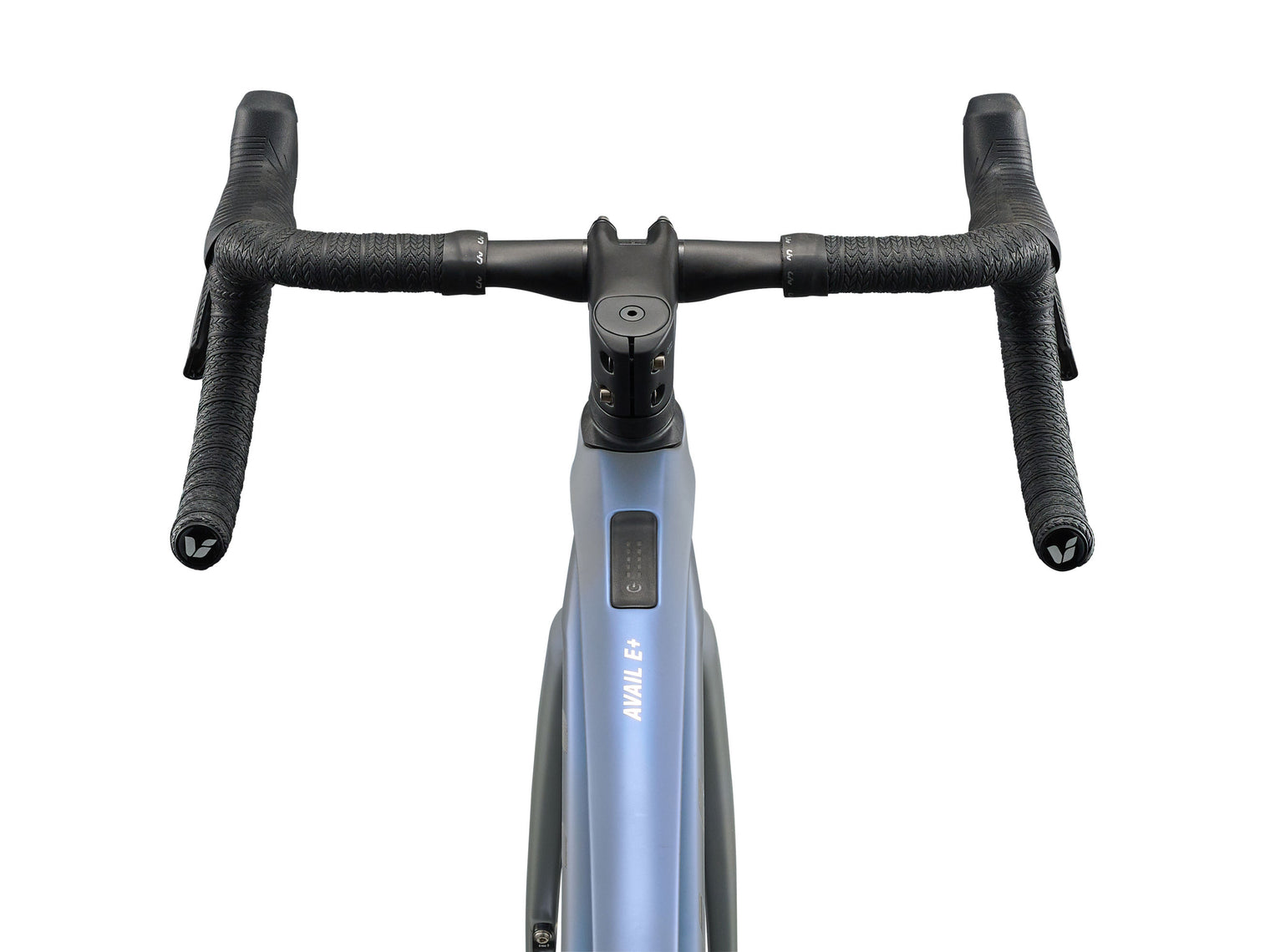

Available on premium Liv E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Colored LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.

×

SYNCDRIVE MOVE PLUS

The new SyncDrive Move Plus motor delivers 30Nm of torque, which is comparable to 75Nm of torque in a mid-drive motor—all in a lightweight, quiet system that’s fully integrated into the rear hub. It features five support levels plus Smart Assist technology, which can automatically adjust pedaling support without having to change settings while riding. The motor uses sensors to constantly adjust output based on advanced algorithms.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS
S
M
XS
S
M
ASEAT TUBE LENGTH (mm)
400
435
470
BSEAT TUBE ANGLE
74.5°
74.5°
74.0°
CTOP TUBE LENGTH (mm)
515
525
540
DHEAD TUBE LENGTH (mm)
120
135
155
EHEAD TUBE ANGLE
70.5°
71.0°
72.0°
FFORK RAKE (mm)
50
50
50
GWHEELBASE (mm)
993
999
1003
HCHAIN STAY LENGTH (mm)
420
420
420
IBOTTOM BRACKET DROP (mm)
80
80
80
JSTACK (mm)
529
545
563
KREACH (mm)
368
374
378
LSTAND OVER HEIGHT (mm)
677
708
743
MSTEM LENGTH (mm)
80
90
100
NWHEEL SIZE
700C
700C
700C
MOTOR
Giant SyncDrive Move Plus, rear hub, 30Nm
CONTROLLER
Mode support switch from SRAM Bonus Button
DISPLAY
Giant RideControl GO, frame-integrated LED console; optional wireless ANT+ display
BATTERY
Giant EnergyPak 400Wh, aluminium casing with highest safety standard (EN50604), CO₂ neutral production, EnergyPak Plus 200 range extender compatible
CHARGER
Giant EnergyPak 4A smart charger, charges to 60% in 1:45
MAXIMUM SPEED
Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
CONNECTIVITY
Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
SIZES
XS, S, M
COLOURS
Moonstone
FRAME
Advanced-grade composite, 12x145 thru-axle
FORK
Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
SHOCK
N/A
HANDLEBAR
Liv Contact SLR D-Fuse XS:38/40cm, S:38/40cm, M:40/42cm
STEM
Giant Contact SLR AeroLight XS:80mm, S:90mm, M:100mm
SEATPOST
Giant D-Fuse SLR, composite, -5/+15mm offset
SADDLE
Liv Alacra SLR
PEDALS
N/A
SHIFTERS
SRAM RED AXS HRD, ED-RED-E1
FRONT DERAILLEUR
SRAM RED AXS, FD-RED-E-E1
REAR DERAILLEUR
SRAM RED AXS, RD-RED-E-E1
BRAKES
SRAM RED AXS HRD, ED-RED-E1; SRAM PaceLine X rotors [F]160mm, [R]160mm
BRAKE LEVERS
SRAM RED AXS HRD, ED-RED-E1
CASSETTE
SRAM RED XG-1290, 12-speed, 10-33
CHAIN
SRAM RED E1, 12-speed
CRANKSET

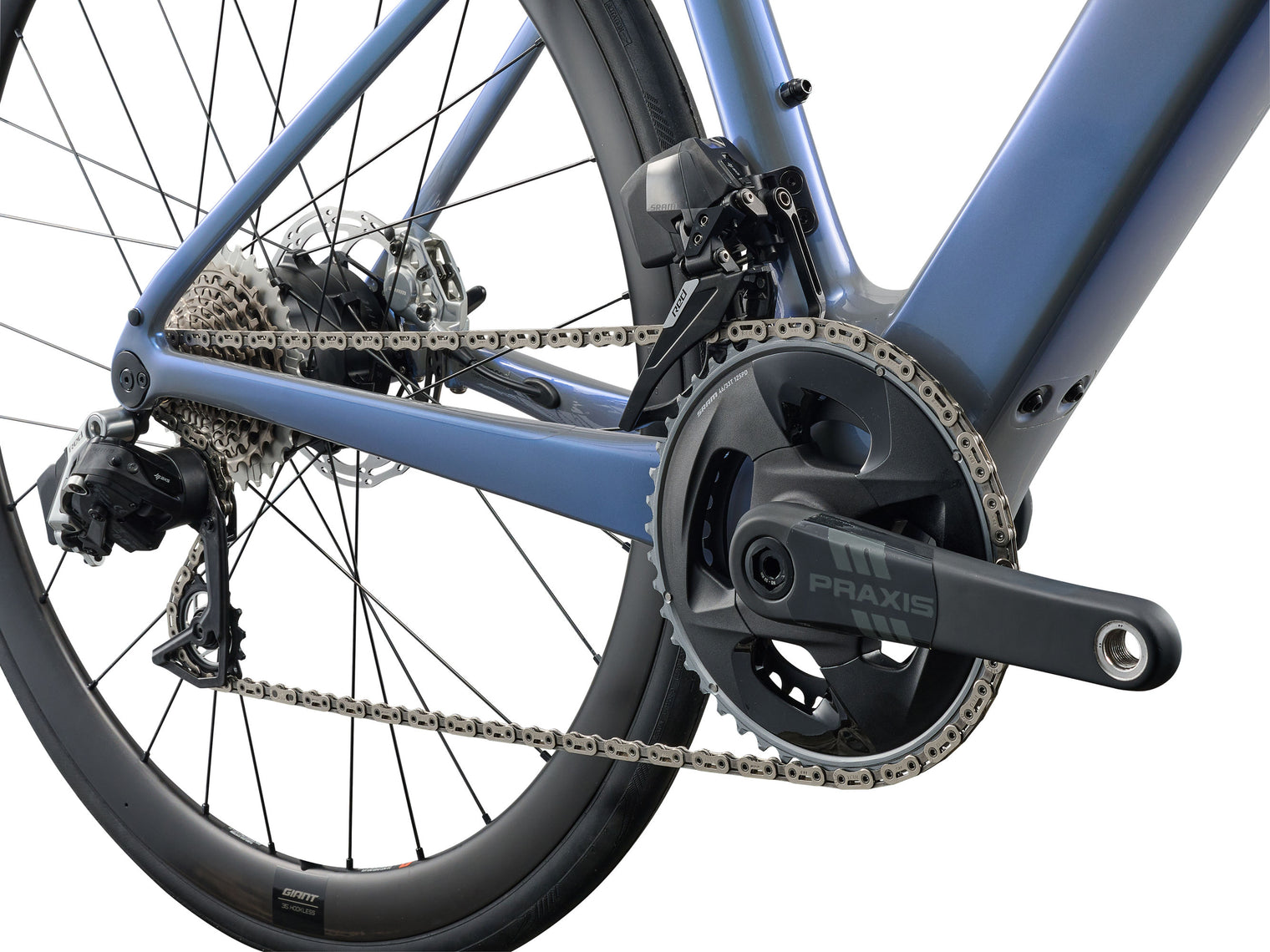

SRAM Force X-SYNC 33/46T BCD107 chainring; Praxis E Crank Carbon ISIS, XS:165mm, S:165mm, M:170mm
BOTTOM BRACKET
Giant E+ System BBSS
RIMS
Giant SLR 1 E+ 36mm carbon disc wheel system, hookless, tubeless ready
HUBS
[F] Giant SLR 1, 24H; [R] Giant SyncDrive Move Plus, 28H
SPOKES
Sapim E-Light [R] / CX-Ray [F], e-bike optimised
TYRES
CADEX Race GC, tubeless, 700x30, folding
EXTRAS
N/A
LIGHTING

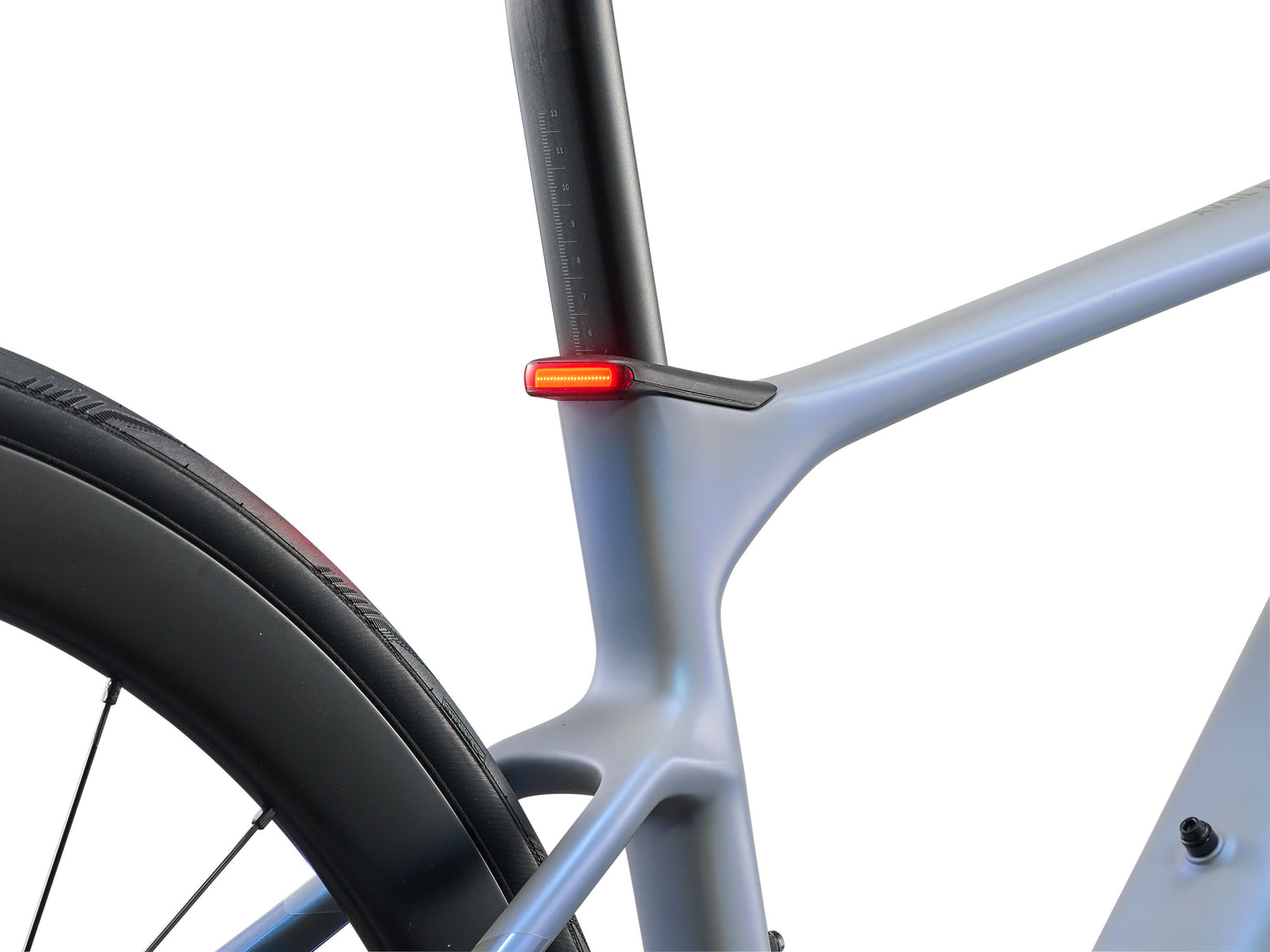

Seatpost clamp integrated tail light
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
