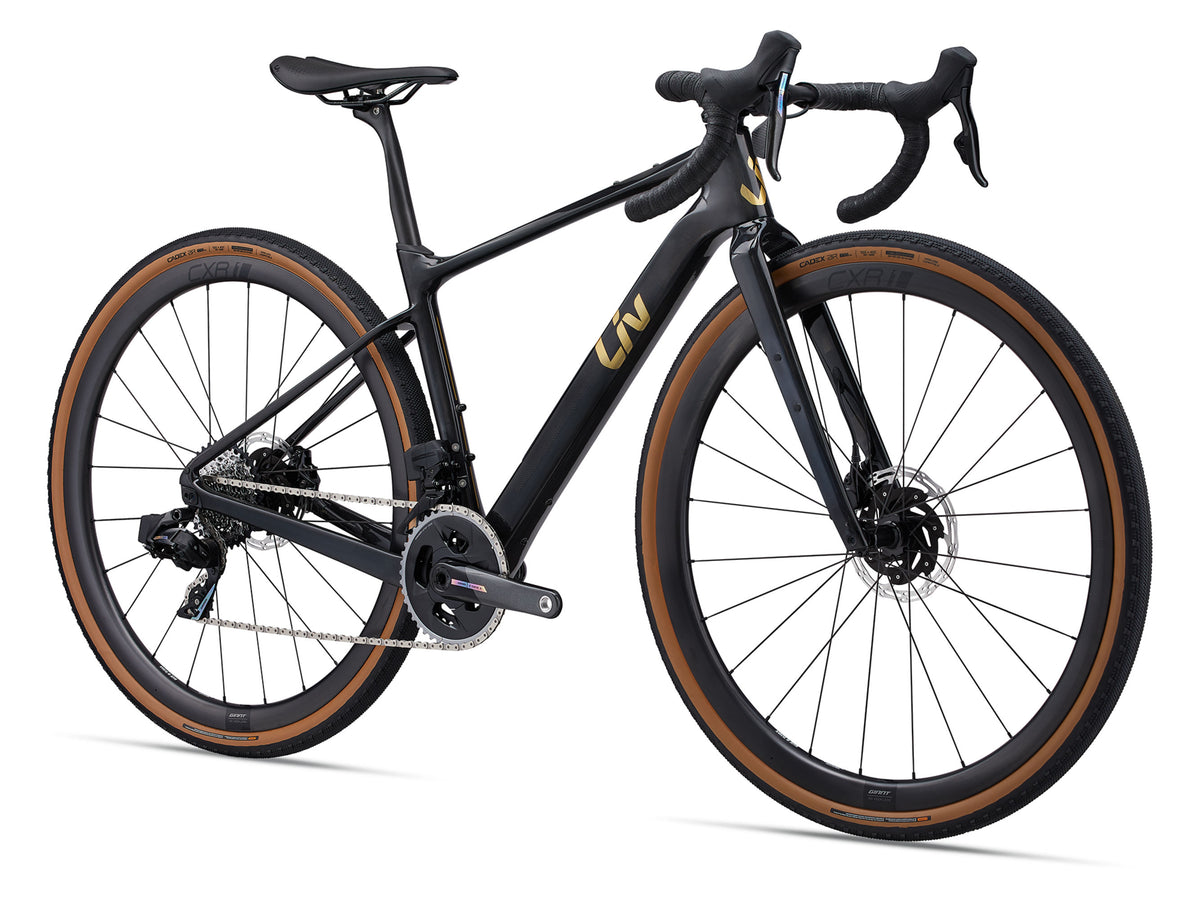

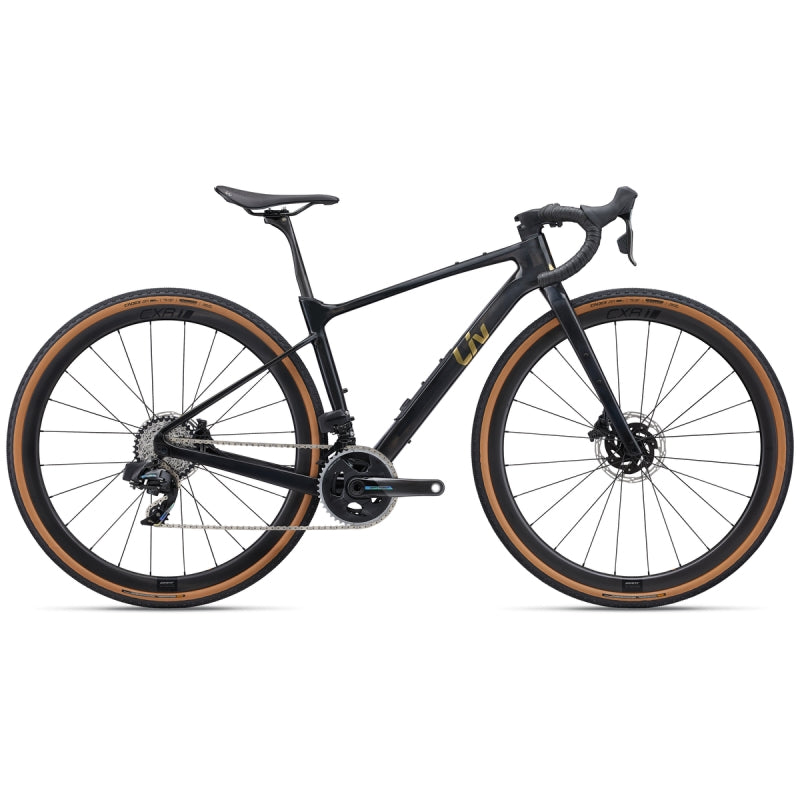

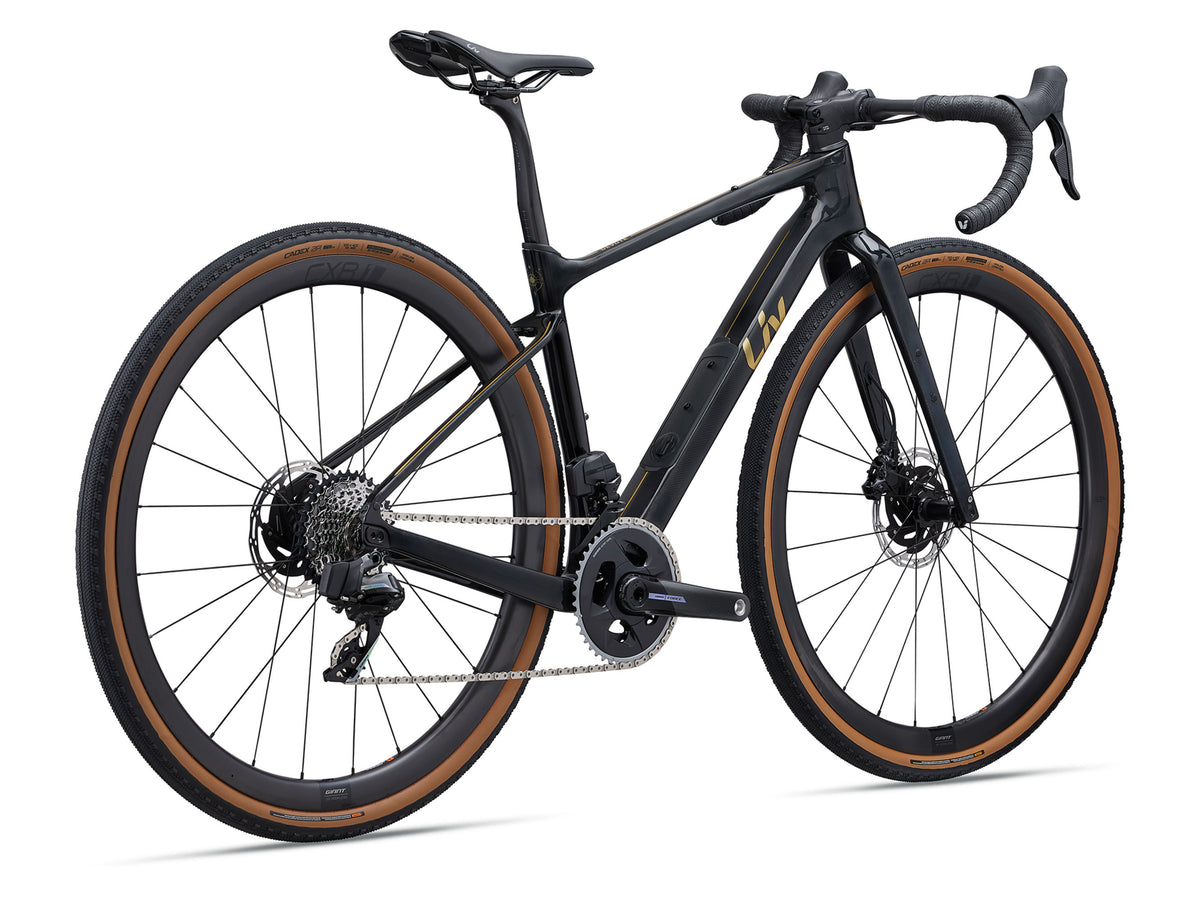

Liv Devote Advanced Pro 2024

$8,299.00

Colour

Carbon / Chrome

Size

LARGE

Product variants

Loading locations...

geometry

specs

highlights

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

XS
SHORT | LONG

S
SHORT | LONG

M
SHORT | LONG

L
SHORT | LONG

A SEAT TUBE LENGTH (mm)

390

420

465

500

B SEAT TUBE ANGLE

74.5° | 74.4°

C TOP TUBE LENGTH (mm)

525 | 525

535 | 535

545 | 545

555 | 555

D HEAD TUBE LENGTH (mm)

110

140

160

E HEAD TUBE ANGLE

70.0° | 69.9°

70.5° | 70.4°

71.0° | 70.9°

F FORK RAKE (mm)

G TRAIL (mm)

78.4 | 82

75 | 78.5

71.6 | 75.1

71.6 | 75

H WHEELBASE (mm)

1012 | 1022

1019 | 1029

1026 | 1036

1043 | 1052

I CHAIN STAY LENGTH (mm)

425 | 435

430 | 440

J BOTTOM BRACKET DROP (mm)

80 | 81

K STACK (mm)

523 | 524

544 | 545

574 | 575

593 | 594

L REACH (mm)

380 | 379

384 | 383

386 | 385

391 | 389

M STAND OVER HEIGHT (mm)

681 | 688

708 | 715

748 | 755

779 | 786

O STEM LENGTH (mm)

P CRANK LENGTH (mm)

165

170

172.5

Q WHEEL SIZE

700

Sizes

XS, S, M, L

Colours

Carbon/Chrome

Frame

Advanced-grade composite, 12x142mm thru-axle, flat mount disc, flip chip – dropout, integrated down tube storage, integrated cable routing

Fork

Advanced SL-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Shock

N/A

Handlebar

Giant Contact SLR XR D-Fuse, 31.8mm, 5-degree back sweep, flare drop, composite XS: 400mm, S: 400mm, M: 420mm, L: 420mm

Grips

Liv All Condition

Stem

Giant Contact AeroLight, -10 degree, alloy XS: 50mm, S: 60mm, M: 70mm, L: 80mm

Seatpost

Giant Contact SLR D-Fuse, composite, -5/+15mm offset

Saddle

Liv Approach SL

Pedals

N/A

Shifters

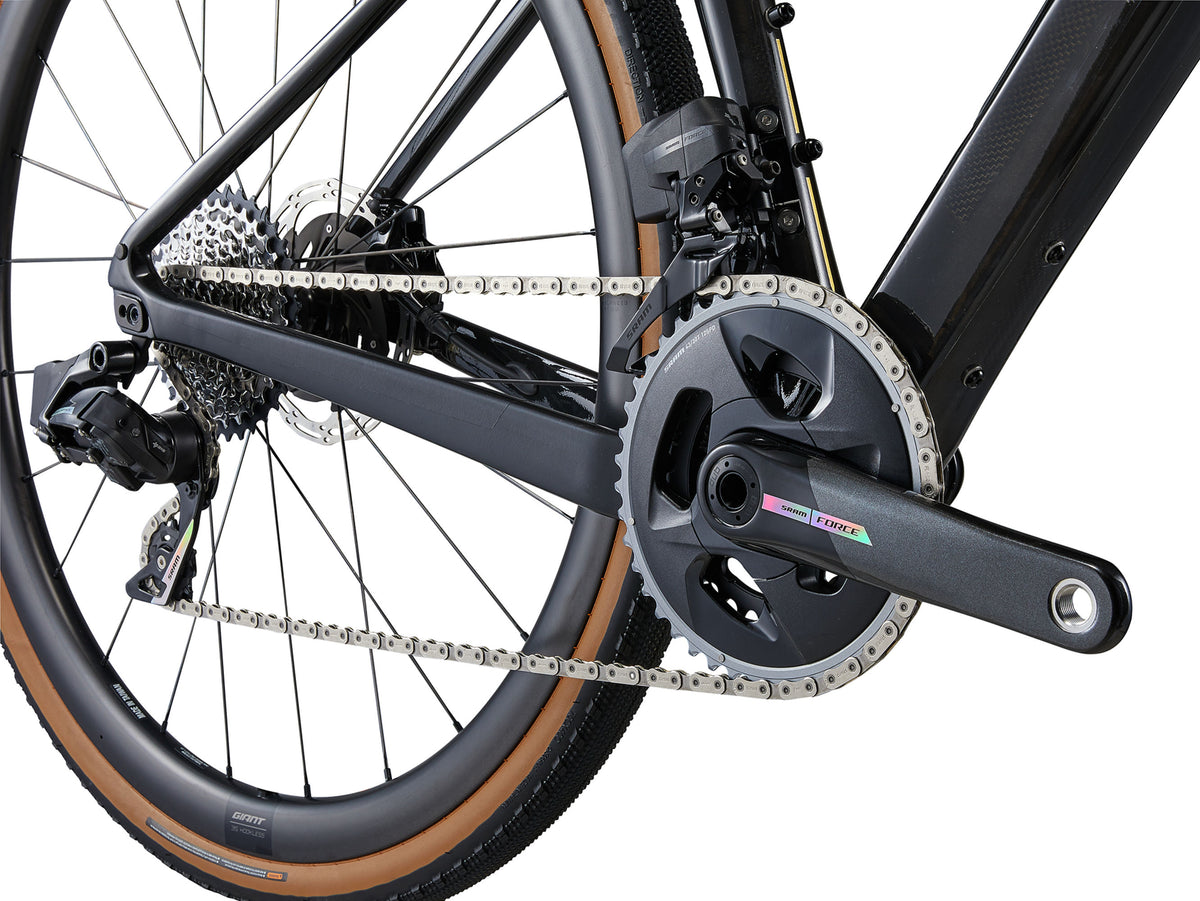

SRAM Force eTap AXS, 2x12

Front Derailleur

SRAM Force eTap AXS Wide

Rear Derailleur

SRAM Force eTap AXS

Brakes

SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]160mm

Brake Levers

SRAM Force eTap AXS hydraulic

Cassette

SRAM Force, 12-speed, 10x36

Chain

SRAM Force D1

Crankset

SRAM Force D2 DUB, 30/43 XS: 165mm, S: 170mm, M: 172.5mm, L: 172.5mm

Bottom Bracket

SRAM DUB, press fit

Rims

Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm

Hubs

[F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle

Spokes

Sapim CX-Ray

Tyres

CADEX AR, 700x40c, tubeless

Extras

53mm max tyre size in long flip chip position, 45mm max tyre size in short flip chip position, tubeless prepared, ISC clamp, integrated down tube storage bag

Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

KEY PERFORMANCE FACTORS

Ultralight Agility

An ultralight Advanced-grade composite frame and new Advanced SL-grade composite fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.

Superior Compliance and Control

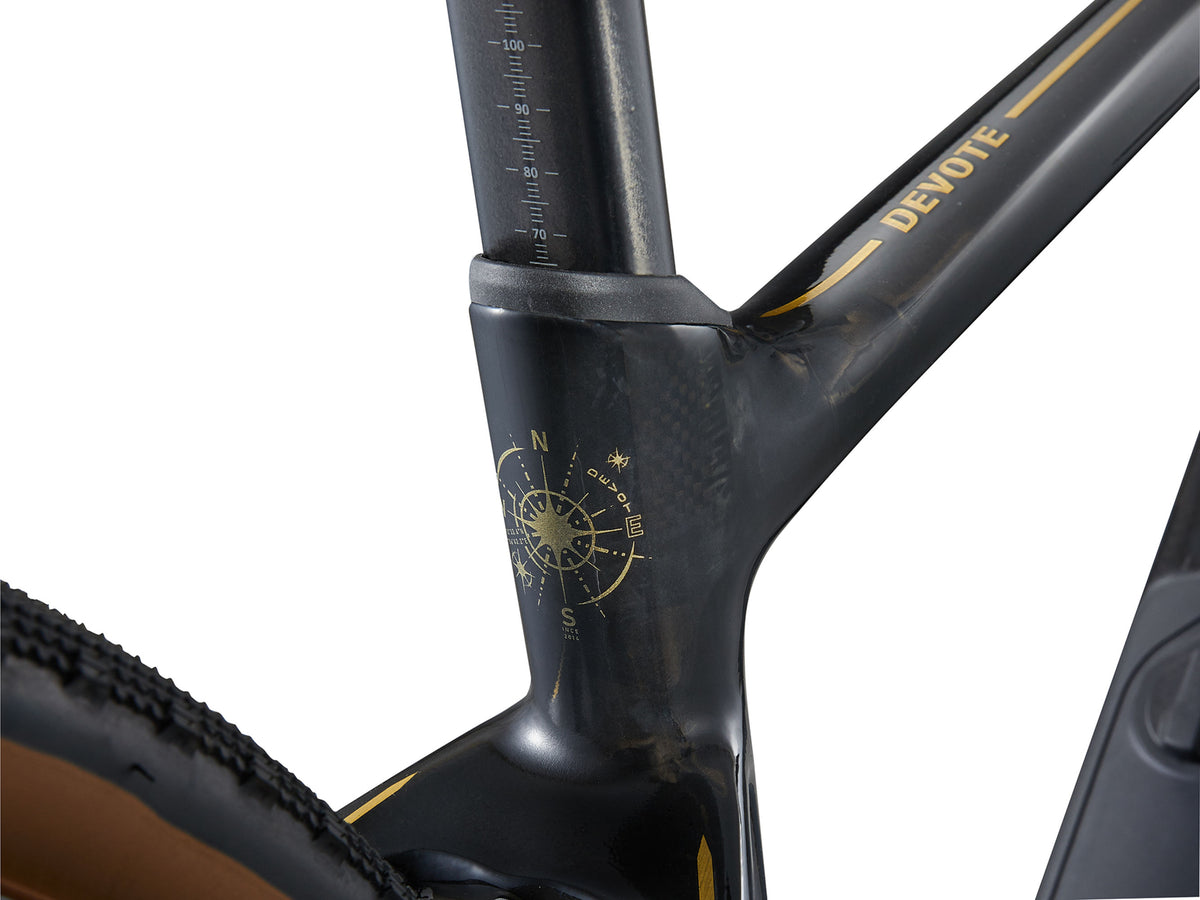

The Contact SLR XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. The Contact SLR D-Fuse seatpost can be swapped out for a 30.9mm or 27.2mm round seatpost. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.

Unmatched Versatility

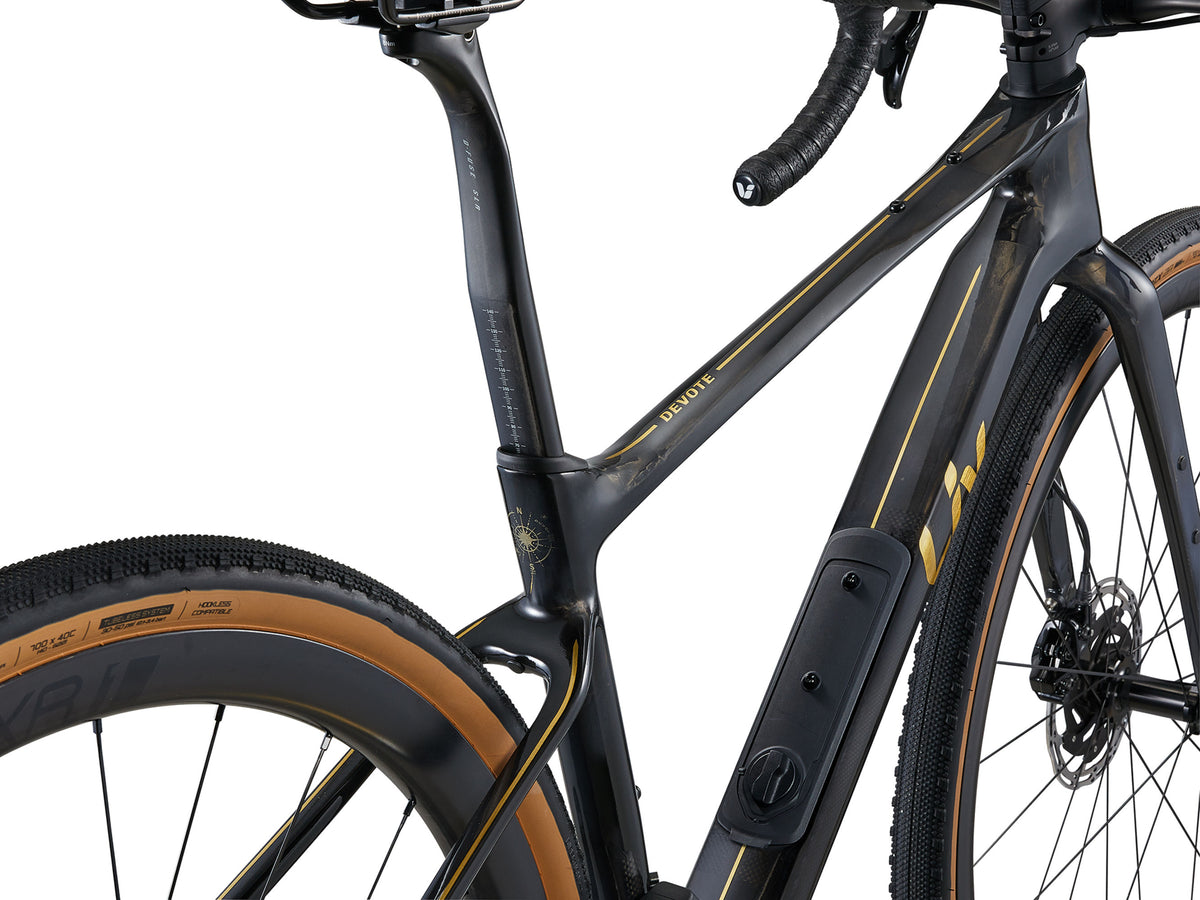

Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tyre clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tyres and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.
