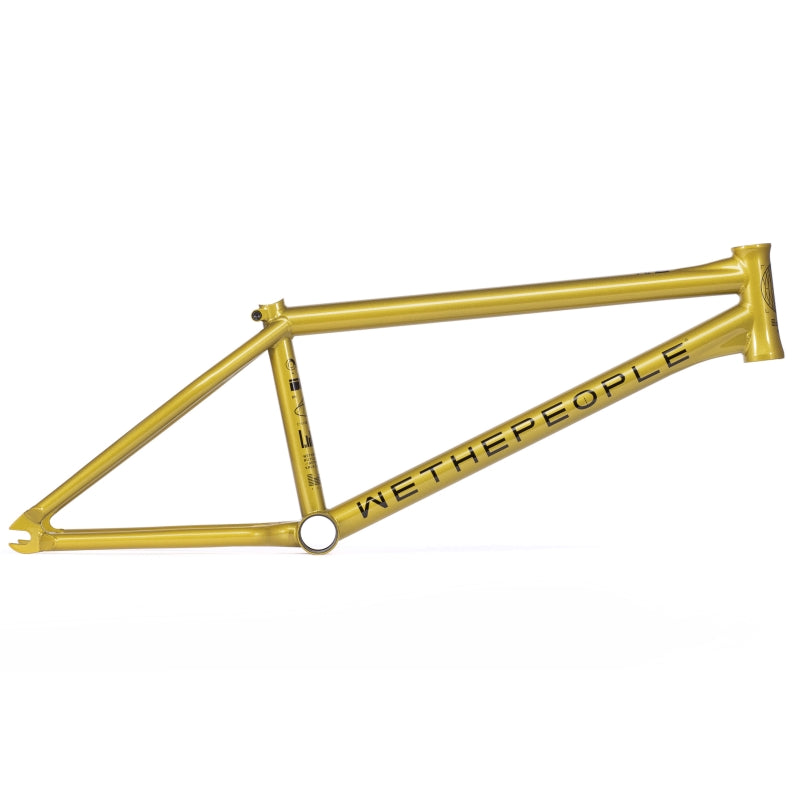

Wethepeople Network Dan Kruk 20.8 Frame

One of the most progressive bmx frames WTP have ever made, Dan Kruk's signature network frame has been tested in the lab and in the streets for a solid year to prove it can handle the technical ferocity and all-out war dan put's his bike through. Dan wanted a shorter 12.5' chain stay and updated geo from the battleship frame, making the network one of the most responsive and agile bmx frames to date. Utilizing their new invest casted yoke for improved stiffness and tire/sprocket clearance, the network frame really is a frame from the future. Includes our lifetime guarantee.

Features
- 127mm tall head tube for less spacers with an uncut fork
- Investment cast seat stay bridge
- One of the most responsive and technical bmx frames ever made
- Super short 12.5" chain stay
- Unique investment cast chain stay yoke for improved tire and sprocket clearance
- Oversized 20.5mm seat stays for increased stiffness and durability
- Larger 1.8mm welding at head tube
- Wider rear triangle allows clearance for a 2.4" tire
- Hydroformed top tube and down tube for superior strength and stiffness
- 6mm seat clamp bolt
- Includes lifetime guarantee

Specifications

Tubing - butted, japanese seamless 4130 crmo tubing
Bottom bracket - 74mm mid size, cnc machined and heat-treated
Head tube - 127mm cnc machined and heat-treated, integ. H/set
Dropouts - laser cut and cnc machined 6mm, heat-treated 4130 crmo, perfect shape for pegs and hub guards
Brakes - brakeless frame
Weight - 2.54kg -20.5" tt

Geometry

Top tube length - 20.5", 20.8" or 21.1"
Chain stay length - 12.5" - optimized for 12.5" w/25-9
Head tube angle - 75.75degree
Seat tube angle - 71degree
Bb height - 11.8"
Standover height - 9.15"
